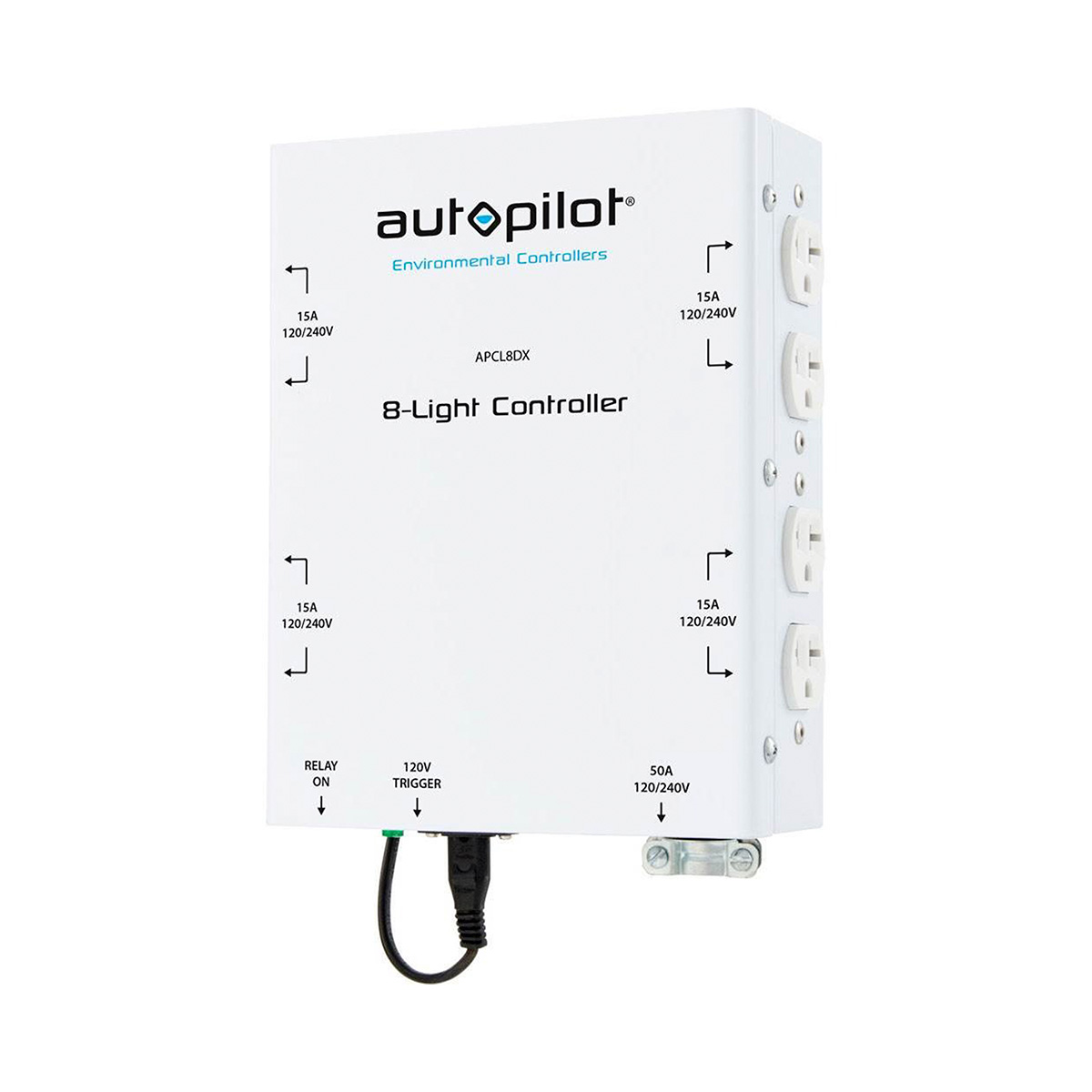

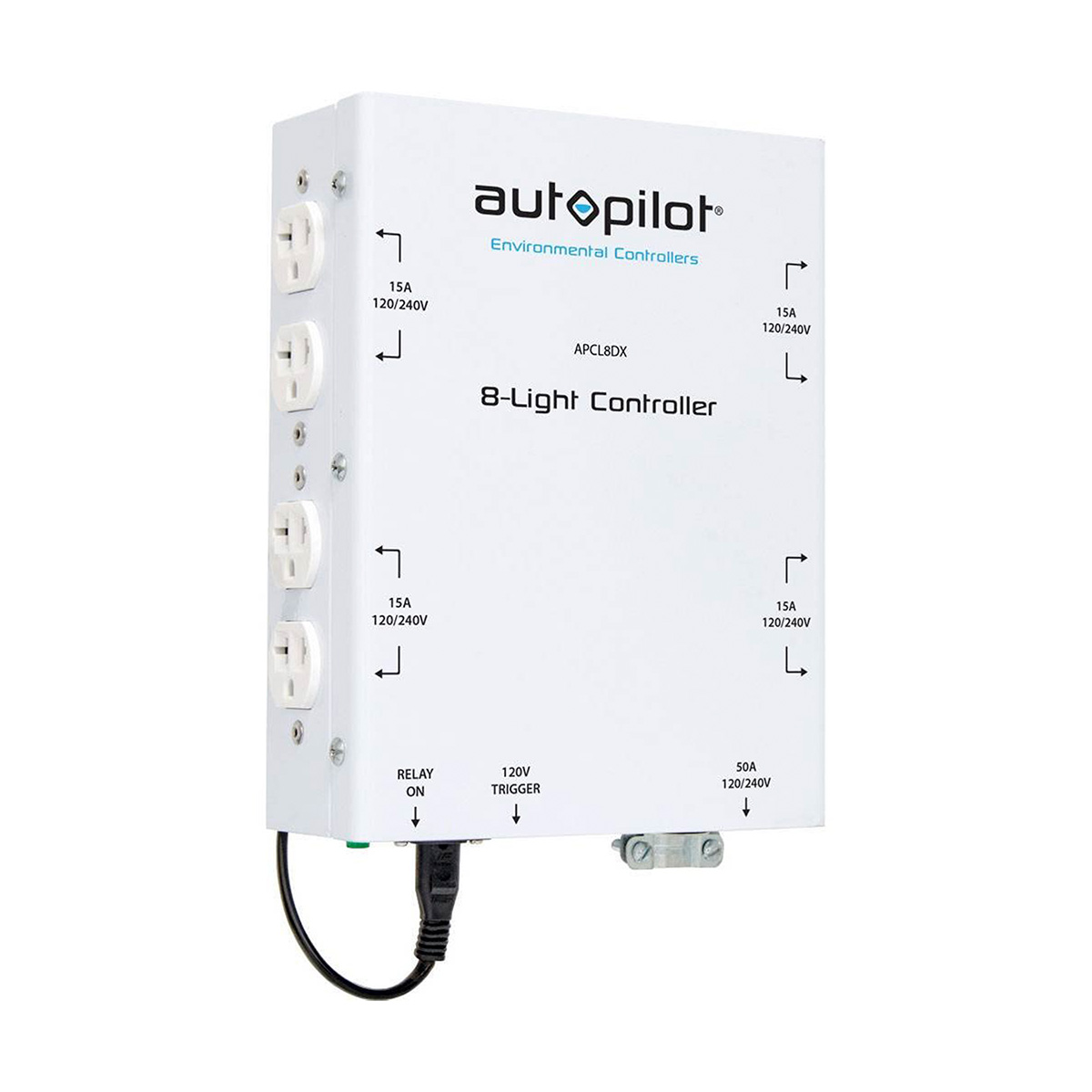

Autopilot 8-Light HID Lighting Controller




The Autopilot 8-Light HID Controller controls up to 8 lights to a single timer or controller device. The light controller features 8 x-style outlets that allow for ballast to run at either 120 or 240v operation so you don’t have to change out cords. The 8 outlets are controlled by a detachable 120v trigger cable that hooks up to a timer or controller of your choice. Requires electrical installation to operate, consulting with a licensed electrician or professional installation recommended.

  • Includes: Light controller, trigger cable, and user manual
  • Rated for 60 amps at 120/240
  • 8000 Watt, 8 light controller

Only 2 left in stock

Your Garden's Success is our #1 Priority

HTG Supply is committed to providing you with the very best products, pricing and service in the industry. We will ship your order fast and discreetly packaged to protect your privacy. Buy with confidence knowing your HTG Supply purchase includes simple returns as well as lifetime product support. Call our team of real growing experts with your purchasing or product use questions, and we will be here to help!

See it for less somewhere else? Give us a call and we’ll beat any online competitor’s price!

Customer Service:  1-866-710-GROW (4769) | | Hours: Mon-Fri 9:00 a.m. to 5:00 p.m.


Autopilot 8-Light HID Lighting Controller

Control up to eight lights from one timer or controller device. 240V power is wired directly into the eight-outlet timer box, and all of the outlets are controlled by one detachable 120V trigger cable. Rated for 60 amps at 120/240 with eight 120/240V X-style receptacles. The light controller is backed by a hassle-free 3-year warranty.

APCL8DX has eight 120/240-volt style outlets which allow running your ballasts at 120/240 volts without having to change out your ballast power cords.


  • 8000 Watt, 8 light controller

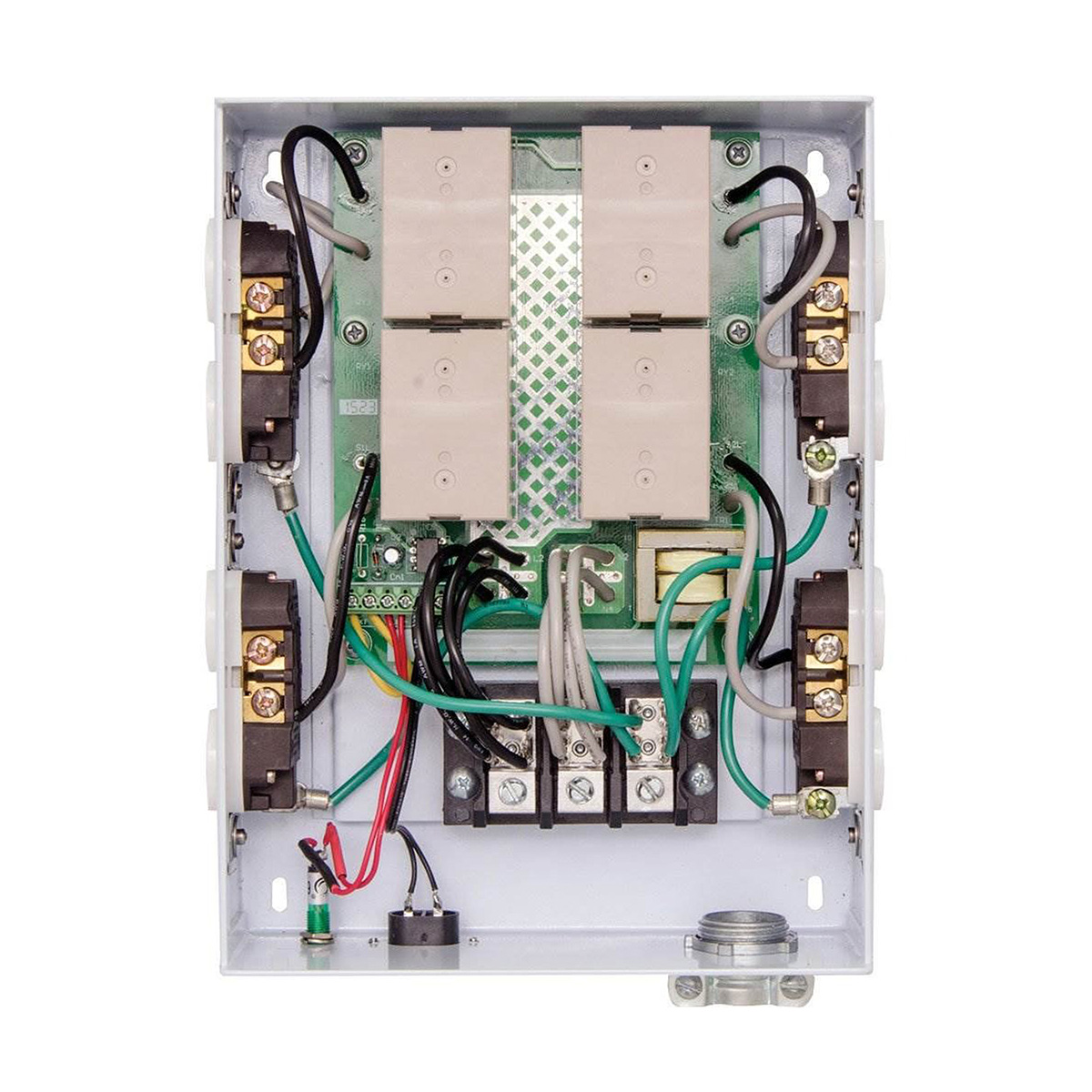

  • Premium quality industrial-grade relays
  • Durable steel enclosure
  • X-style outlets allow 120V or 240V ballast operation
  • 60 Amp maximum (30 amps x 2 relays)

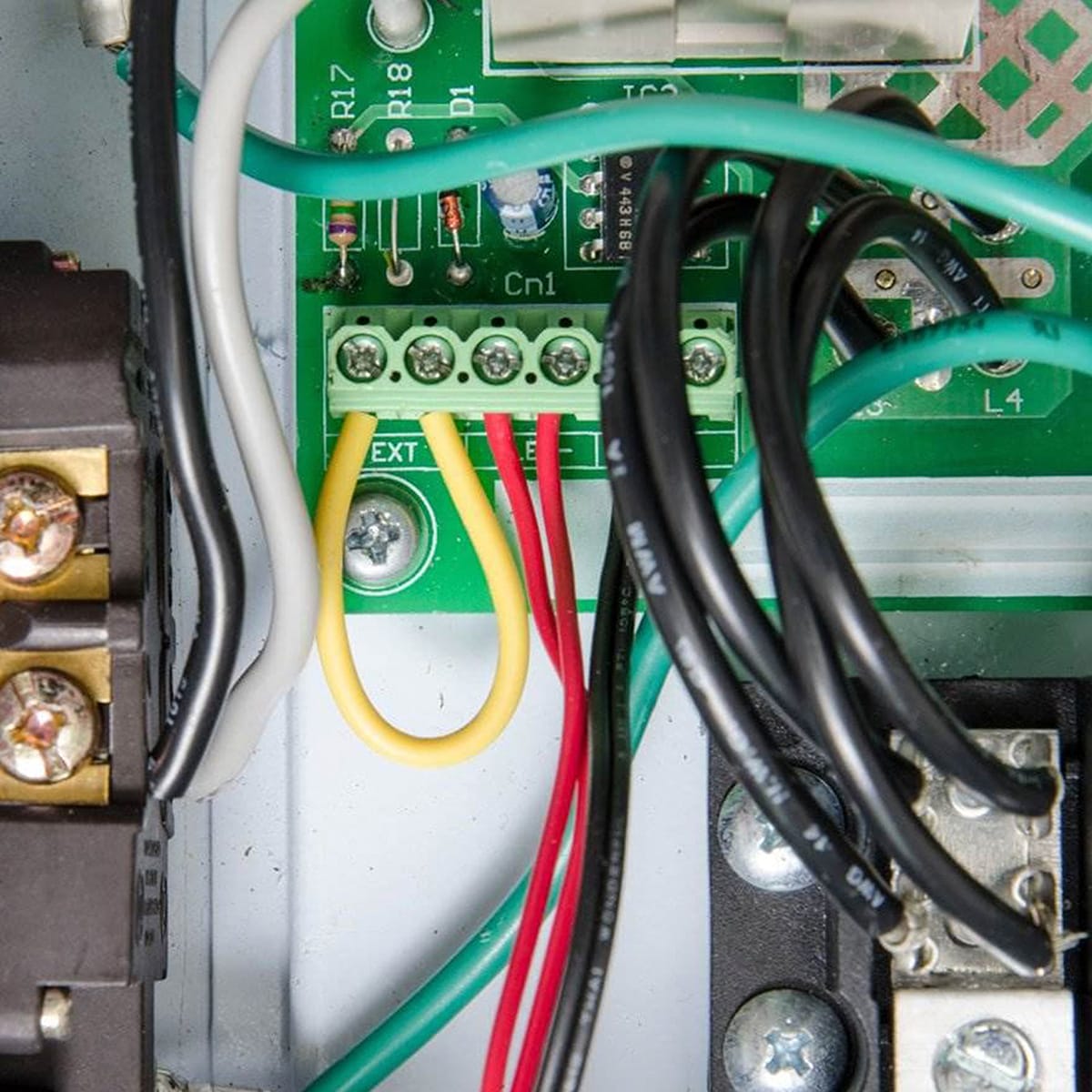

  • 120V trigger cable

Technical Specifications:

  • Main Power Voltage: 120 OR 240 volts
  • Receptacle Type: 8 Nema 5-15, Nema 6-15 or universal
  • Maximum Lighting Wattage: 8000 watts / 1000 watts per outlet
  • Maximum Relay Amperage: 30 amps(x 2 relays)
  • Operating Temperature Range: 32-110° F
  • Operating Humidity Range: 0-99% RH non-condensing
  • Minimum Relay Operations: 100,000 @ full load

View Autopilot APCL8DX Instructions & Warranty

Weight 5.4 lbs
Dimensions 8 × 10 × 4 in
