FloroFresh 424 6″ XXL Germicidal UV Fan & Filter Kit



The FloroFresh 424 6" XXL Fan & Filter Kit includes everything you need to equip your modular ventilation system with enhanced germicidal capabilities. This all-in-one odor control, ventilation and germicidal system includes the FloroFresh 424 fixture, AgroMax Germicidal UV lamps, 6" high-velocity fan, and GrowBright 6" XXL carbon filter, as well as necessary duct and fittings. Air is exposed to the UVC light within as it is pulled through the filter, further purifying the air and protecting from pathogens.

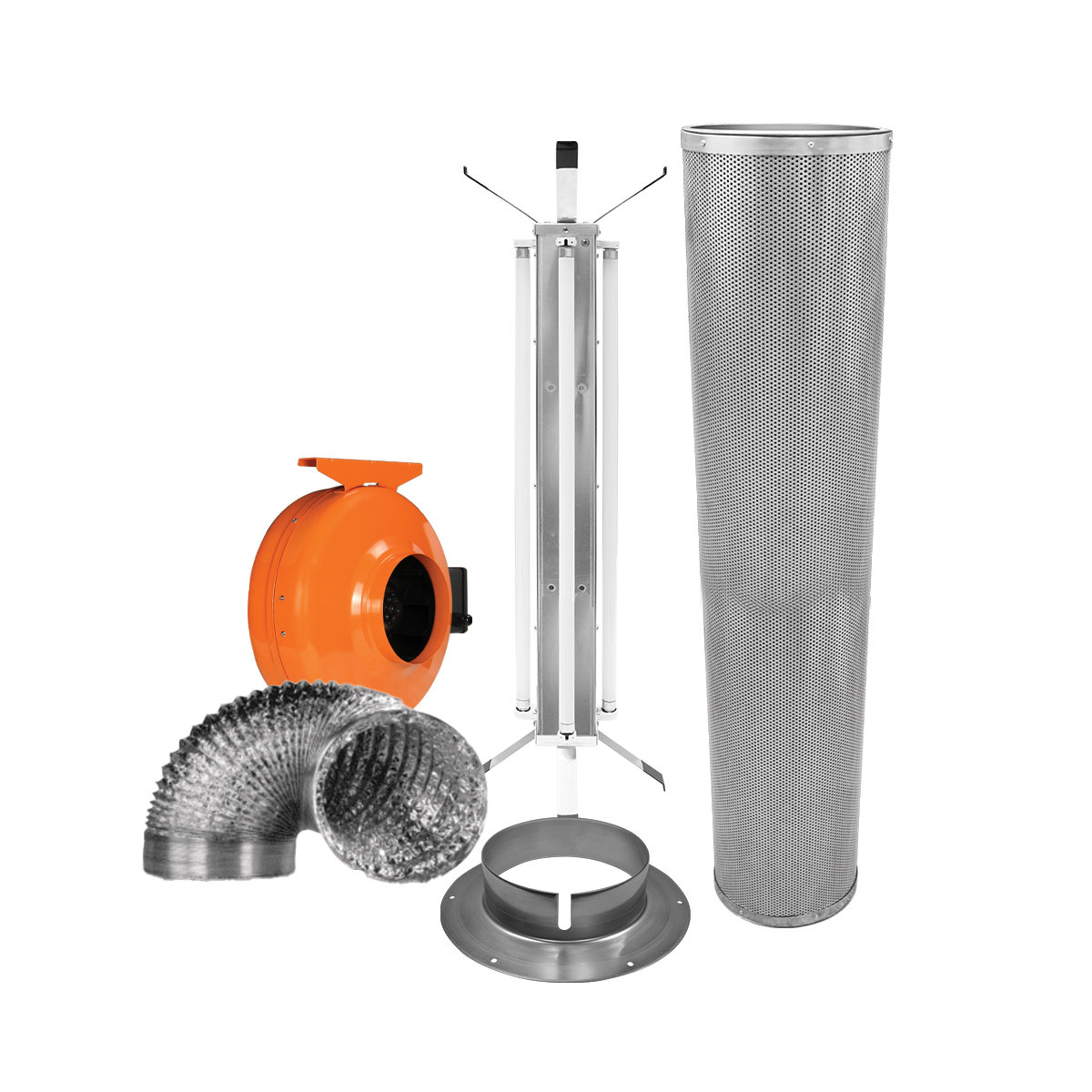

  • Kit Includes: FloroFresh 424, 6" XXL Carbon Filter, 6" High Velocity Fan, (4) AgroMax Germicidal UV-C Lamps, 6" flex ducting - 1', pair 6" vent clamps
  • Electrical: 206 watts (total), 1.7 amps @ 120v
  • Odor and germicidal UVC filter in one unit
  • All-in-One kit

More Info

Insufficient stock



FloroFresh 424 6″ XXL Fan & Filter Kit with Germicidal UV

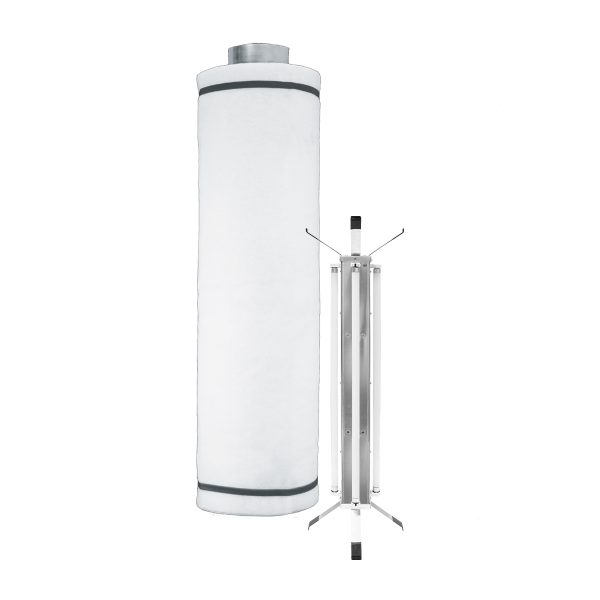

The FloroFresh 424 6″ XXL Fan & Filter Kit is a fresh take on grow room cleanliness, adding UVC filtration to the already powerful GrowBright Tall Boy Carbon Filter. What makes this carbon filter kit special is the addition of the FloroFresh 424! By putting a high-output germicidal UVC fixture inside a regular carbon filter, pathogens and room odor are controlled simultaneously. UVC light kills the vectors being pulled through the carbon filter by destroying their DNA. All UVC light is contained to the inside of your carbon filter, so there’s no need to worry about the health of adjacent plants.

Kit Features & Specs

  • Kit Includes: FloroFresh 424, 6″ XXL Carbon Filter, 6″ High Velocity Fan, (4) AgroMax Germicidal UV-C Lamps, 6″ flex ducting – 1′, pair 6″ vent clamps
  • Powerful UVC Air filtration
  • Included carbon filter for easy installation
  • Electrical: 96 watts, 0.8amps @ 120v

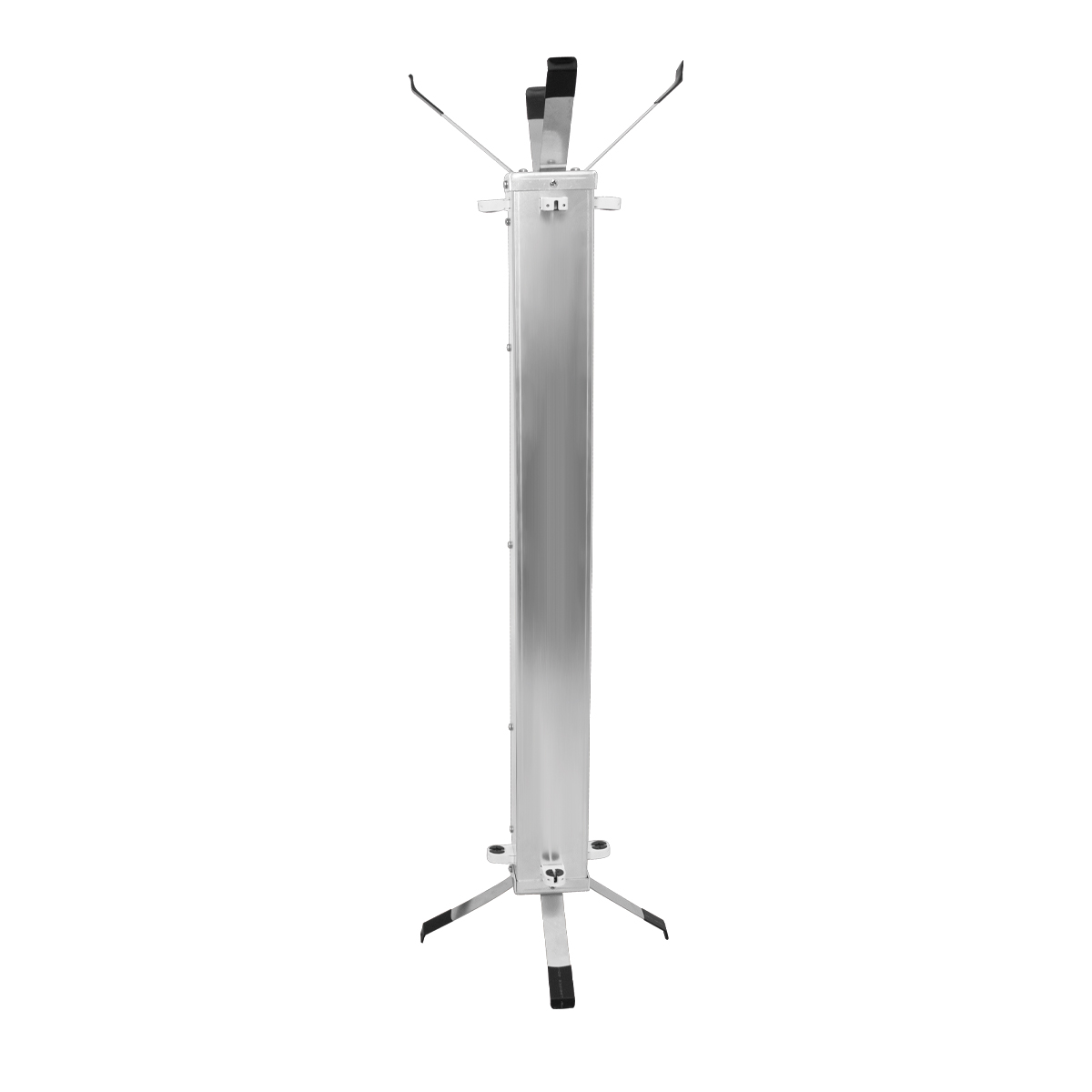

  • Use Only With: AgroMax 2′ T5 HO Germicidal UVC Bulbs
  • Adjustable design fits inside of most 2′ Carbon Filters
  • Sanitizes air with germicidal UVC light
  • Helps prevent pathogen issues

View Fixture Instructions & Information Sheet

Fan Specifications

    • 424 CFM (cubic feet per minute)
    • Solid Steel Construction
    • ELT Listed for Safety
    • Mounting Bracket included
    • Grounded Power Cord (plugs into a standard household outlet)
    • Quiet (52 db)
    • 2500 RPM

Filter Specifications

    • 265-425 CFM
    • Weight: 17.65 lbs
    • Flange: 6″
    • Diameter: 9.5″
    • Length: 37.5″

What is UVC Light?

UVC, or Ultraviolet C, is a non-visible wavelength of short-wave light radiation, falling between 100-280nm on the light spectrum. It is used primarily for germicidal applications, where UVC light exposure effectively neutralizes viruses and other pathogens. While UVC emitted from the Sun is almost entirely blocked by Earth’s atmosphere, specialized lighting technology is able to reproduce the 100-280nm spectrum.

For more information on the AgroMax Lamps used, visit Agromax.com.


Biological Effect of UV Light
While UVB radiation is widely recognized for its harmful effects on human skin and links to skin cancer, each of the UV bands (UVA, UVB and UVC) create different risks for humans.

UVC radiation refers to wavelengths shorter than 280 nm. These wavelengths are entirely absorbed by our atmosphere and no natural UVC radiation reaches the surface of the earth. These wavelengths are available to us through artificial sources.

In instances of prolonged direct exposure to UVC light, temporary eye and skin damage has been exhibited, such as cornea injury (sometimes referred to as “welder’s eye”) although this generally heals after a couple of days. Therefore, safety recommendations with UVC LEDs include protecting skin (in particular open wounds) and, most importantly, the eyes from UVC radiation.

Personal Protective Equipment (PPE)

UV radiation is easily absorbed by clothing, plastic or glass. Once absorbed, UV radiation is no longer active. When working with open UV radiation during maintenance, service or other situations, personal protective equipment covering all exposed areas is recommended. When working around UVC devices, one should:

Use UV goggles and/or full-face shields.

Prescription glasses and normal safety glasses do not protect eyes from UV exposure, so ANSI Z87 rated eyeglasses with wrap around lens to protect the side exposure is recommended. Consult with ANSI Z87 manufacturers for proper UV exposure protection equipment.

Cover any exposed skin using lab coats, nitrile gloves or other lab attire.


Weight 55 lbs
