The ‘e’ in ‘e-series’ stands for external control. These fixtures can be controlled centrally by a Gavita Master controller. This replaces the often cumbersome installation with contractors and clocks and adds safety features such as automatic dimming of your lights at high temperatures and even a safety shutdown. Gavita improved the electronics and changed the way the ballast is built, by mounting the PCB and warm components directly on the heat sinks instead of in a ballast bracket. The much cooler electronics result in greater reliability and longer life. The new design of the housing even increases that effect.
Out of stock

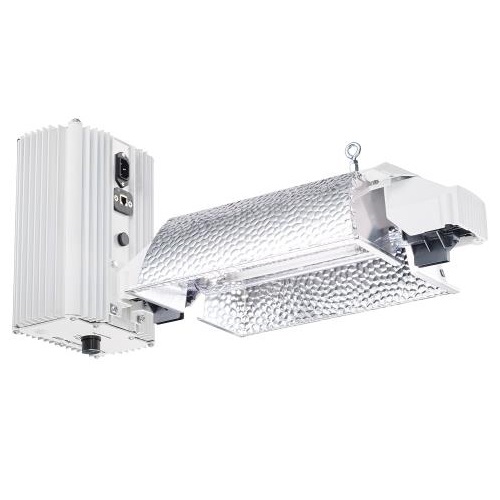

The Gavita Pro 1000 e-series DE is the new e-series flagship model. Together with the Pro 1000e DE Gavita also introduces its Pro plus 1000W Electronic lamp, with 2100 umol s-1 output. Up to 80 Gavita Pro 1000 e-series fixtures can be controlled by a Gavita Master controller without the need for timers and contactors. All e-series fixtures are plug and play installable and come with the control cords to daisy chain them to the controller. The Gavita Pro 1000 E-series can light 21 sq ft with 1000 µmol s-1 m-2. System includes; Gavita Pro 1000e fixture, Gavita Pro electronic DE lamp, power cords, (2) RJ14 controller cables and a T-splitter for plug and play installation, user manual, 3-year system warranty, and 1-year lamp warranty.
Complete fixture: The integration of ballast and reflector results in a compact fixture. No external lamp wires result in low EMI, which makes it easier to comply with FCC regulations. All our fixtures are FCC compliant.
Horticultural design: Our fixture is not a contraption of a remote ballast and reflector: it is a fixture designed as a complete fixture. The high-quality white coating is durable and UV resistant. All the terminals are sealed with gaskets and contact and terminals are high quality.
400V lamp technology: The high voltage lamp technology results in better efficiency of the arc tube: more light for the same power (10-25% more than traditional single-ended lamps)! These lamps are best suited for extreme high-frequency electronic ballasts, creating a stable arc without acoustic resonance, assuring optimal output and long lamp life. The smaller arc tube and outer balloon require the lamp to be nitrogen filled instead of vacuum, which prohibits it to be air cooled. Air cooling of the lamp results in lower lamp temperature, which results in sub-optimal light output, up to 15% less than specified. Therefore these lamps are not suitable for direct air-cooled fixtures.
FEATURES & BENEFITS
• Professional double ended HPS fixture
• Comes with a Gavita Pro Plus 1000W 400V DE EL lamp
rated at 2100 μmol s-1
• Highest output and efficacy in the market (A++ energy label)
• Suitable for Gavita Master Controller
• Plug-and-play installation
• Control range 50-115%
• Lights more than 2 square meters with 1000 μmol m-2 s-1
SPECIFICATIONS:Input Voltage: 120-240V (± 10%)
Input Voltage 1: 120 V
Input Current 1: 9.25A (at 100%) 10.6A (at 115%)
Input Power 1: 1085W (at 100%) 1240W (at 115%)
Input Voltage 2: 240 V
Input Current 2: 4.6A (at 100%) 5.3A (at 115%)
Input Power 2: 1055W (at 100%) 1210W (at 115%)
Power Factor: 0.95 – 0,98
Input Frequency: 50-60Hz
Input Connection: IEC C14
Adjustable: 600/750/825/1000 /1150W/EXT
External dim: Gavita Master controller analog protocol (<11,5V)
External dim connector: 1 x RJ14 connector build in (6P4C)
Article Number: 22.214.171.124.20
EAN code: 8718403053333
|Ballast Component Type|
|Lamp Drive Frequency|
