PHX pH/ORP Monitor & Controller with Probes

$479.00$897.00

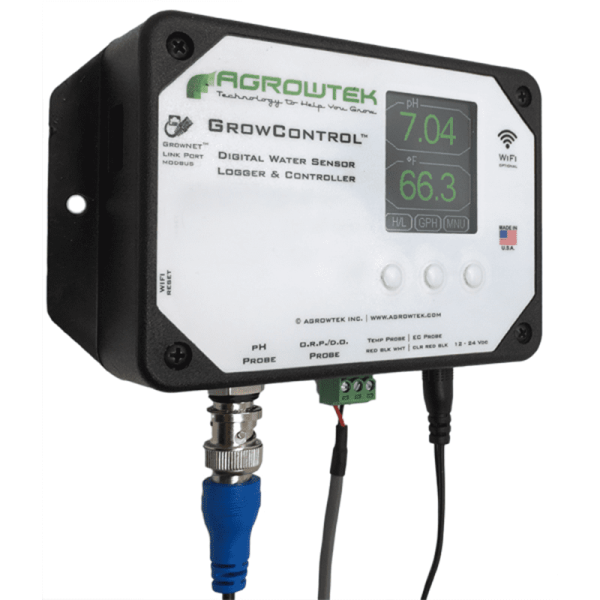

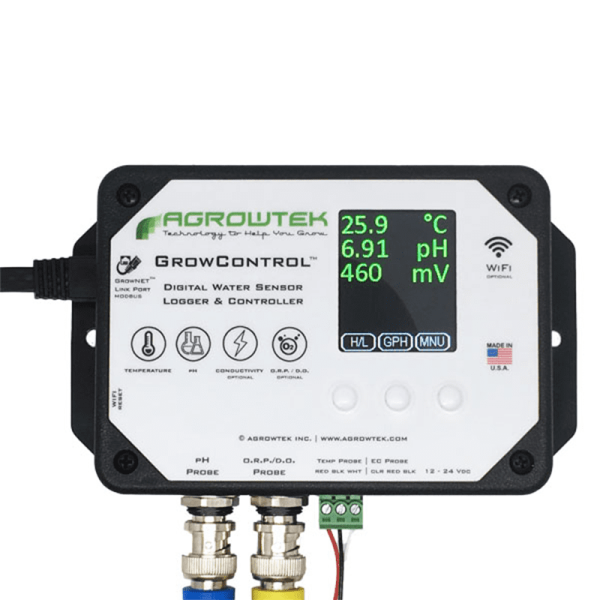

GrowControlTM PHX+ precision digital pH and ORP sensor transmitter, data logger and mini-controller for pH, ORP and temperature. Ideal for applications such as aquarium and aquaponics, pool & spa or industrial/commercial chemical process monitoring and control.

Clear

Description

Optional color display and 3-button interface make this unit capable of operating stand-alone for sensor monitoring, alerts, dosing pump control and more. Precision digital electronics with isolated probe inputs accurately read and record sensor data. Internal memory logs 21,600 data points per sensor for months or years of storage. Accurate real-time-clock with battery backup keeps log time accurate during power outages. Optional color display screen features large, bright green sensor readings for easy visibility, plus a range of functions that can be performed directly from the menus including:

  • High/low history
  • Graphical history
  • Alarm set points
  • Sensor calibration
  • Data logging options


Sensing | Logging | Transmitting | Monitoring | Dosing

icon Water Temperature: -20 – 60°C

pH: 0-14 pH

O.R.P. or D.O.: +/-1000mV / 0-20mg/ml

Documents

download Data Sheet

download Installation Manual

download MODBUS Manual

Videos

download Setup & Operation Instructions

Options

LCD Display
Add the LCD display/button interface option for large, bright color sensor readings and menus for on-board calibration, alarms, graphing and even dosing pump control!
icon LX1 USB AgrowLINK
Connects the GrowNET port of any Agrowtek sensor to a PC for datalog download to .csv, graphing, calibration, configuration, updates, and more using free PC software.
icon LX2 RS-422/485 ModLINK
Connects the GrowNET™ port of any Agrowtek sensor to RS-422/485 for MODBUS RTU.
icon WiFi Module
Upgrade the SXE sensor to include a WiFi module for access to the system via a phone or web browser (coming soon.)

Applications

icon Greenhouses & Growing Facilities

Aquarium, Aquaponics

icon Analytical, Research & Academic

Pool & Spa

icon Industrial Process Monitoring

icon OEM & custom applications

Additional information

Weight 10 lbs
Model

PHX temperature/pH, PHX temperature/pH+ORP, PHX temperature/pH+DO
