PureScrub 4′ Germicidal UV Light System

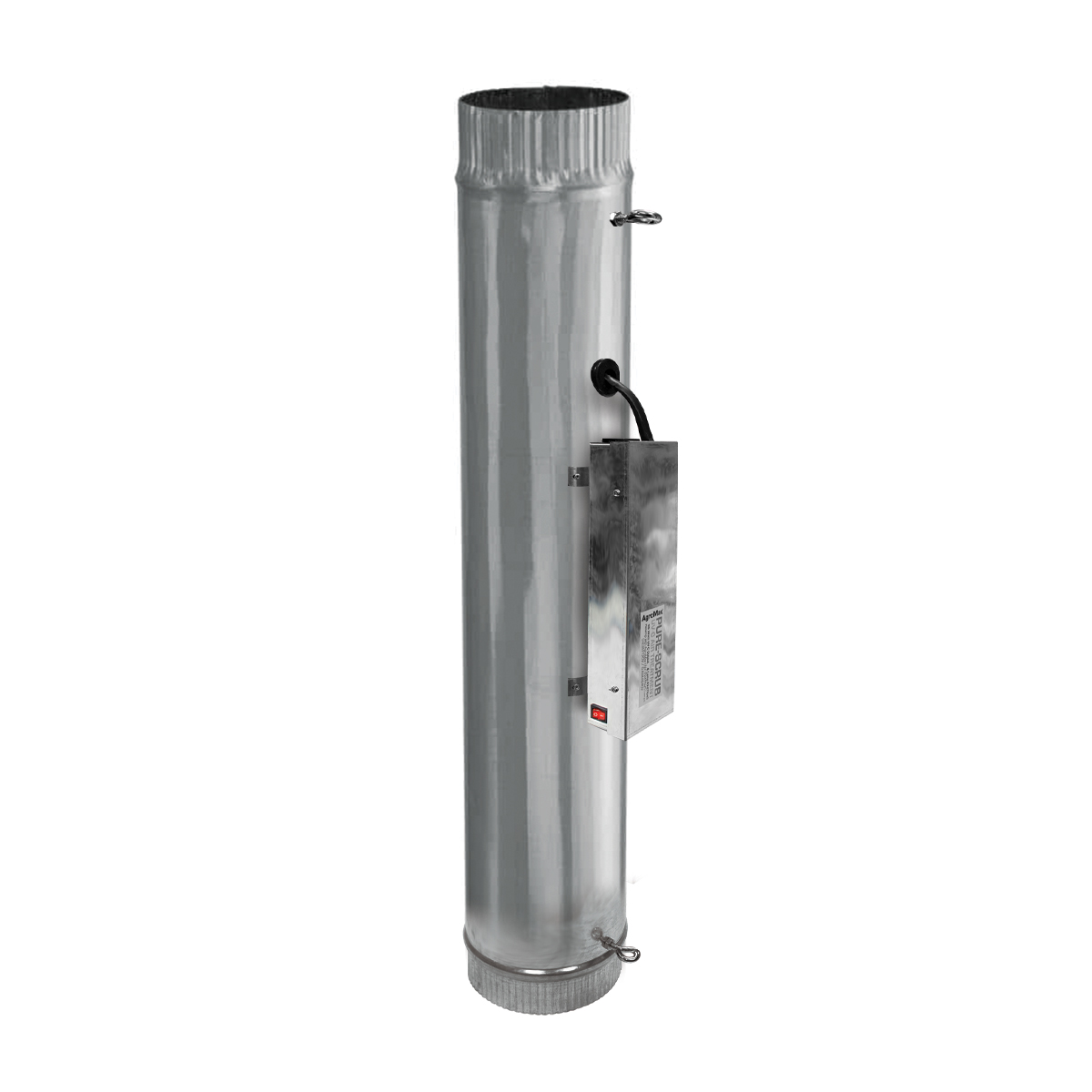

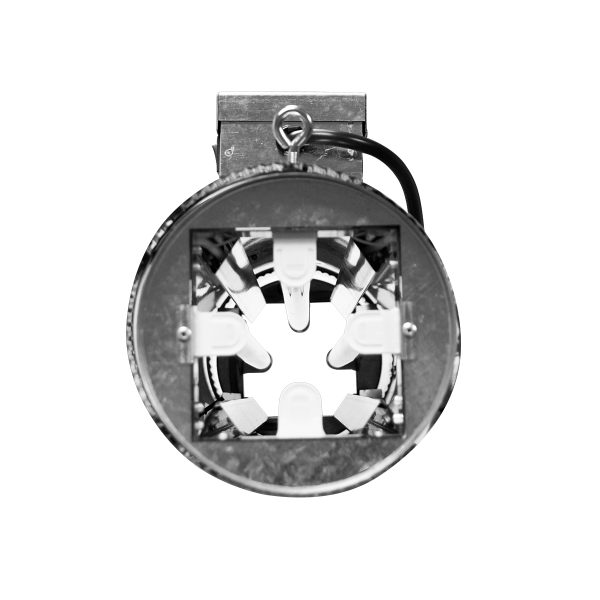

AgroMax PureScrub UV-C 4' is a UVC air purification system designed to integrate easily into existing ventilation. The system features a rigid duct housing with standard 6" duct connection, and an internal light fixture that powers the UVC lamps. This design quickly neutralizes pathogens by exposing them to a concentrated dose of UVC light as air is passed through the chamber. Each system includes (4) AgroMax Germicidal UVC bulbs, and comes prewired with a 120v grounded power cord.
- Self-Contained Germicidal UVC Light Output
- Helps neutralize garden contaminates
- 6" Diameter, Fits 6" Ducting
- Measures 47.375" x 6" x 8.5"
- Electrical: 96 watts - 0.8amp @ 120v
- 10' 120v grounded power cord
Overview
AgroMax PureScrub UV-C 4′ Germicidal UV Light Fixture for Ventilation Systems
AgroMax’s new PureScrub UVC air purification system is the first line of defense against pathogens in your air. Utilizing concentrated doses of Ultraviolet-C (UVC) light, the PureScrub is able to rapidly disinfect air flowing through it’s internal light chamber. This unit is designed to integrate seamlessly into 6” ducting or be used as a stand-alone filter, with easy attachment flanges on both ends. Reducers and enlarges can be used to fit the PureScrub with larger ducts. PureScrubs can also be daisy chained for applications where additional UVC sanitization is needed.
Features & Specs:
- Measures 47.375″ x 6″ x 8.5″
- Electrical: 216 watts – 0.8amp @ 120v
- 10′ 120v grounded power cord
- Self-Contained Germicidal UVC Light Output
- Helps neutralize garden contaminates
- 6″ Diameter, Fits 6″ Ducting
- For use with 6″ inline fans
What is UVC Light?
UVC, or Ultraviolet C, is a non-visible wavelength of short-wave light radiation, falling between 100-280nm on the light spectrum. It is used primarily for germicidal applications, where UVC light exposure effectively neutralizes viruses and other pathogens. While UVC emitted from the Sun is almost entirely blocked by Earth’s atmosphere, specialized lighting technology is able to reproduce the 100-280nm spectrum.
For more information on the AgroMax Lamps used, visit Agromax.com.
WARNING:
Biological Effect of UV Light
While UVB radiation is widely recognized for its harmful effects on human skin and links to skin cancer, each of the UV bands (UVA, UVB and UVC) create different risks for humans.UVC radiation refers to wavelengths shorter than 280 nm. These wavelengths are entirely absorbed by our atmosphere and no natural UVC radiation reaches the surface of the earth. These wavelengths are available to us through artificial sources.
In instances of prolonged direct exposure to UVC light, temporary eye and skin damage has been exhibited, such as cornea injury (sometimes referred to as “welder’s eye”) although this generally heals after a couple of days. Therefore, safety recommendations with UVC LEDs include protecting skin (in particular open wounds) and, most importantly, the eyes from UVC radiation.
Personal Protective Equipment (PPE)
UV radiation is easily absorbed by clothing, plastic or glass. Once absorbed, UV radiation is no longer active. When working with open UV radiation during maintenance, service or other situations, personal protective equipment covering all exposed areas is recommended. When working around UVC devices, one should:
Use UV goggles and/or full-face shields.
Prescription glasses and normal safety glasses do not protect eyes from UV exposure, so ANSI Z87 rated eyeglasses with wrap around lens to protect the side exposure is recommended. Consult with ANSI Z87 manufacturers for proper UV exposure protection equipment.
Cover any exposed skin using lab coats, nitrile gloves or other lab attire.
