Replacement Diaphragm Kit for Supreme Hydroponics AP-40

$9.95

$15.56
SAVE $5.61 (36%)
SKU: HYC-SUP-APDK040

The Danner Diaphragm Kit provides all the replacement parts you need to extend the life and performance of Danner AP-40 models, including the Supreme Hydroponics AP-40 Air Pump. Each kit comes with a variety of replacement parts including a diaphragm, flapper valves, plastic slip washers, and a bottom pressure chamber gasket.

More Info

Out of stock

Tag:
Share:

Overview

Diaphragm Kit for Supreme Hydroponics AP-40

Replacement Diaphragm Kit for Pondmaster AP-40 Air Pump Item# 04540, Supreme Aquarium Oxy-Flo AP-40 High Volume Air Pump Item# 04240 and Supreme Hydro Oxy-Flo AP-40 High Volume Air Pump Item# 40524

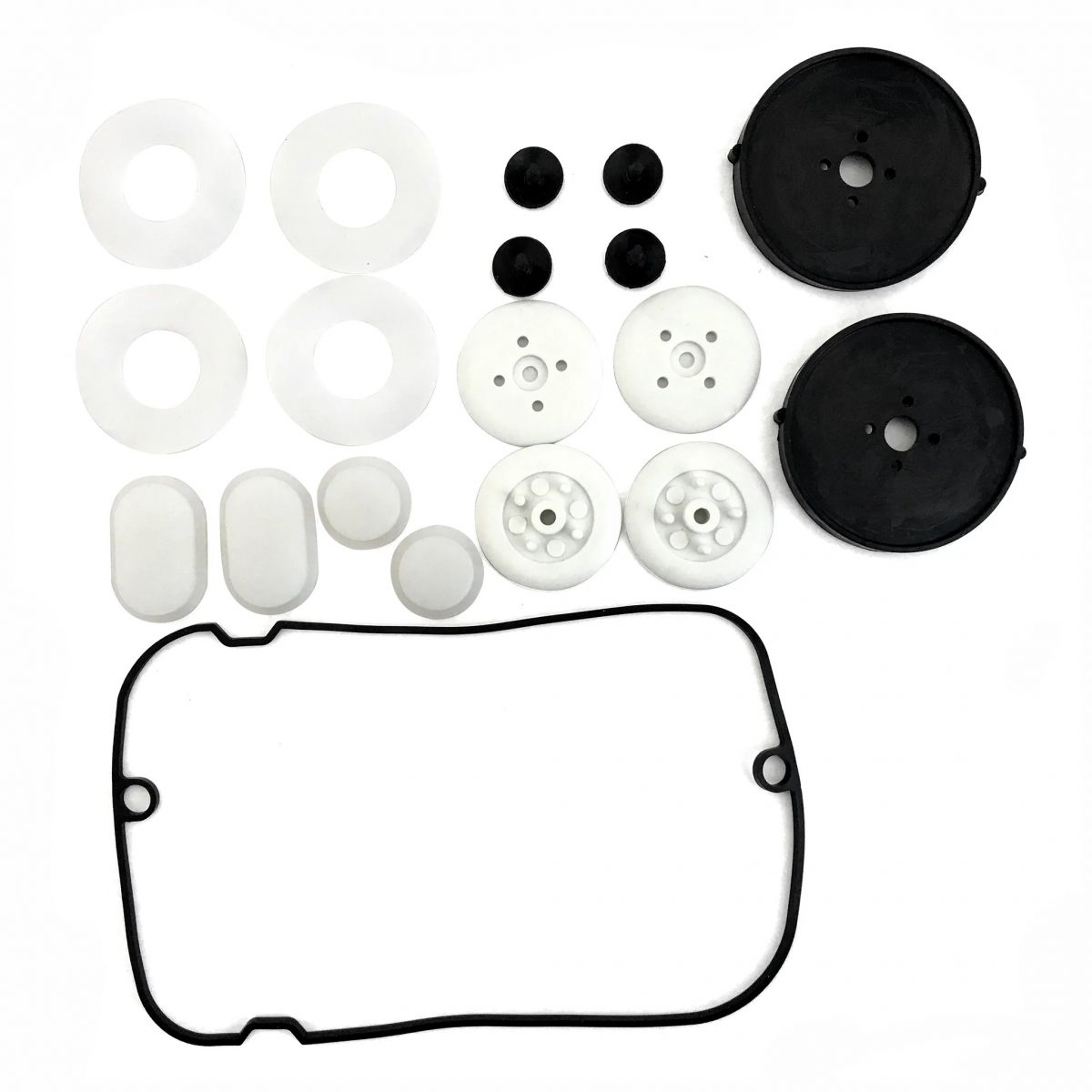

Kit Contains:

  • Diaphragm
  • Flapper valves
  • Plastic slip washers
  • Bottom pressure chamber gasket

Installation Instructions:

  1. Disconnect the pump from the AC receptacle and from any hoses.
  2. Remove the cover lid by removing screws on the bottom
  3. Unscrew the diaphragm/flapper combination assembly from either end of the pump and separate the two parts.
  4. Open the flapper valve housing, remove the flapper valves and replace them with the new ones. Be sure to maintain the same front and back side orientation of the flapper valves.
  5. Remove the round diaphragm completely and replace it with the new diaphragm and slip washers supplied.
  6. Replace the diaphragm/flapper assembly and refasten.
  7. Replace the cover lid.

Diaphragm Air Pump Repair Kit Manual

Specifications

Weight .05 lbs
Dimensions 6.5 × 4.5 × 1 in
Brand

Product Category

Hydroponics
