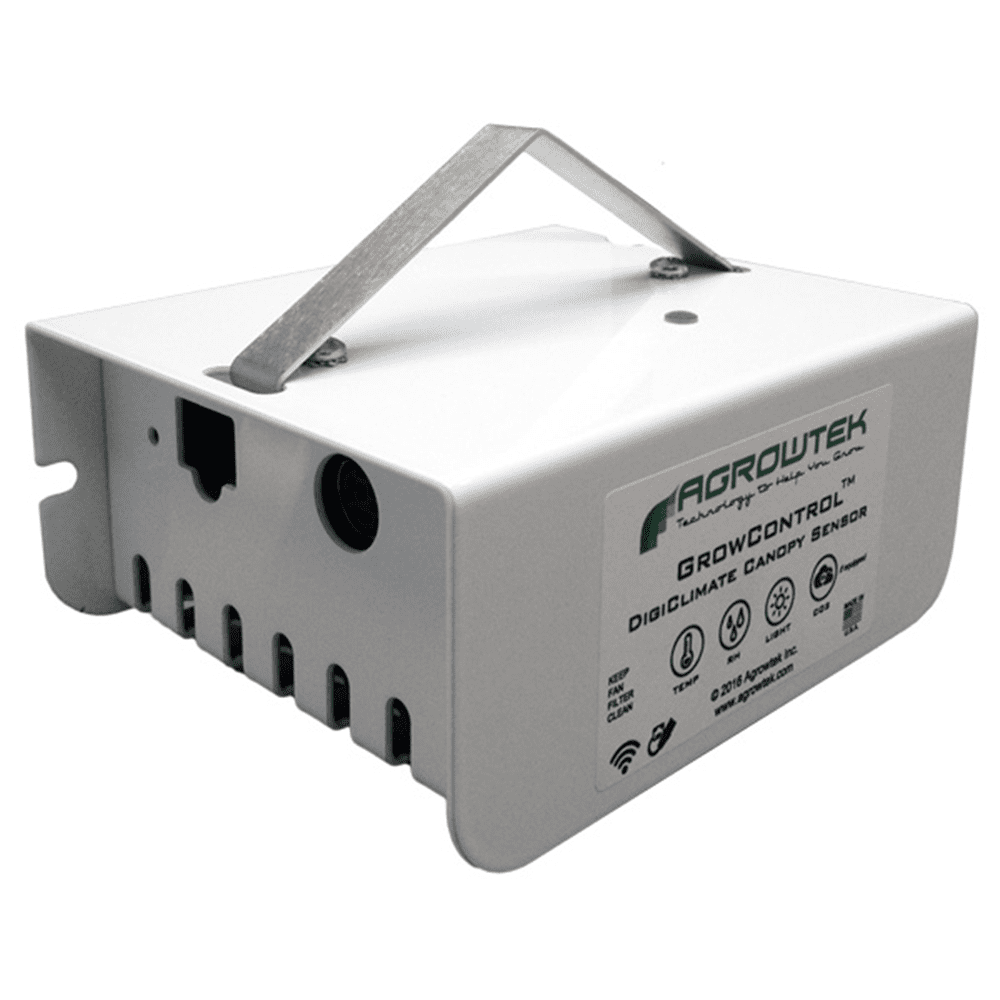

SXC Digital Indoor Environment Sensor, Logger & Transmitter

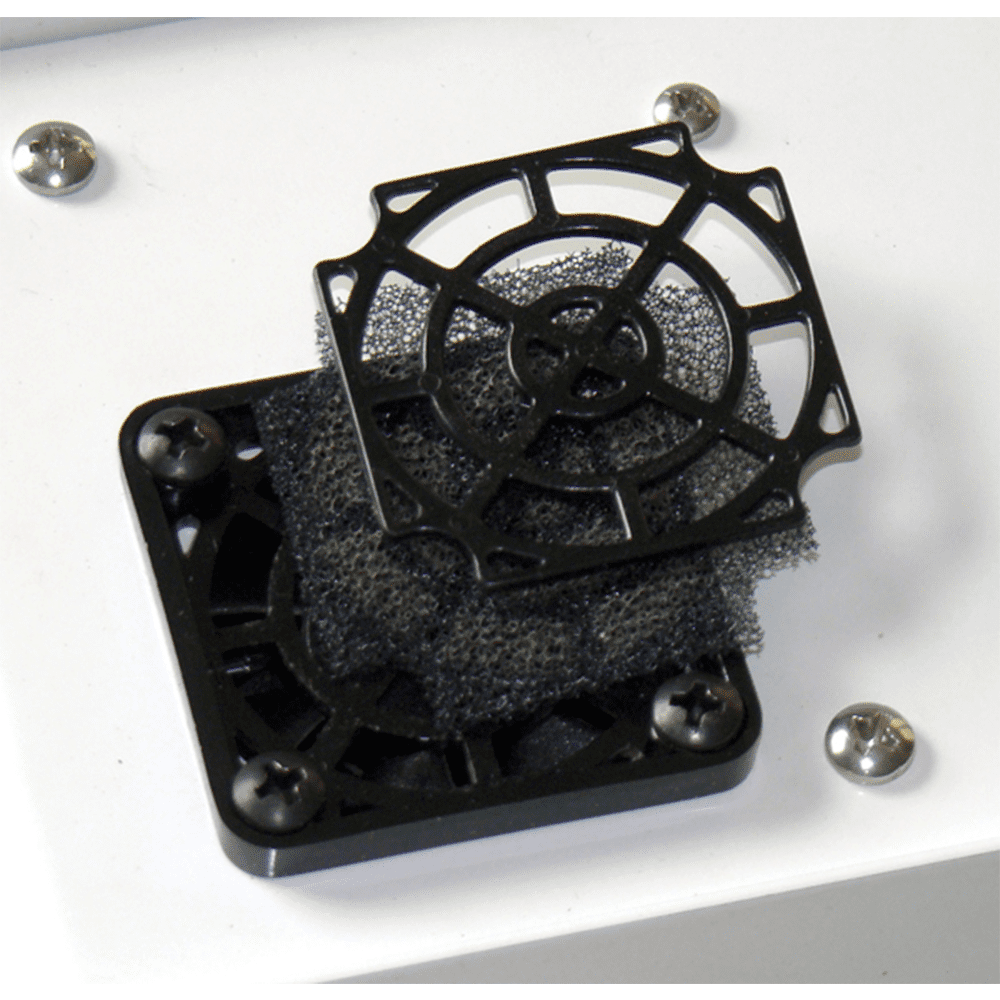

GrowControl^TM SXC Climate Sensor & Data Logger is a precision digital indoor sensor featuring temperature, humidity, ambient light and optionally CO2 ppm. Fan aspirated for continuous accuracy with removable air filter. Connect to Agrowtek’s GrowControl^TM Control systems for advanced environmental control solutions.
Internal memory logs 21,600 data points for months or years of storage. USB AgrowLink connects the GrowNET port to a PC for datalog download to .csv, graphing, calibration, configuration, updates, and more using free PC software.

• Hang above plant canopies in greenhouses & indoor agricultural facilities
• Monitor & log indoor atmospheric conditions

Monitoring | Logging | Transmitting

Air Temperature: -20 – 60°C

Relative Humidity: 0-99% RH (80% operating)

Light (Irradiance): 0-1000 Watts/m2

Carbon Dioxide (optional): 0-10,000 ppm

Documents

Data Sheet

Installation Manual

MODBUS Manual

Options

CO2 ppm Sensor
Upgrade the SXC sensor to include a CO2 ppm sensor module in order to monitor and control CO2! CO2 sensor module installs inside of the SXC environment sensor.
LX1 USB AgrowLINK
Connects the GrowNET port of any Agrowtek sensor to a PC for datalog download to .csv, graphing, calibration, configuration, updates, and more using free PC software.
LX2 RS-422/485 ModLINK™
Connects the GrowNET™ port of any Agrowtek sensor to RS-422/485 for MODBUS RTU.
WiFi Module
Upgrade the SXC sensor to include a WiFi module for access to the system via a phone or web browser (coming soon.)

Applications

Greenhouses & Growing Facilities

Agricultural Facilities

Analytical, Research & Academic

Building Automation

Industrial Process Monitoring

OEM & custom applications
