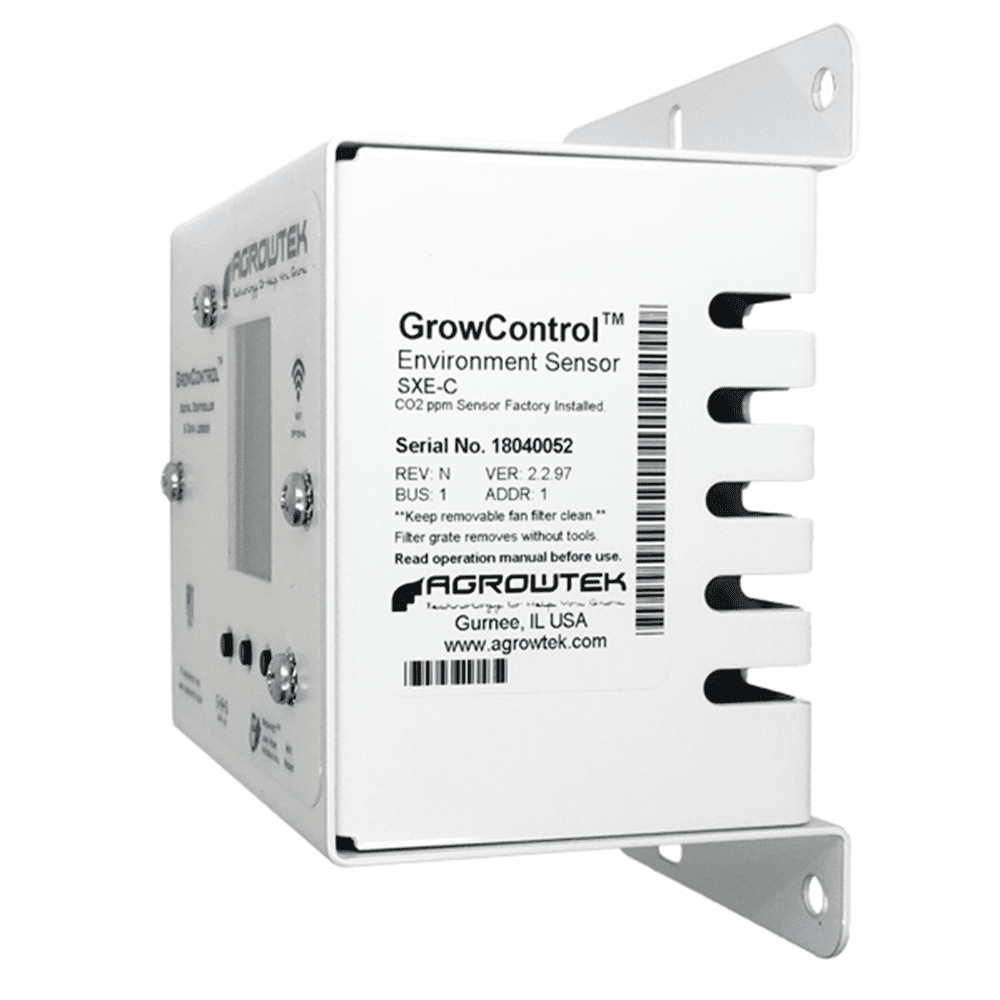

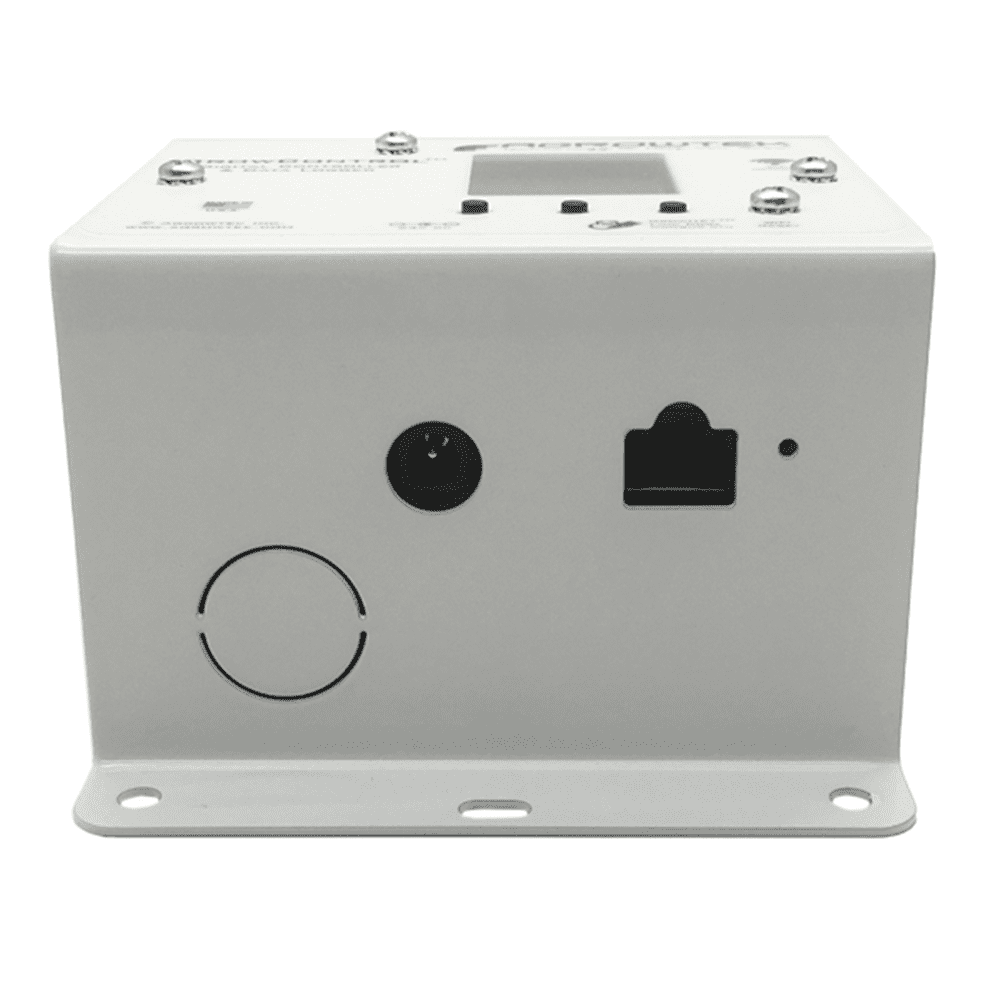

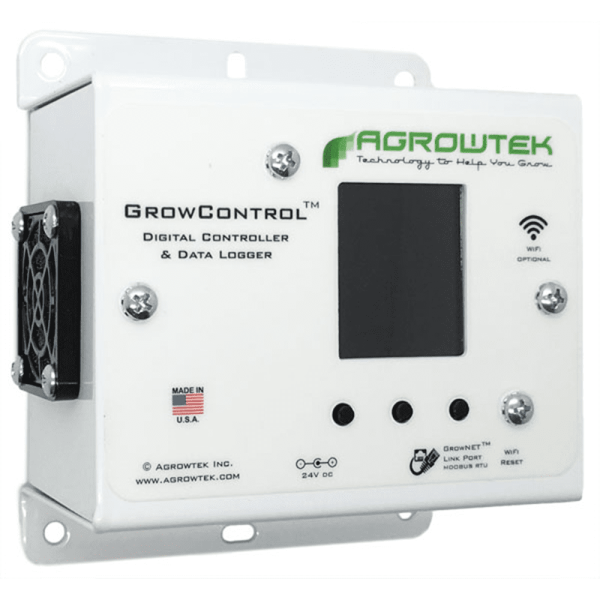

SXE Digital Indoor Environment Monitor, Logger & Controller

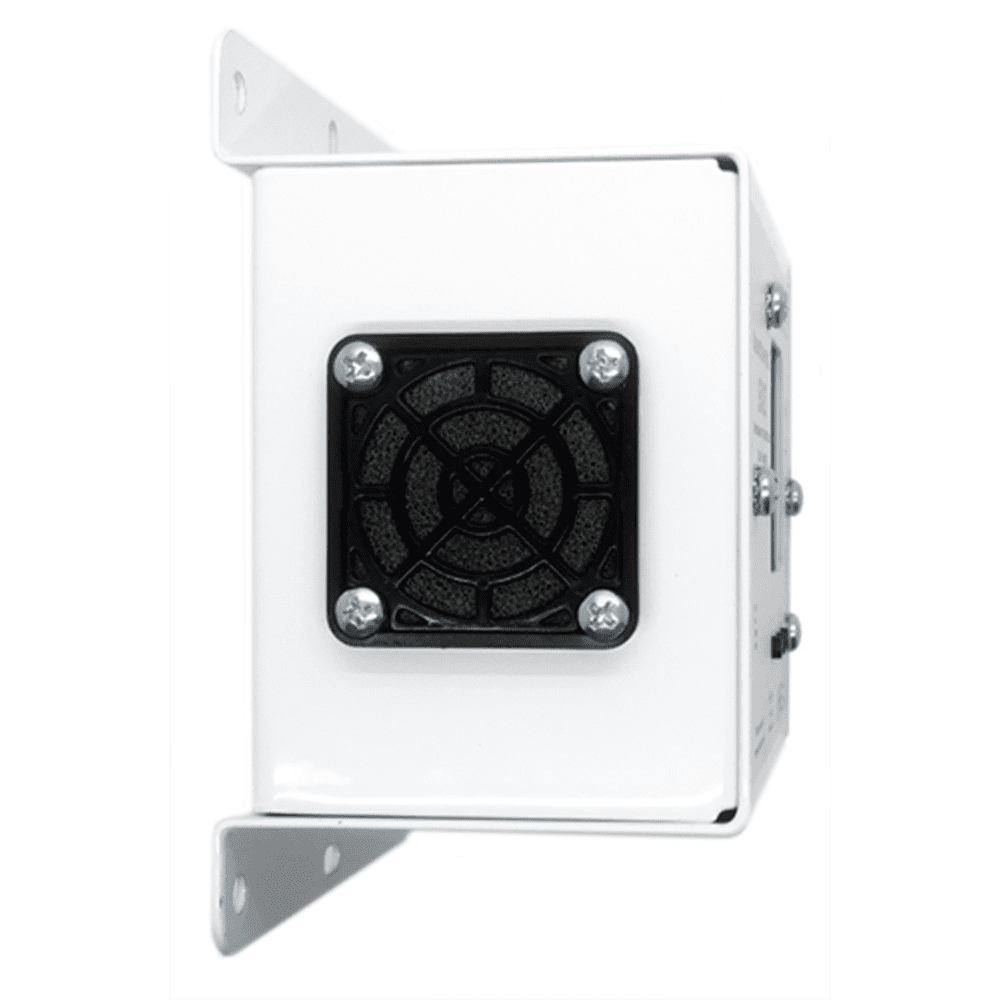

GrowControlTM SXE Environment Monitor is a precision digital indoor sensor, data logger, alarm and controller featuring temperature, humidity, ambient light and optionally CO2 ppm. Fan aspirated for continuous accuracy with removable air filter, this accurate and reliable sensor is feature packed. Bright color display and 3-button interface make this unit capable of operating stand-alone for sensor monitoring, alarm notifications and data logging, or connect to Agrowtek's GrowControlTM systems for advanced environmental control solutions.
-
Overview
GrowControlTM SXE Environment Monitor is a precision digital indoor sensor, data logger, alarm and controller featuring temperature, humidity, ambient light and optionally CO2 ppm. Fan aspirated for continuous accuracy with removable air filter, this accurate and reliable sensor is feature packed. Bright color display and 3-button interface make this unit capable of operating stand-alone for sensor monitoring, alarm notifications and data logging, or connect to Agrowtek’s GrowControlTM systems for advanced environmental control solutions.
Internal memory logs 21,600 data points per sensor for months or years of storage. Accurate real-time-clock with battery backup keeps log time accurate during power outages. USB AgrowLink connects the GrowNET port to a PC for datalog download to .csv, graphing, calibration, configuration, updates, and more using free PC software. Alarm set points can be configured to activate an internal buzzer to alert operators.

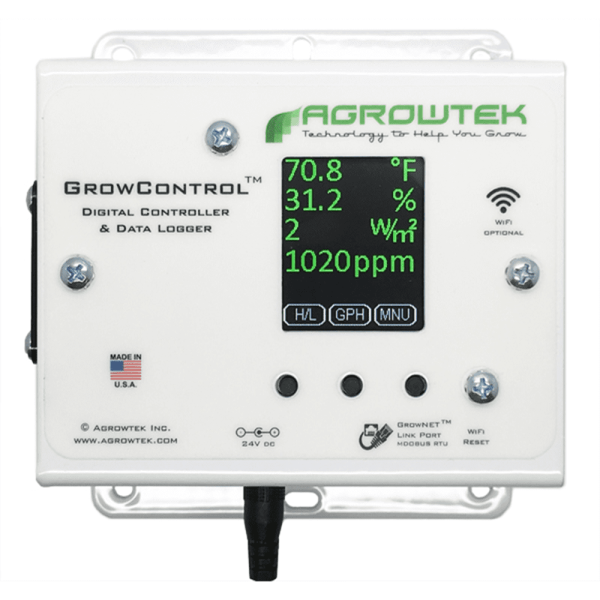

Full color display screen features large, bright green sensor readings for easy visibility, plus a range of functions that can be performed directly from the menus including:
- High/low history

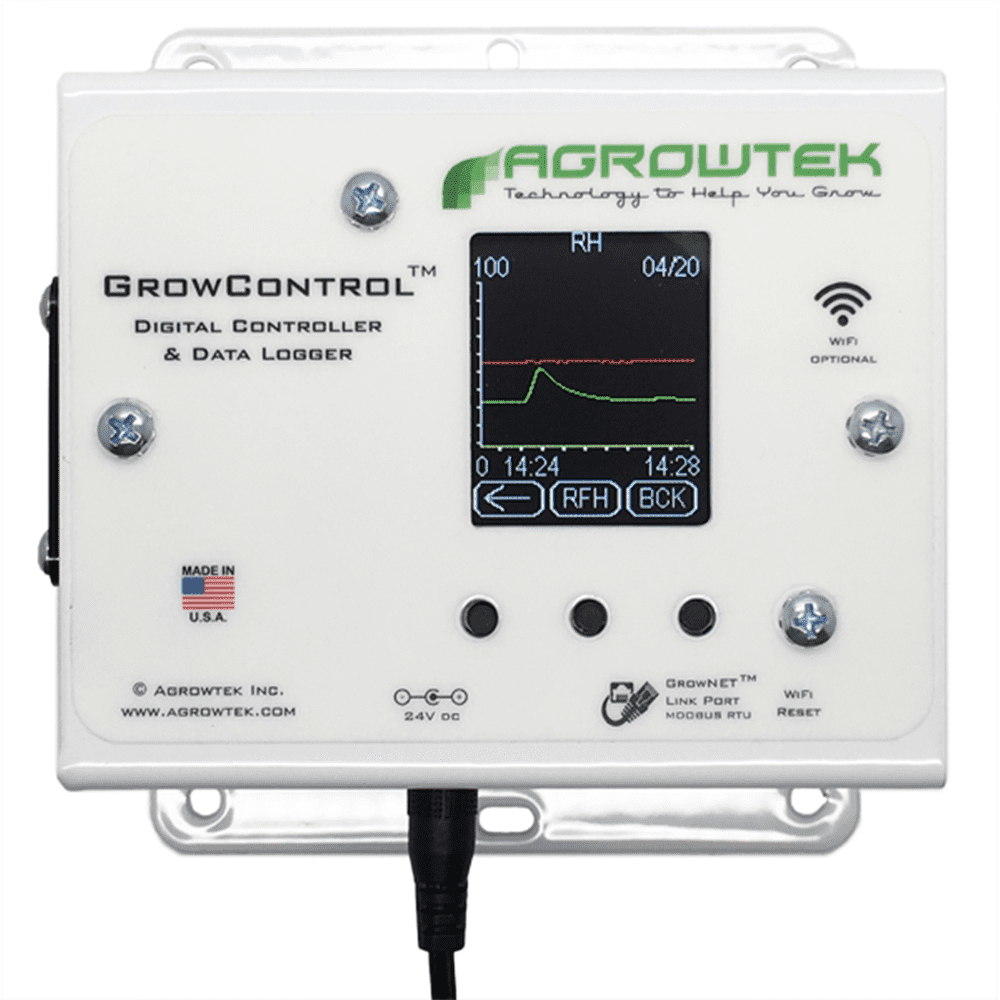

- Graphical history
- Alarm set points
- Sensor calibration
- Data logging options
Monitoring | Logging | Transmitting
Air Temperature: -20 – 60°C
Relative Humidity: 0-99% RH (80% operating)
Light (Irradiance): 0-1000 Watts/m2
Carbon Dioxide (optional): 0-10,000 ppmDocuments
Videos
Options
CO2 ppm SensorUpgrade the SXE sensor to include a CO2 ppm sensor module in order to monitor and control CO2! CO2 sensor module installs inside of the SXE environment sensor.
LX1 USB AgrowLINKConnects the GrowNET port of any Agrowtek sensor to a PC for datalog download to .csv, graphing, calibration, configuration, updates, and more using free PC software.
LX2 RS-422/485 ModLINK™Connects the GrowNET™ port of any Agrowtek sensor to RS-422/485 for MODBUS RTU.
WiFi ModuleUpgrade the SXE sensor to include a WiFi module for access to the system via a phone or web browser (coming soon.)
Applications
Greenhouses & Growing Facilities
Agricultural Facilities
Analytical, Research & Academic
Building Automation
Industrial Process Monitoring
OEM & custom applicationsSpecifications
