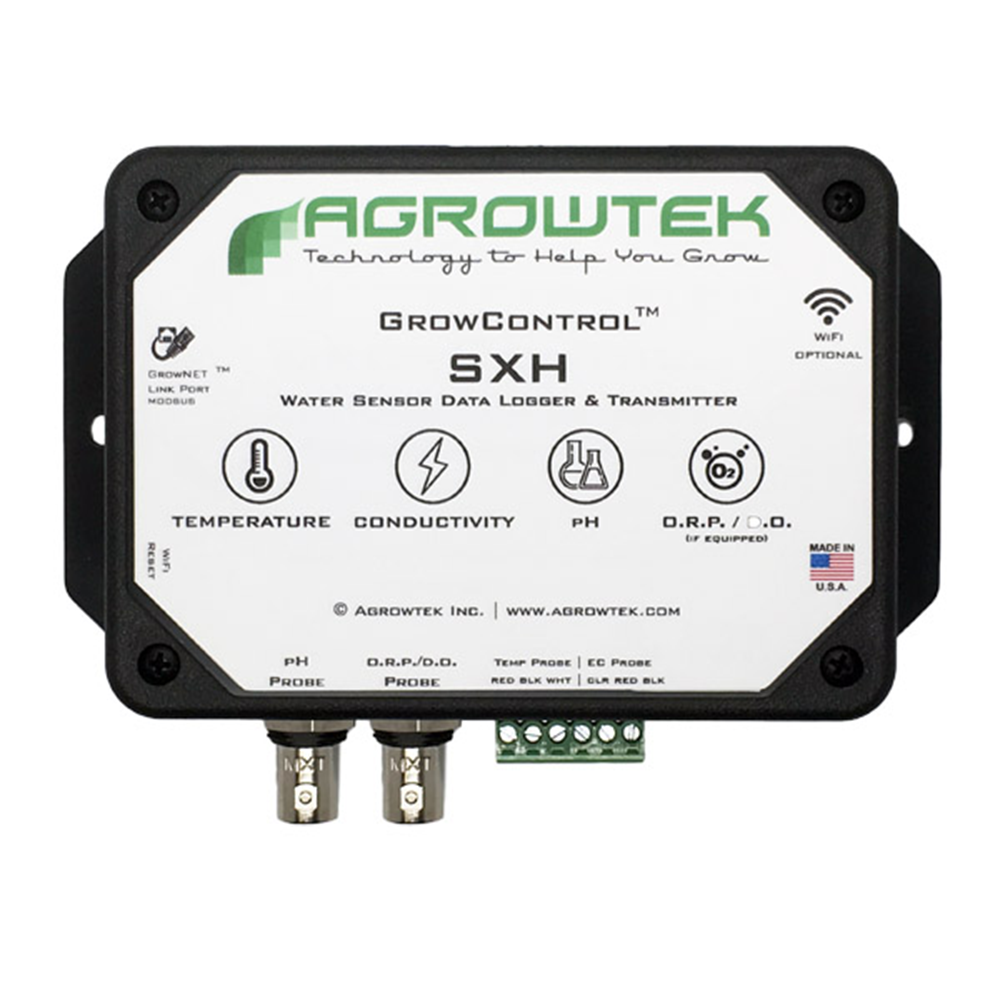

SXH Hydroponics Nutrient Sensor Monitor & Controller with Probes

GrowControl^TM SXH+ precision digital hydroponics sensor transmitter, data logger and mini-controller for temperature, pH, conductivity, plus oxidation reduction potential (Redox, ORP) or dissolved oxygen (DO.) Optional color display and 3-button interface make this unit capable of operating stand-alone for sensor monitoring, alerts, dosing pump control and more. Precision digital electronics with isolated probe inputs accurately read and record sensor data. Internal memory logs 21,600 data points per sensor for months or years of storage. Accurate real-time-clock with battery backup keeps log time accurate during power outages.Optional color display screen features large, bright green sensor readings for easy visibility, plus a range of functions that can be performed directly from the menus including:

• High/low history
• Graphical history
• Alarm set points
• Sensor calibration
• Data logging options

Sensing | Logging | Transmitting | Monitoring | Dosing

• Water Temperature -20 – 60°C
• pH 0-14 pH
• Conductivity 0-5000 uS (0-2500ppm)
• O.R.P. or D.O. +/-1000mV / 0-20mg/ml

Documents

Data Sheet
Installation Manual
MODBUS Manual

Videos

SXH Setup & Operation Instructions

Options

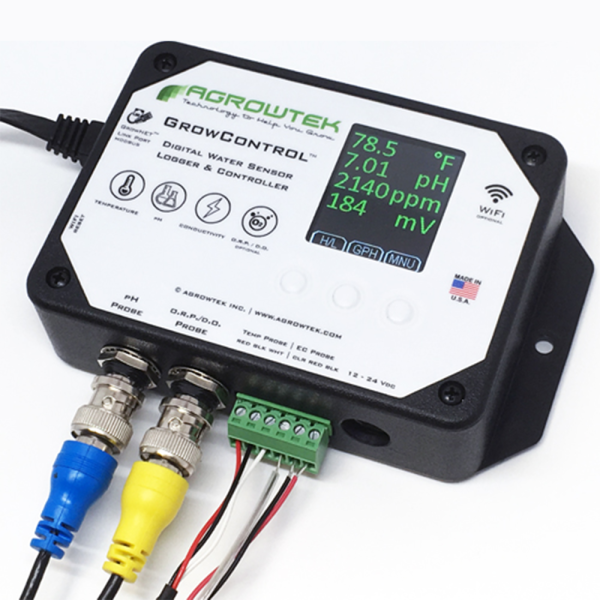

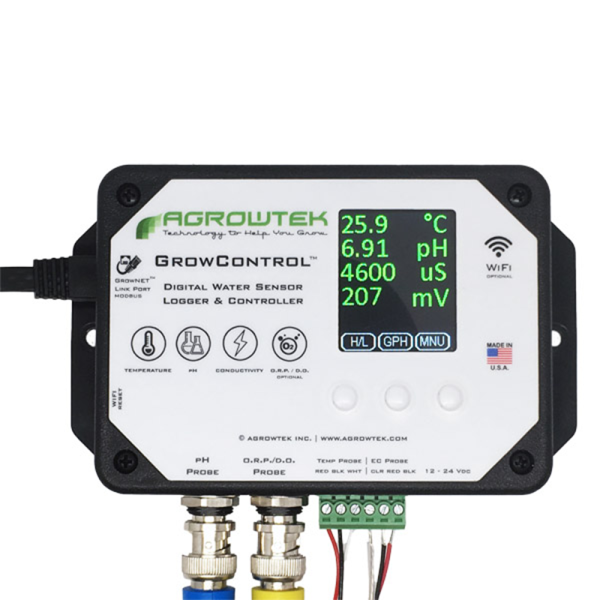

LCD DisplayAdd the LCD display/button interface option for large, bright color sensor readings and menus for on-board calibration, alarms, graphing and even dosing pump control!

LX1 USB AgrowLINKConnects the GrowNET port of any Agrowtek sensor to a PC for datalog download to .csv, graphing, calibration, configuration, updates, and more using free PC software.

LX2 RS-422/485 ModLINK™Connects the GrowNET™ port of any Agrowtek sensor to RS-422/485 for MODBUS RTU.

WiFi ModuleUpgrade the SXE sensor to include a WiFi module for access to the system via a phone or web browser (coming soon.)

Applications
