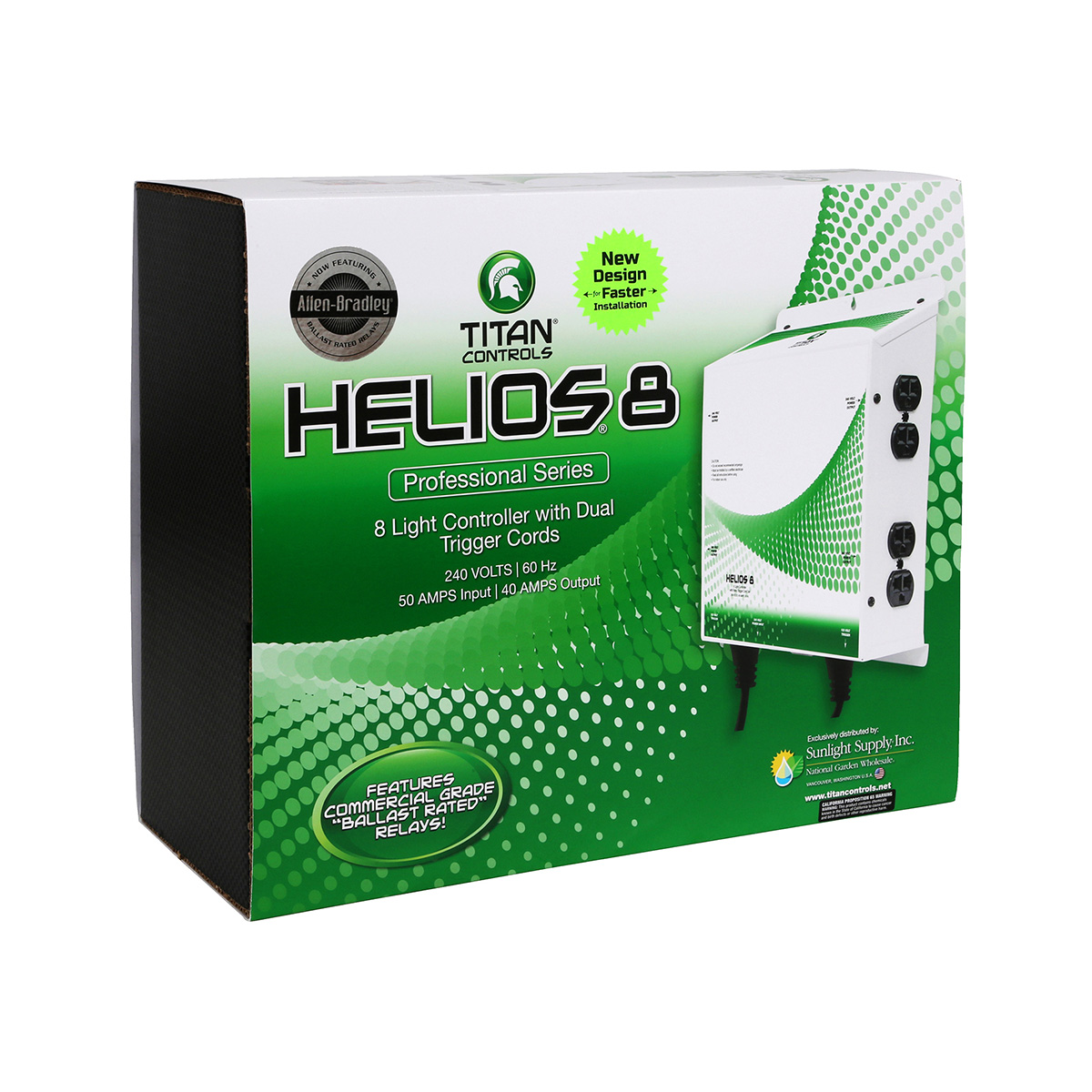

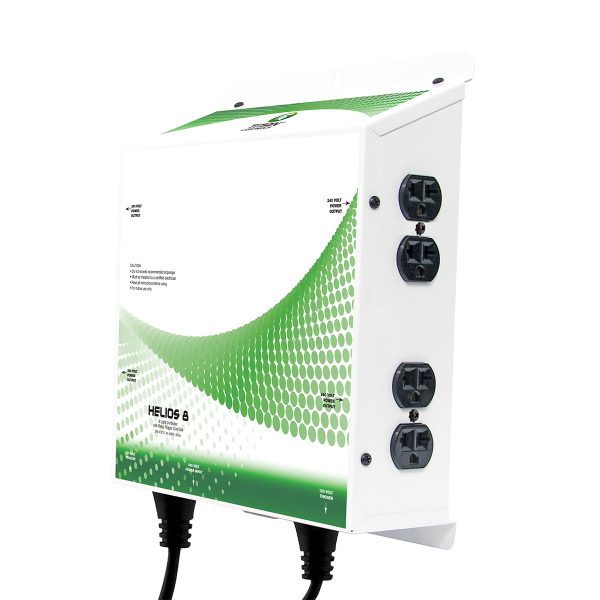

Titan Controls Helios 8 – 8 Light 240v Controller
Titan Controls Helios 8 is a high-powered controller that operates up to 8 HID 12-1000 watt grow lights at 240 volts. Each of the 8 outlets handles up to 5 amps with 120v/240v compatibility. The featured dual-trigger 120v cords allow growers to run two separate timing schedules, turning two 4-light controllers into one easy-to-use controller. Unique to the Helios 8 is the removable front panel, which makes accessing the power system even when the controller is fully mounted. The ultimate controller choice for commercial growers.
- 50 Amps input power/40 Amps output power
- 240 Volts/60 Hz./8,000 Watt Max
- 120/240v ballast cord compatibility
- 2x 120v trigger cord for 24-hour timers
In stock
-
Overview
Titan Controls Helios 8 – 8 Light 240v Controller
This controller will run eight (8) HID lights at 240 volts. The only lighting controllers featuring industrial-grade ballast-rated relays. Easy-to-follow instructions make installation simple. Dual trigger cord sets allow the operator to run two separate light timing schedules. Removable front panel makes controller easy to wire into your power system. Universal outlets will accept 120-volt or 240-volt power cords. Durable 20 gauge powder-coated steel enclosure.
50 Amps input power/40 Amps output power/240 Volts/60 Hz./8000 Watts.
Features:
- Operates up to eight 1000 Watt HID lights at the same time
- The only lighting controllers featuring industrial-grade ballast-rated relays
- Step-by-step installation instructions are easy to follow
- Dual 120-volt trigger cords allow the grower to run two separate lighting schedules
- Durable powder-coated steel chassis
- 50 Amp/240 Volt = Input power
- 40 Amp/240 Volt = Output power
- Patent No. D660,252
- 60 Hz.
- Hand-built in the USA!
- 3-year warranty
Specifications
Weight
11.25 lbs
Dimensions
16.8 × 13.7 × 6.6 in
Brand
Product Category
Air – Water – CO2
