USA LAB JR10-VBTK 10L SINGLE JACKETED GLASS REACTOR SYSTEM
The JR10-VBTK comes with a USA Lab 10L UHC-10/40 Heater chiller that can bring your reactor down to a freezing temperature of -40°C and all the way back up to the high temperature of 200°C. This allows users to have accurate temperature control and a large range of temperature for a variety of applications. With each kit comes the MD 4C NT 2.2CFM Chemistry Diaphragm Pump, a top tier vacuum pump from Vacuubrand.

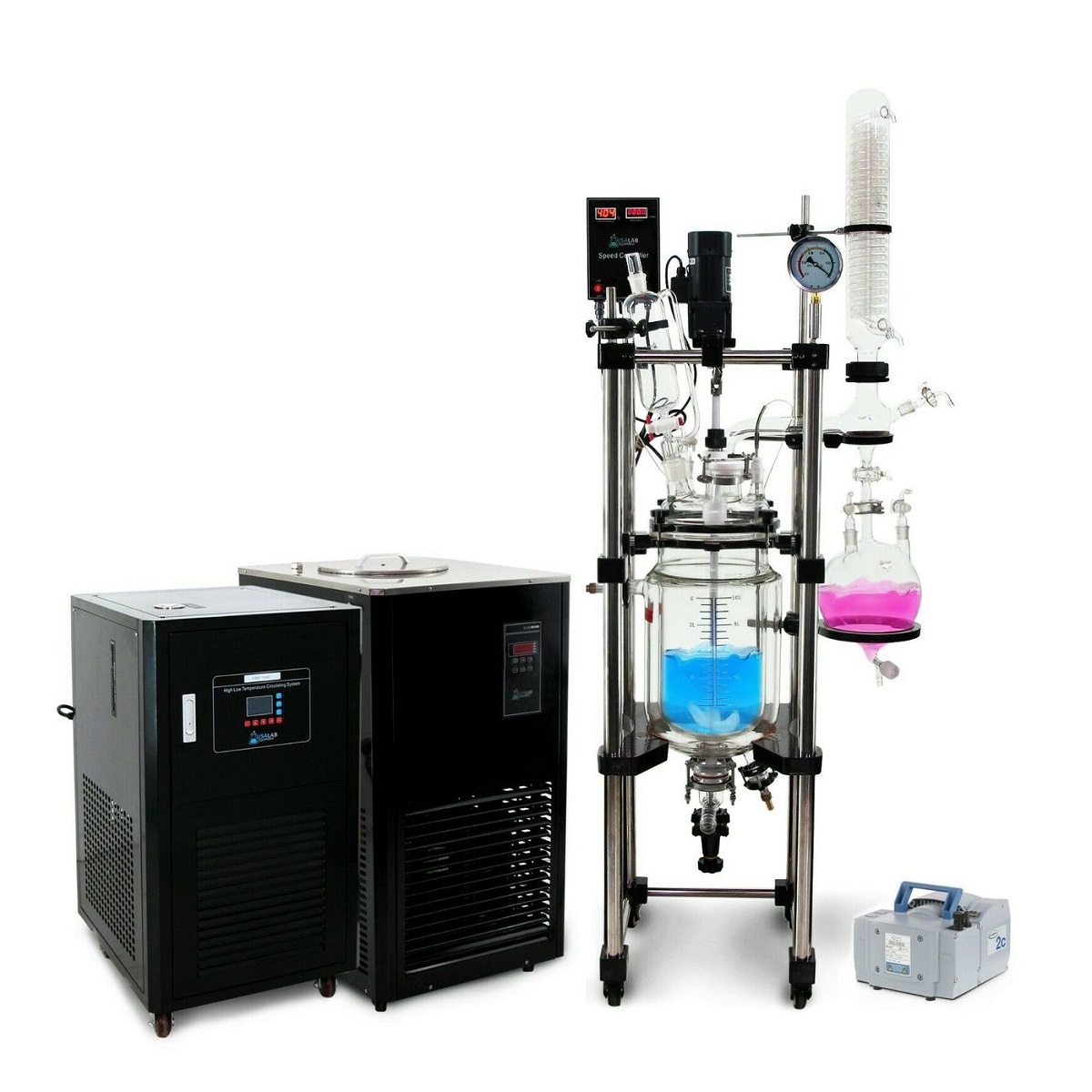

The JR10-VBTK Turnkey System Includes the Following:

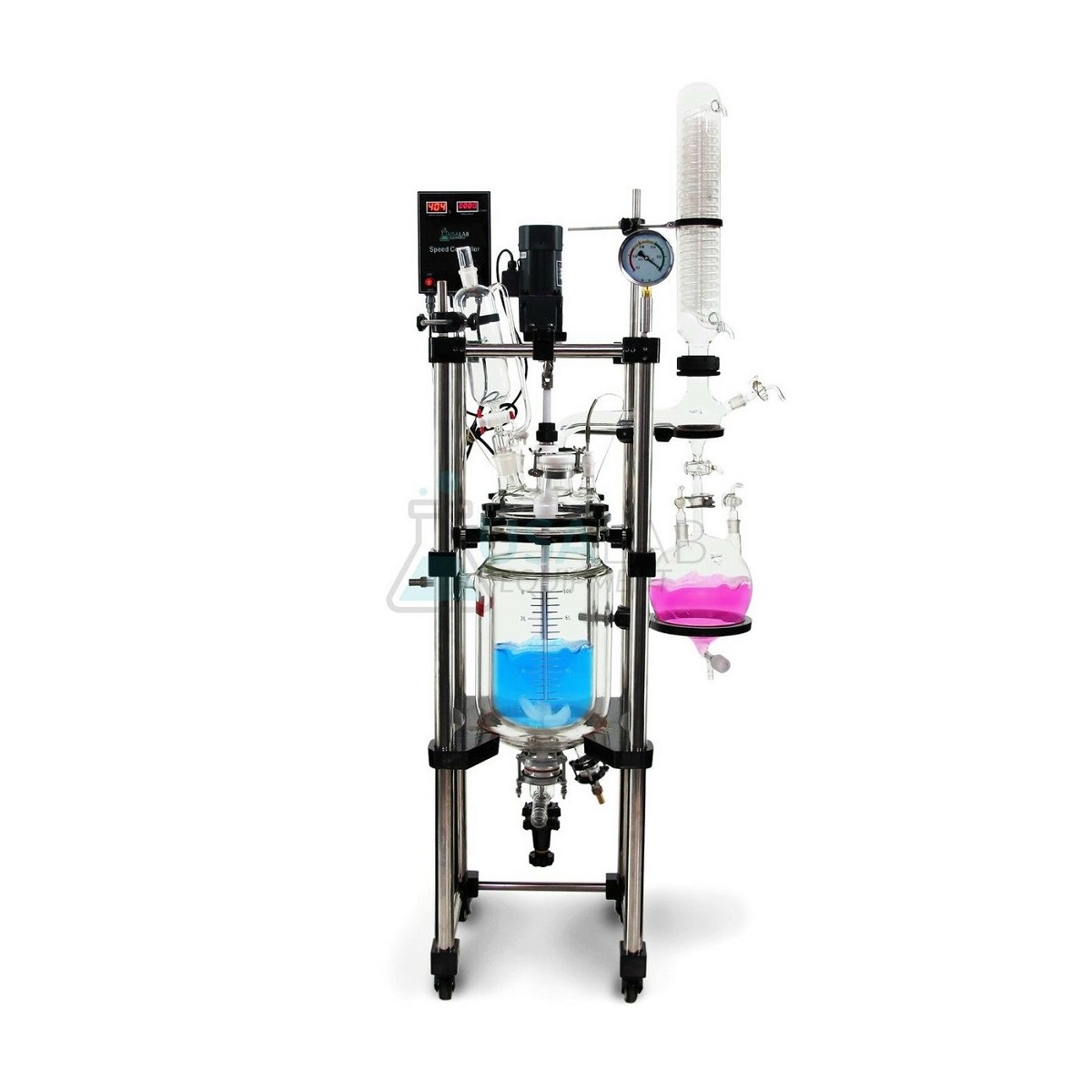

1pc: USA Lab 10L Single Jacketed Reactor JR-10
1pc: USA Lab 10L -40°C to 200°C Heater Chiller UHC-10/40
1pc: USA Lab 20L -20°C Chiller DLSB-20/20

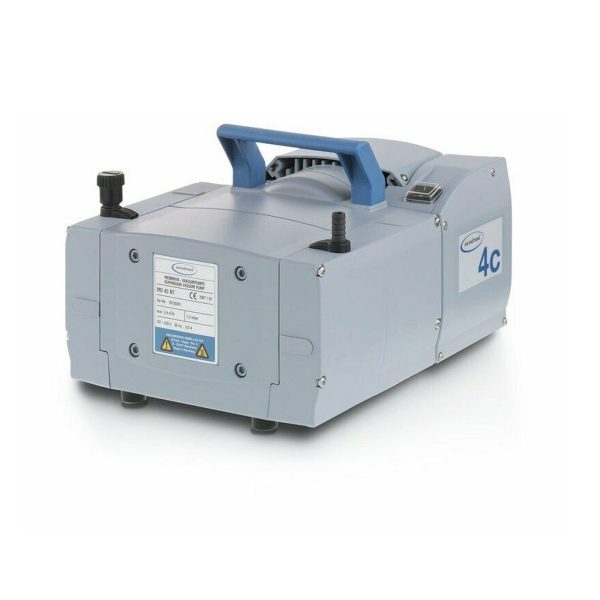

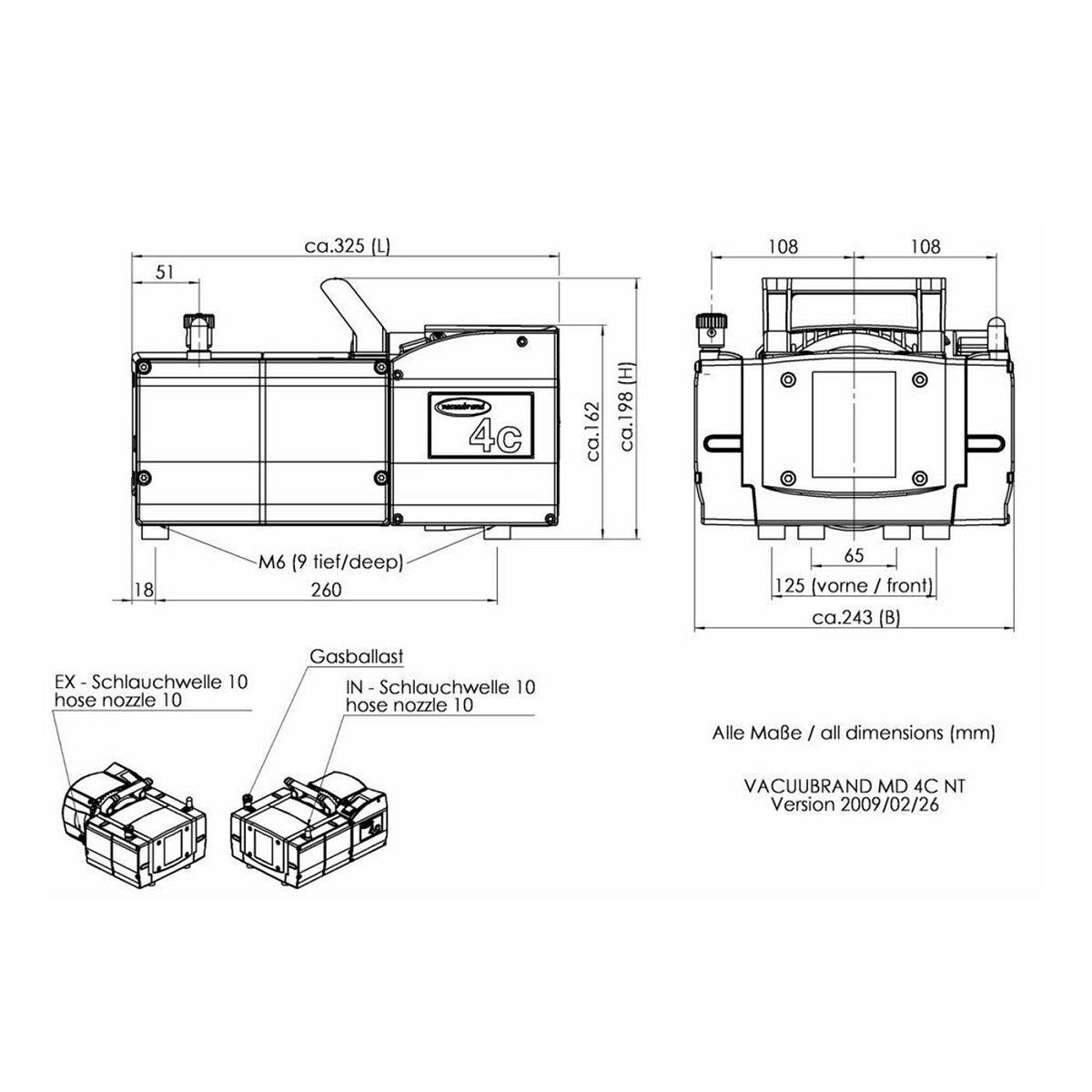

1pc: Vacuubrand MD 4C NT 2.2CFM Chemistry Diaphragm Pump
JR-10 FLOW CHART

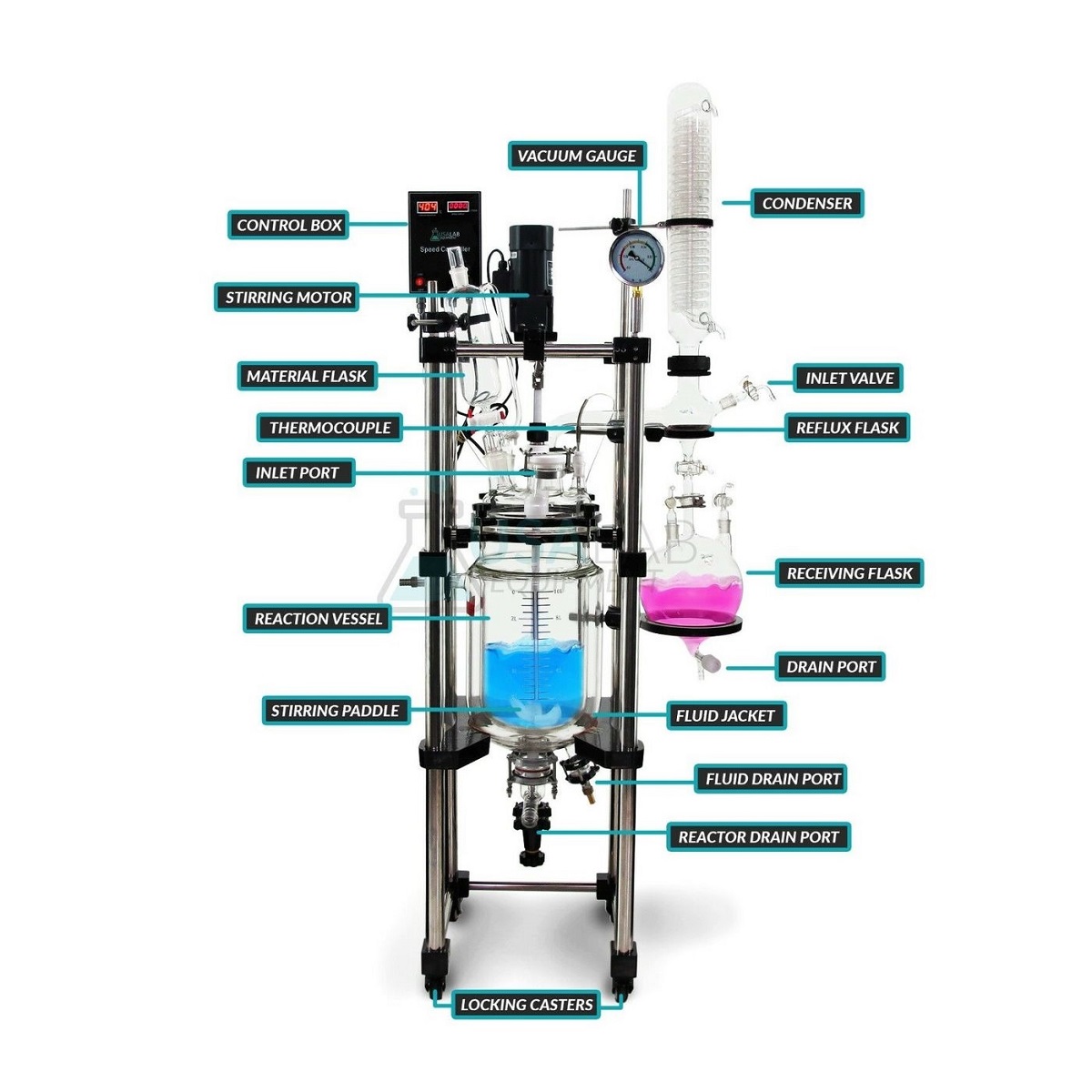

JR-10 REACTOR SPECIFICATIONS
JR-10 REACTOR SPECIFICATIONS
• Glass Material: GG-17 Borosilicate Glass
• Reaction Vessel Capacity: 10L
• Material Flask Capacity: 2L
• Fluid Jacket Capacity: 6L
• Rotary Speed: 0-450RPM
• Glass Temperature Range: -80°C to 250°C / -112°F to 482
• Power Requirements: 110V 60Hz 15A Single Phase
• Stirrer Wattage: 90W
• Vacuum Level: Under 0.098Mpa
• Dimensions: 20.4″L x 20.4″W x 70″H
• Weight: 149lbs
• Speed Regulation: Digital Step-Less
• Condenser and Feed Valve Barbs: 10MM – 3/8″
• Bottom Drain Port: 35MM – 1 3/8″
• Receiving Flask Barb: 16MM – 5/8″
• Fluid Connection: 16MM – 5/8″

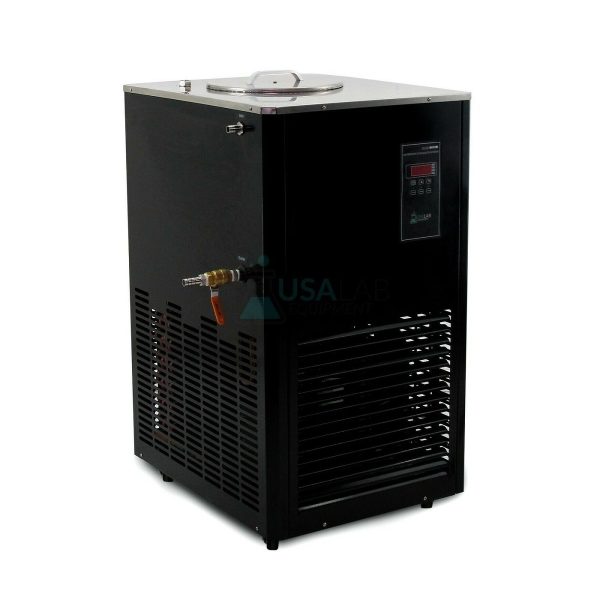

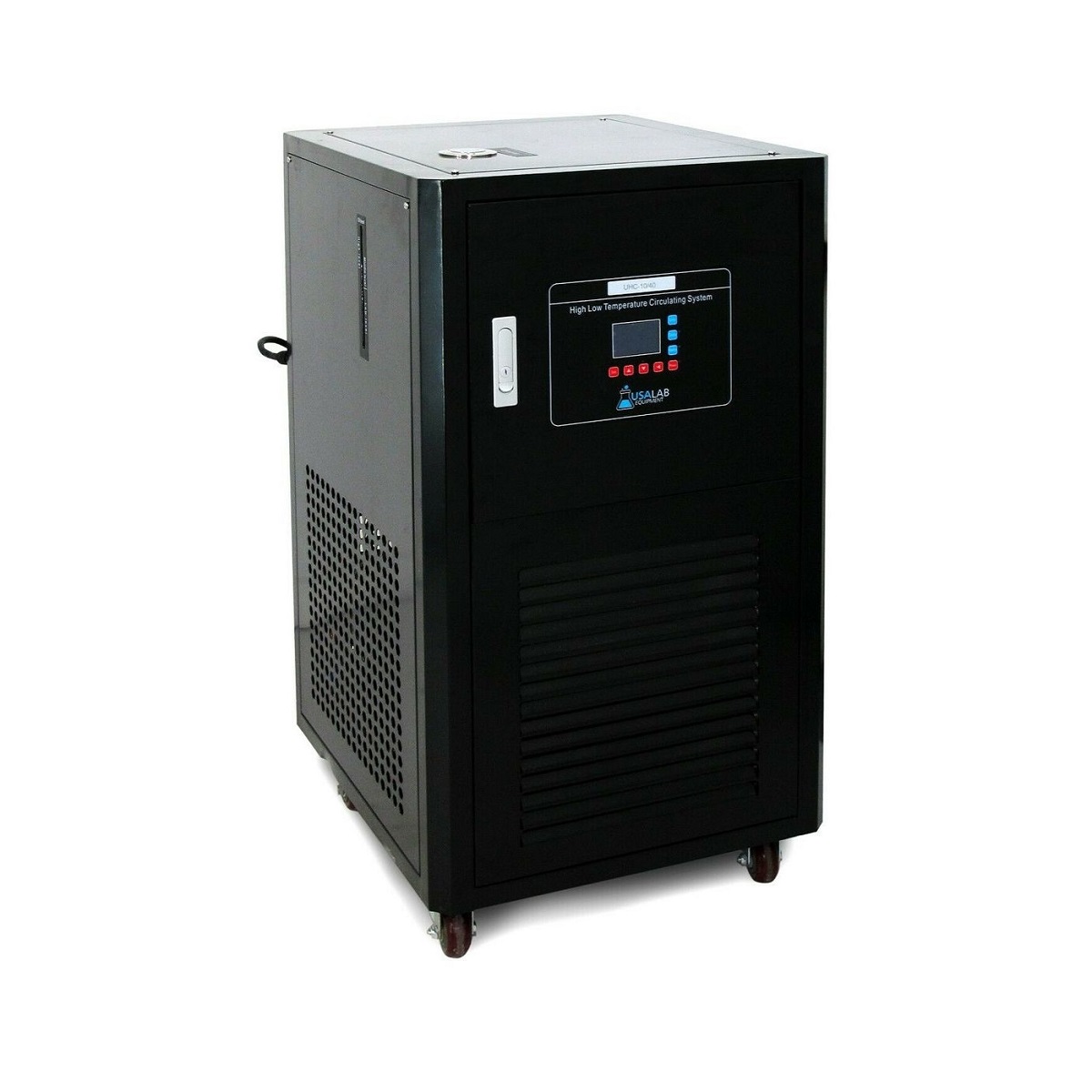

UHC-10/40 HEATER CHILLER SPECIFICATIONS
• Reservoir Capacity: 6L
• Temperature Range: Room Temperature to -40°C to 200°C
• Power Requirements: 220V 60Hz 20A 3000W Single Phase
• Heating Wattage: 3kW
• Refrigerating Wattage: 2kW
• Circulating Pump Wattage: 100W
• Temperature Accuracy: +/- 2°C
• Pump Flow: 18L/Min
• Pump Pressure: 4Kpa
• Connection Size: 3/4″
• Dimensions: 25″ x 22″ x 42″
• Weight: 187lbs
DLSB-20/20 HEATER CHILLER SPECIFICATIONS
• Reservoir Capacity: 20L
• Reservoir Dimensions: 11.8″ x 11.8″
• Temperature Range: Room Temperature to -20°C to -4°F
• Power Requirements: 220V 60Hz 20A 1800W Single Phase
• Refrigerating BTUs: 3,000 BTU – 10,500 BTU
• Circulating Pump Wattage: 100W
• Temperature Accuracy: +/- .5°C
• Pump Flow: 30L/Min
• Pump Pressure: 2.2 bar
• Connection Size: 5/8″
• Refrigerant: R404
• Dimensions: 24.8″ x 20.4″ x 43.3″
• Weight: 154lbs
*-20°C Temperatures are tested under empty load.
