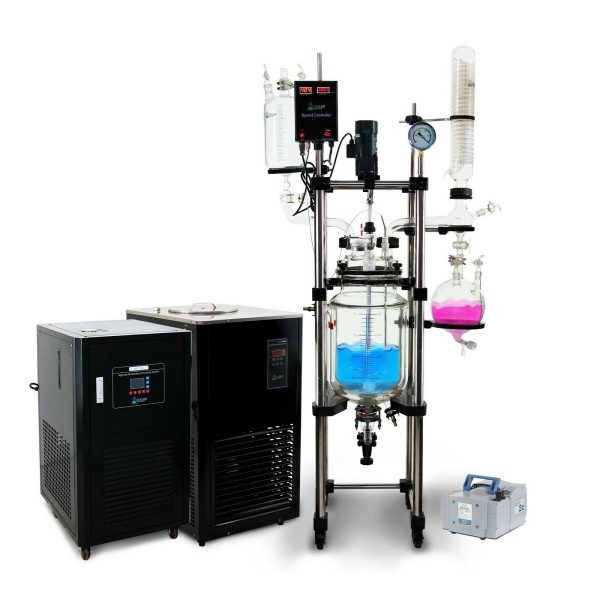

USA Lab 20L Glass Reactor Turnkey System

$18,849.00

The USA Lab 20L Single Jacketed Glass Reactor turnkey system is the best quality reactor kits on the market. Start processing your own extracts without paying more than you should for a quality system. Bring your lab to the next level, and get started with a USA Lab single jacketed reactor.

Model: JR20-VBTK
MPN: JR20-VBTK

Description

USA LAB JR20-VBTK 20L SINGLE JACKETED GLASS REACTOR SYSTEM

The JR20-VBTK comes with a USA Lab 20L UHC-20/40 Heater chiller that can bring your reactor down to a freezing temperature of -40°C and all the way back up to the high temperature of 200°C. This allows users to have accurate temperature control and a large range of temperature for a variety of applications. With each kit comes the MD 4C NT 2.2CFM Chemistry Diaphragm Pump, a top tier vacuum pump from Vacuubrand.

The JR20-VBTK Turnkey System Includes the Following:

1pc: USA Lab 20L Single Jacketed Reactor JR-20
1pc: USA Lab 20L -40°C to 200°C Heater Chiller UHC-20/40
1pc: USA Lab 20L -20°C Chiller DLSB-20/20

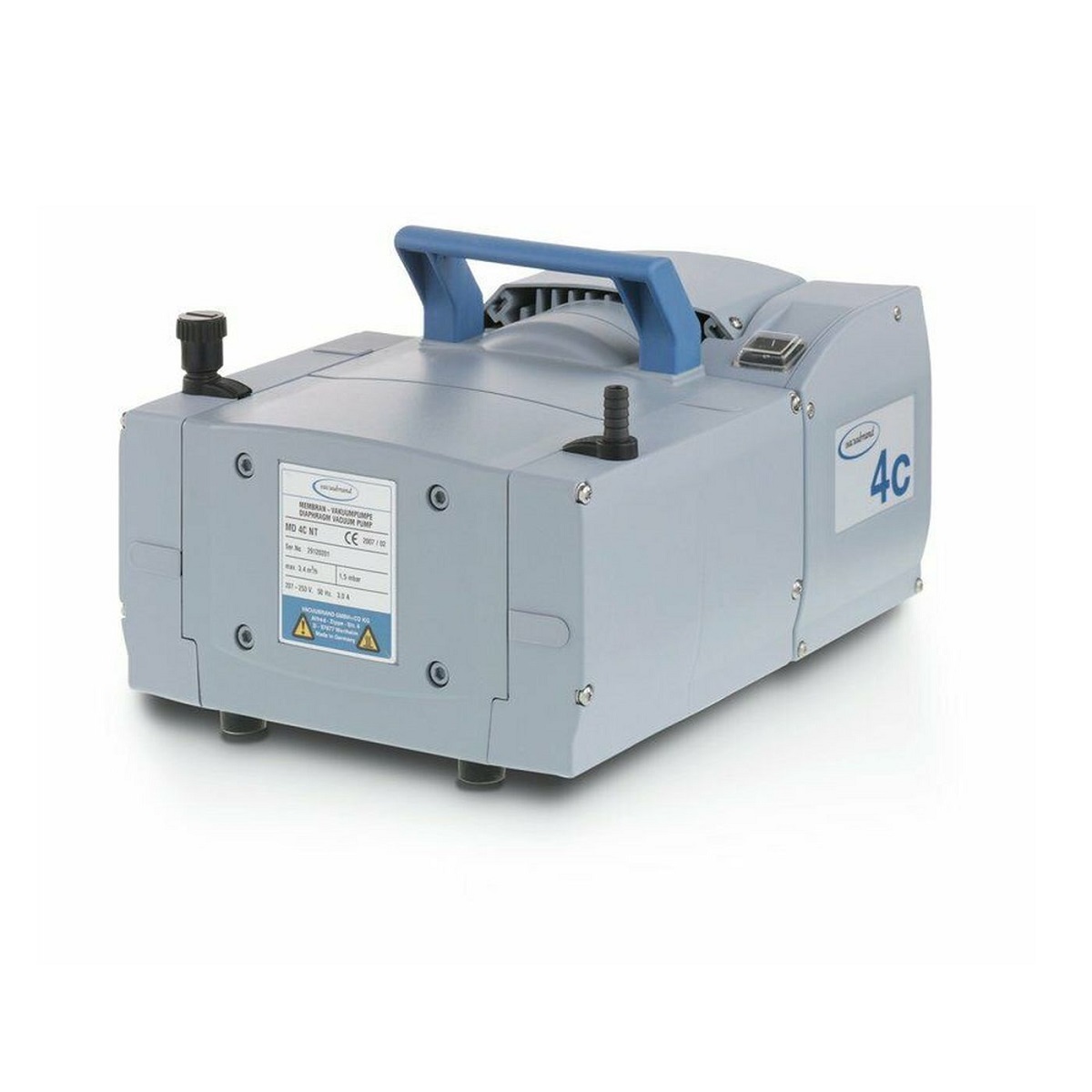

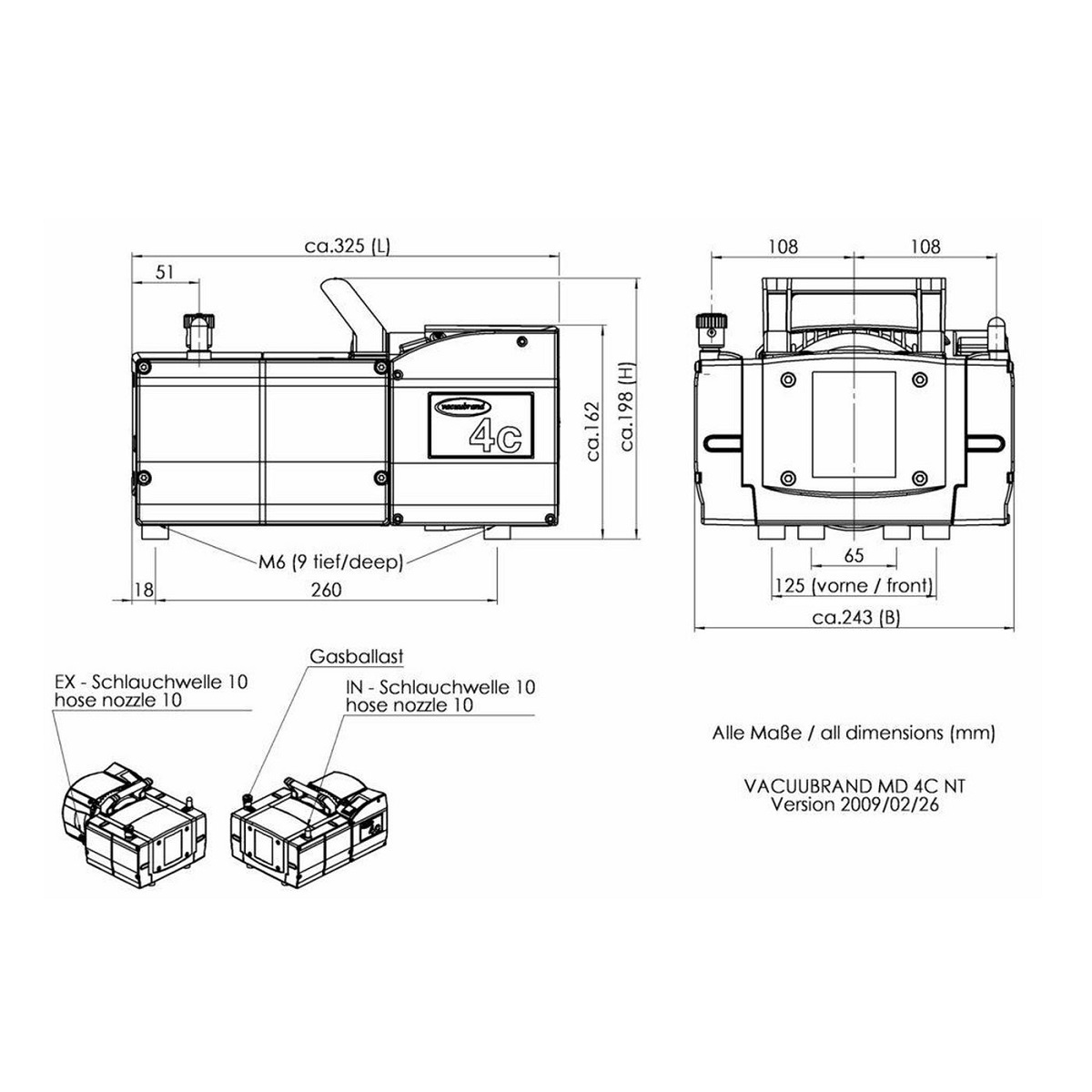

1pc: Vacuubrand MD 4C NT 2.2CFM Chemistry Diaphragm Pump

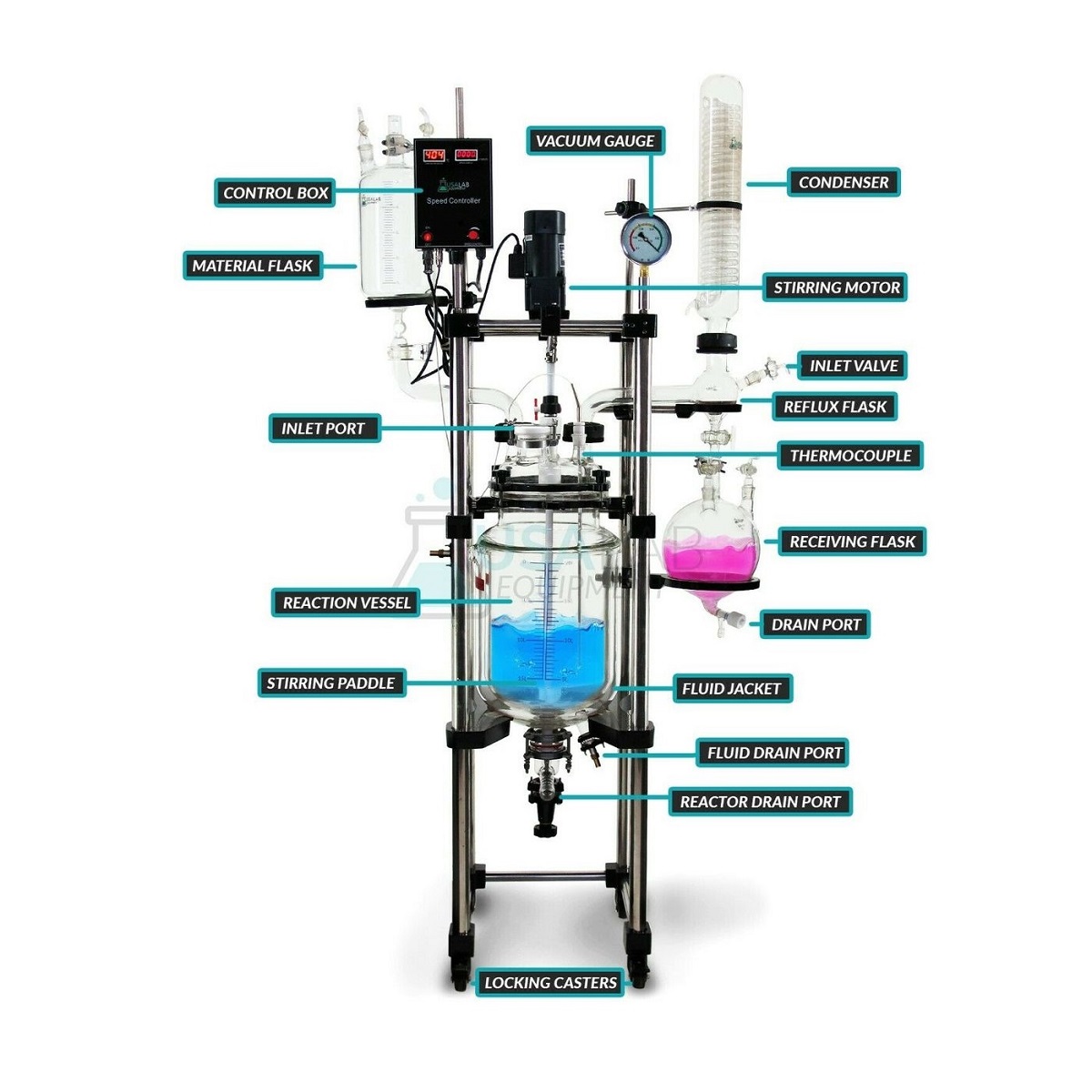

JR-20 FLOW CHART

JR-20 REACTOR SPECIFICATIONS

JR-20 REACTOR SPECIFICATIONS

• Glass Material: GG-17 Borosilicate Glass
• Reaction Vessel Capacity: 20L
• Material Flask Capacity: 5L
• Fluid Jacket Capacity: 8L
• Rotary Speed: 0-450RPM
• Glass Temperature Range: -80°C to 250°C / -112°F to 482
• Power Requirements: 110V 60Hz 15A Single Phase
• Stirrer Wattage: 90W
• Vacuum Level: Under 0.098Mpa
• Dimensions: 39″L x 20.4″W x 79″H
• Weight: 176lbs
• Speed Regulation: Digital Step-Less
• Condenser and Feed Valve Barbs: 10MM – 3/8″
• Bottom Drain Port: 35MM – 1 3/8″
• Receiving Flask Barb: 16MM – 5/8″
• Fluid Connection: 16MM – 5/8″

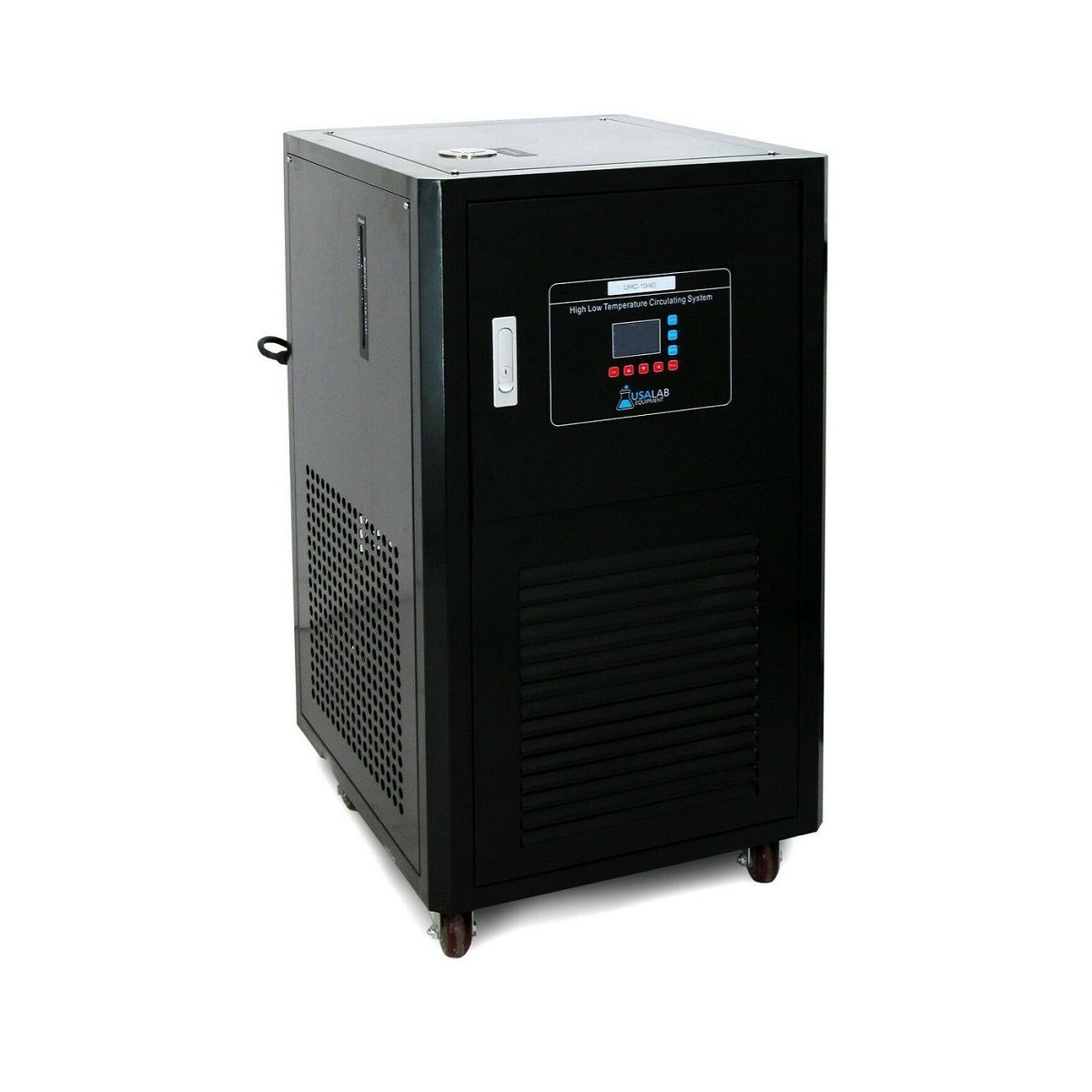

UHC-20/40 HEATER CHILLER SPECIFICATIONS

• Reservoir Capacity: 6L
• Temperature Range: Room Temperature to -40°C to 200°C
• Power Requirements: 220V 60Hz 20A 3000W Single Phase
• Heating Wattage: 3kW
• Refrigerating Wattage: 2kW
• Circulating Pump Wattage: 100W
• Temperature Accuracy: +/- 2°C
• Pump Flow: 18L/Min
• Pump Pressure: 4Kpa
• Connection Size: 3/4″
• Dimensions: 25″ x 22″ x 42″
• Weight: 197lbs

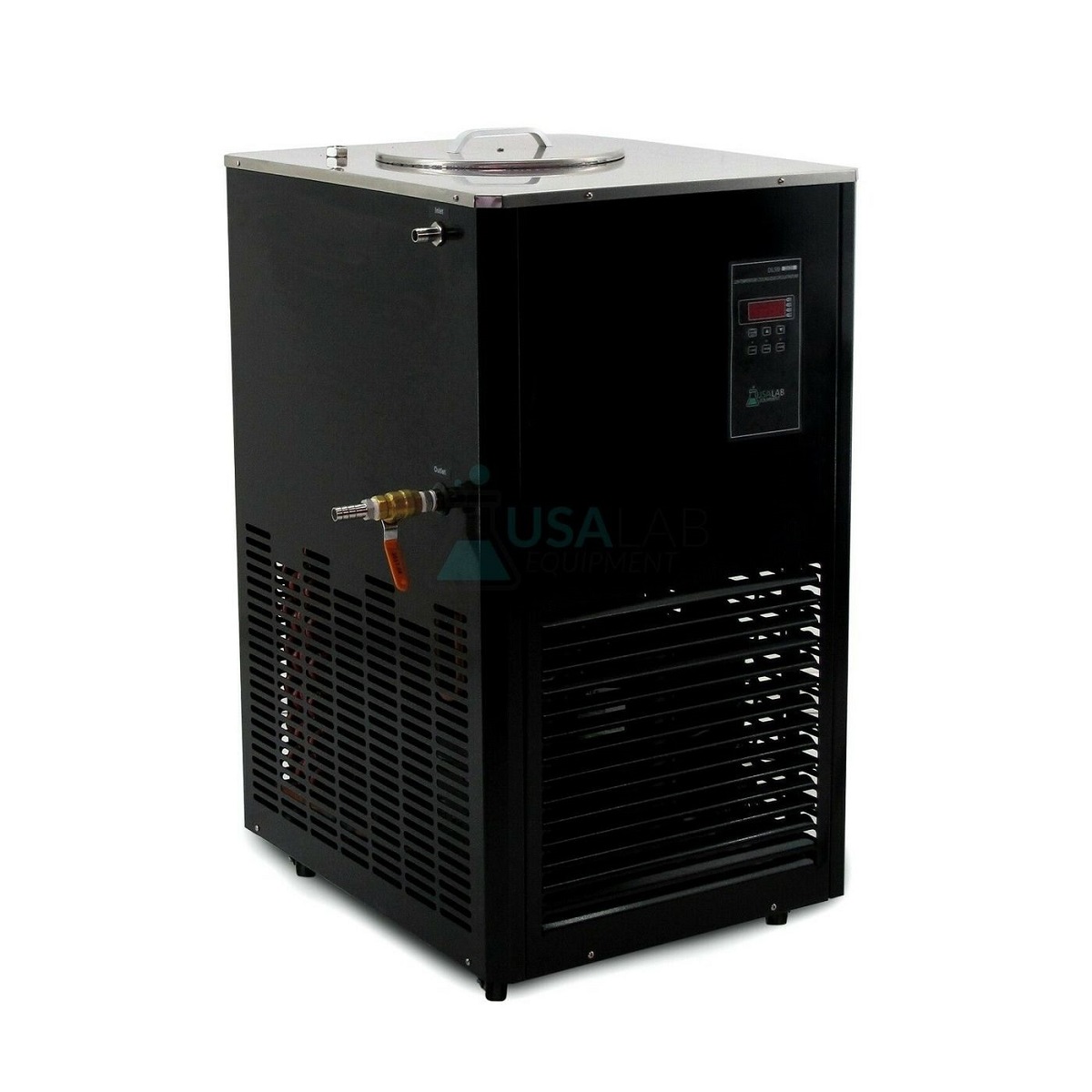

DLSB-30/30 HEATER CHILLER SPECIFICATIONS

• Reservoir Capacity: 30L
• Reservoir Dimensions: 13.7″ x 13.7″
• Temperature Range: Room Temperature to -30°C to -22°F
• Power Requirements: 220V 60Hz 20A 2500W Single Phase
• Refrigerating BTUs: 4,000 BTU – 13,500 BTU
• Circulating Pump Wattage: 100W
• Temperature Accuracy: +/- .5°C
• Pump Flow: 30L/Min
• Pump Pressure: 2.2 bar
• Connection Size: 5/8″
• Refrigerant: R404
• Dimensions: 30.3″ x 25.5″ x 39.7″
• Weight: 171lbs

Additional information

Weight 450 lbs
