The USA Lab 20L RE-1020 Series Rotary Evaporator Turnkey Kit recovers solvents efficiently and fast. This Kit provides consistent and repeatable results at an affordable price.

Model: RE-1020TK
MPN: RE-1020TK

SKU: 12499 Categories: , ,
Loading...

USA Lab 20L Rotovap RE-1020 System

The RE-1020 Evaporator is made with GG-17 High Borosilicate Glass, and has been designed for efficient use of surface area. This means faster recovery without compromising quality. Our evaporators come standard with safety features such as over-temperature shut off and dry-run protection. All valves and ports are high efficiency allowing a continuous feed of material as well as draining the receiving flask without breaking vacuum.

RE-1020 ROTARY EVAPORATOR FLOW DIAGRAM

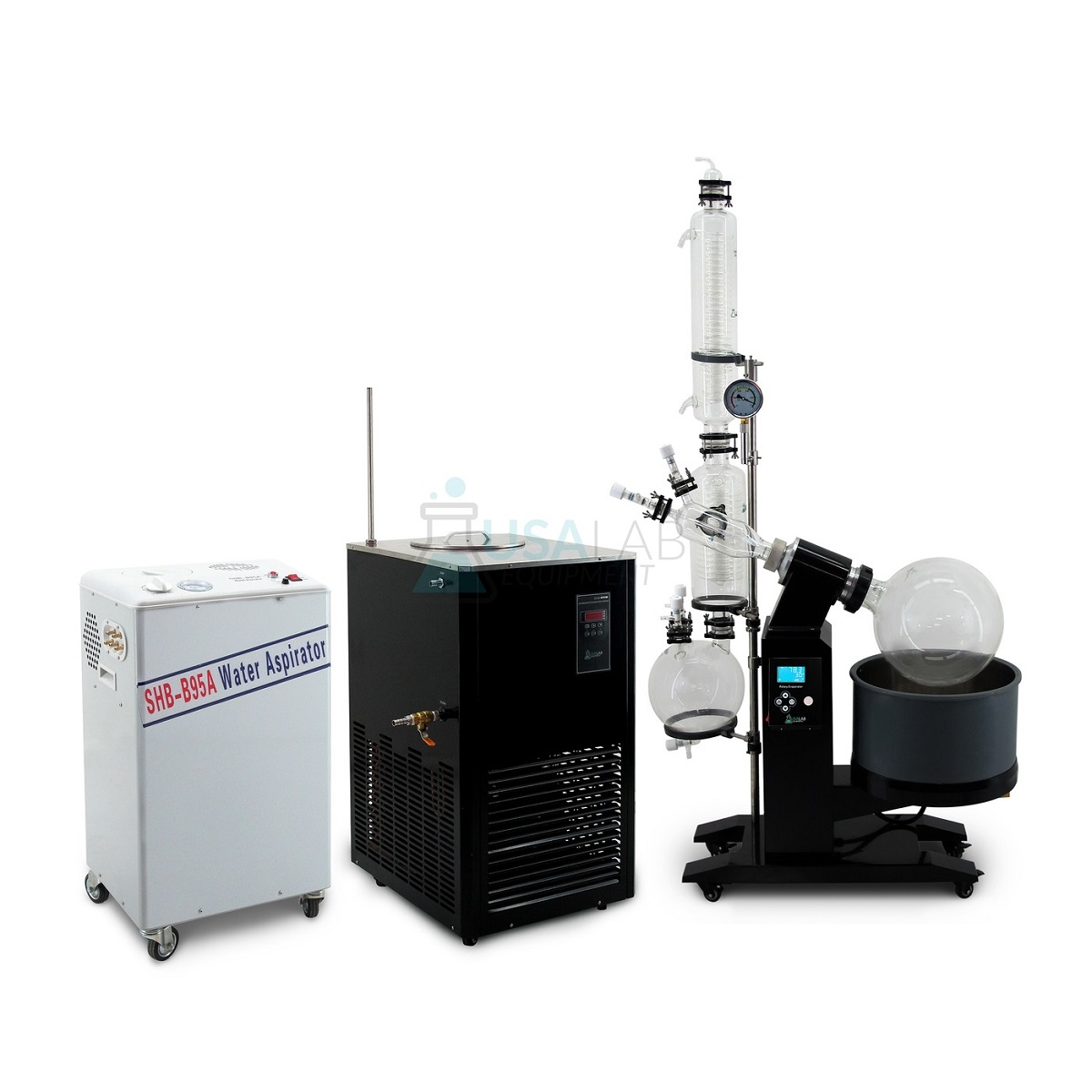

Complete System

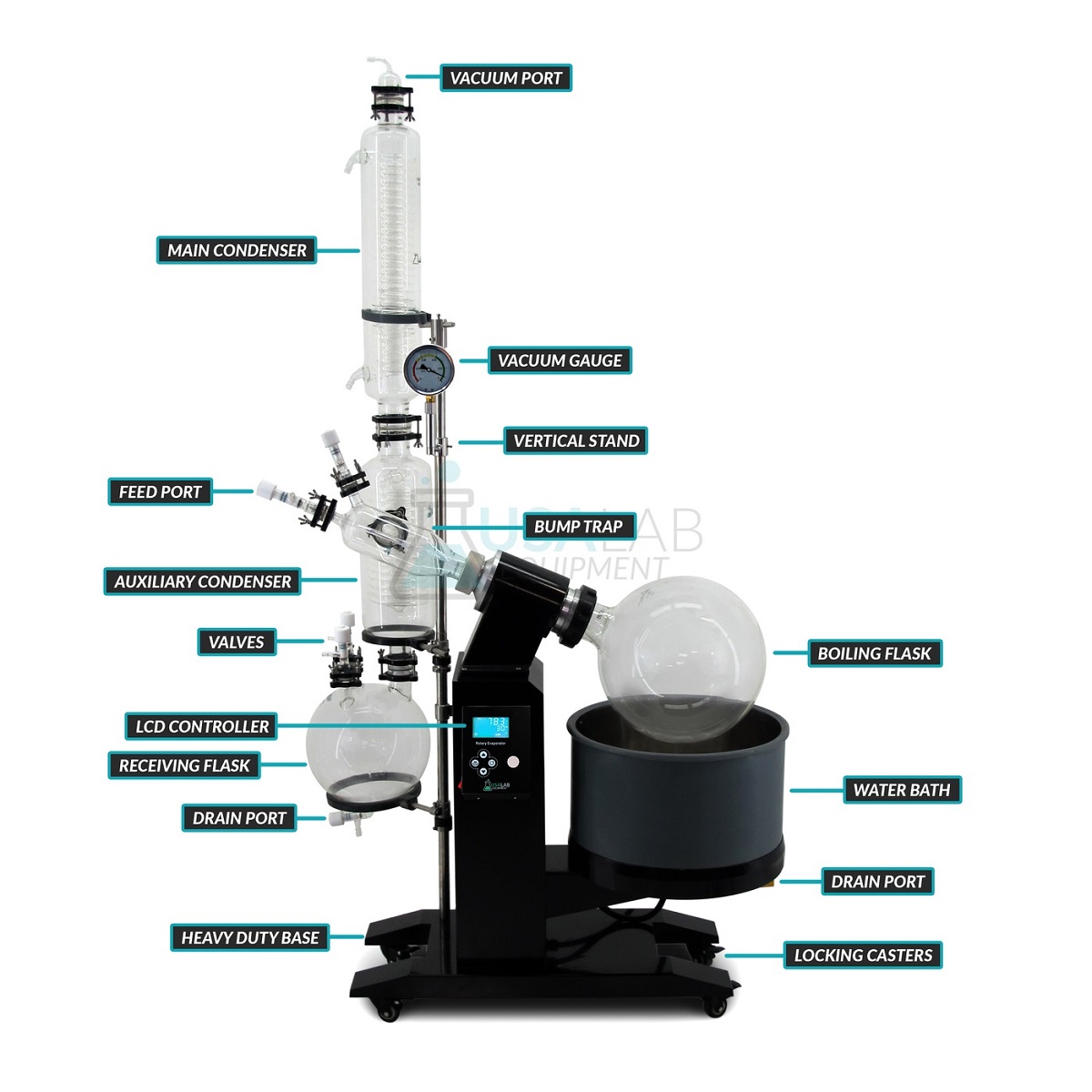

Rotovap Diagram

RE-1020 ROTARY EVAPORATOR SPECIFICATIONS

• Glass Material: GG-17 Borosilicate Glass
• Evaporation Flask Capacity: 20L
• Collection Flask Capacity: 10L
• Rotary Speed: 20-120RPM
• Bath Temperature Range: Room Temp to 180°C /356°F
• Lifting Mechanism: Electric
• Power Requirements: 220V 60Hz 30A 5000W L6-30P Plug Installed
• Temperature Control Accuracy: +/-1°C
• Motor Wattage: 100W
• Heater BTUs: 17,000BTU
• Achievable Vacuum: 399.9Pa
• Evaporating Capability: Water≥5L/H; Alcohol≥12L/H
• Water Bath Volume: 41L
• Dimensions: 43″L x 30″W x 80″H
• Condensing Glass Volume: Main: 0.8㎡ ; Auxiliary: 0.39㎡
• Speed Regulation: Digital Step-Less
• Vacuum Barb: 13.3MM
• Condenser Barb: 15.5MM

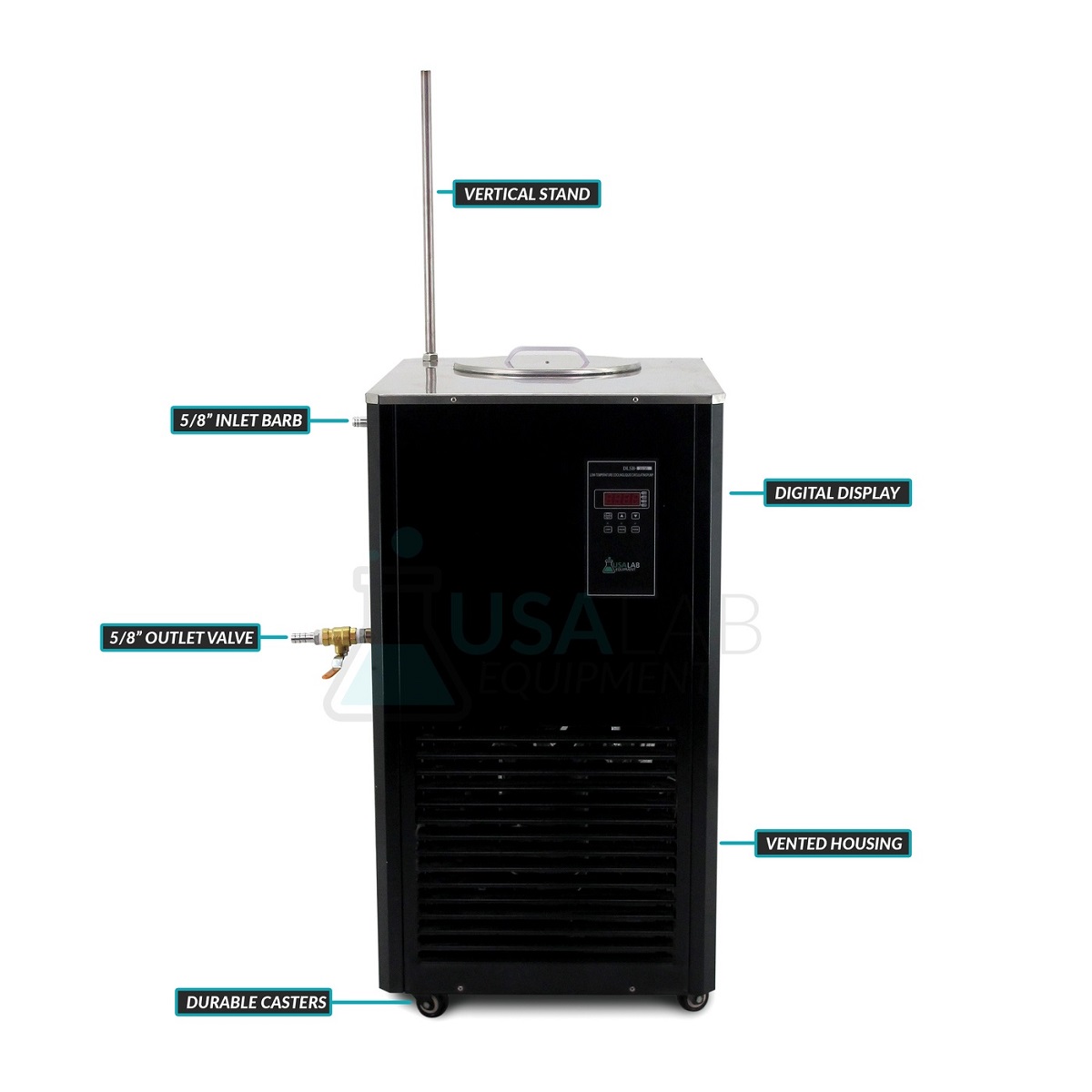

Chiller Diagram

DLSB-30/30 CHILLER SPECIFICATIONS

• Reservoir Capacity: 30L
• Reservoir Dimensions: 13.7″ x 13.7″
• Temperature Range: Room Temperature to -30°C / -22°F
• Power Requirements: 220v 60Hz 30A 2500W Single Phase
• Refrigerating BTUs: 4,000 BTU – 13,500 BTU
• Circulating Pump Wattage: 100w
• Temperature Accuracy: +/- 0.5°C
• Pump Flow: 30L/Min
• Pump Pressure: 2.2 bar
• Barb Size: 5/8″
• Refrigerant: R404
• Dimensions 30.3″ x 25.5″ x 39.7″
• Weight: 171 lbs

Weight 240 lbs
