USA Lab 2L Rotary Evaporator Turnkey Setup Rotovap RE-200A

$3,699.00

The USA Lab 2L RE-200A Series rotary evaporator Turn-Key kit recovers solvents efficiently and fast. This unit provides consistent and repeatable results at an affordable price. Model: RE-200ATK MPN: RE-200ATK

More Info

Out of stock

Share:

Overview

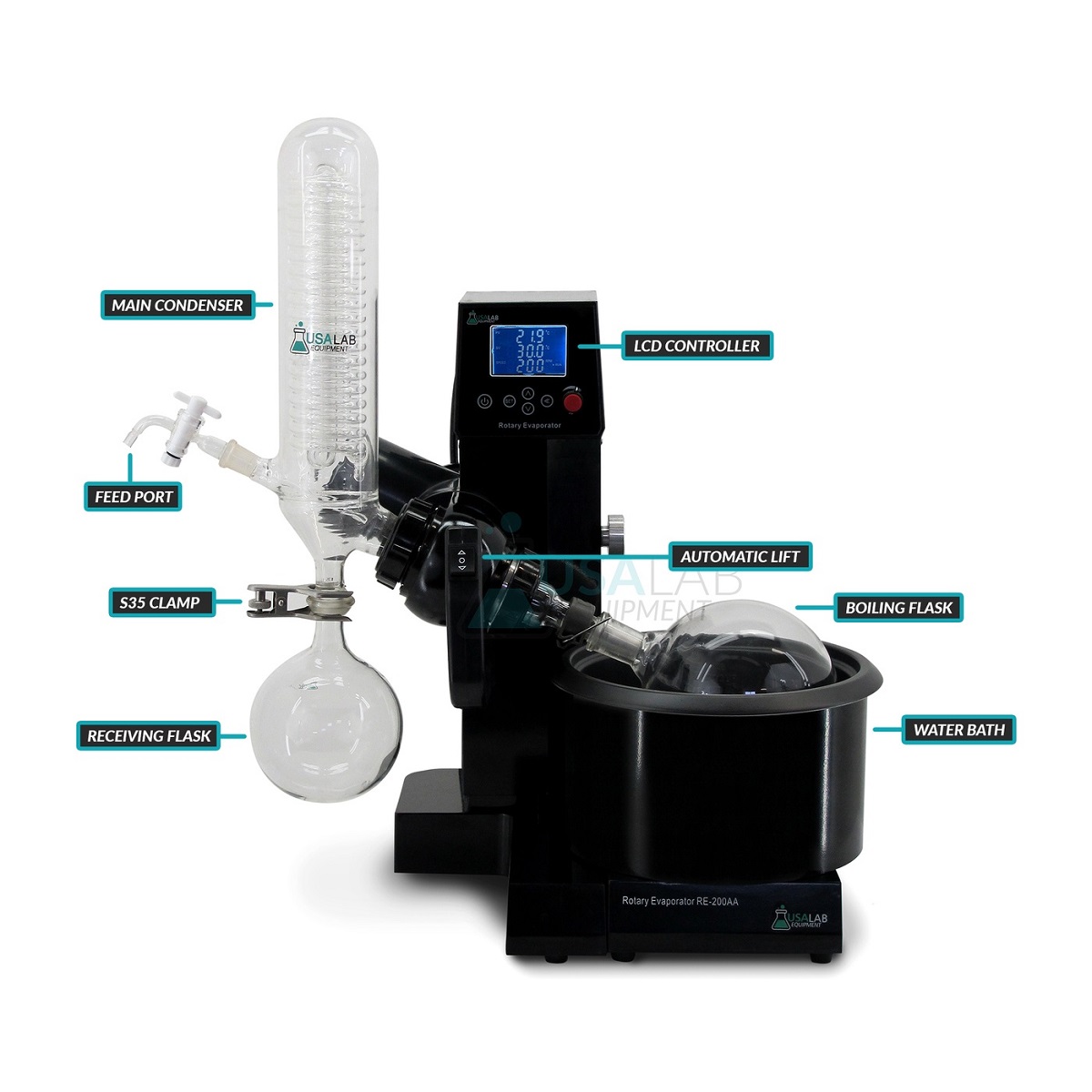

USA Lab 5L Rotovap RE-200A System

The RE-200A Evaporator is made with GG-17 High Borosilicate Glass, and has been designed for efficient use of surface area. This means faster recovery without compromising quality. USA Labs evaporators come standard with safety features such as over-temperature shut off and dry-run protection. All valves and ports are high efficiency allowing a continuous feed of material as well as draining the receiving flask without breaking vacuum.

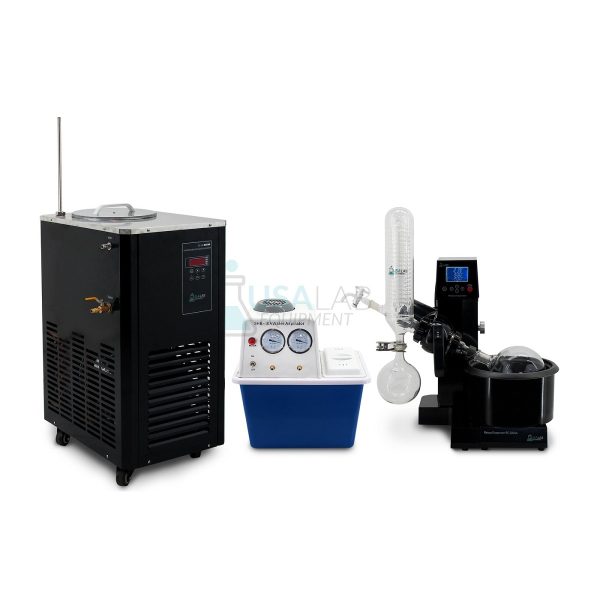

Complete System

2L RE-200A EVAPORATOR SPECIFICATIONS

• Glass Material: GG-17 Borosilicate Glass
• Evaporation Flask Capacity: 2L
• Collection Flask Capacity: 1L
• Rotary Speed: 0-180 RPM
• Bath Temperature Range: Room Temp 180°C / 356°F
• Lifting Mechanism: Automatic
• Power Requirements: 110v 60Hz 15A Single Phase
• Temperature Control Accuracy: +/-1°C
• Motor Wattage: 40w
• Heater BTUs: 5100 BTU
• Achievable Vacuum: -29.8 Hg
• Evaporating Capability: Alcohol ≥ 1 L/H
• Dimensions: 23.5″L x 16.5″W x 32.6″H
• Speed Regulation: Digital Step-Less
• Vacuum Barb: 1/2″
• Condenser Barb: 1/2″

System Chiller

DFY-5/10 CHILLER SPECIFICATIONS

• Reservoir Capacity: 5L
• Reservoir Dimensions: 8″ x 8″
• Temperature Range: Room Temperature to -10°C / 14°F
• Power Requirements: 110v 60Hz 12A Single Phase
• Refrigerating BTUs: 1,000 BTU – 4,500 BTU
• Circulating Pump Wattage: 100w
• Temperature Accuracy: +/- 0.5°C
• Pump Flow: 30L/Min
• Pump Pressure: 0.4 bar
• Barb Size: 1/2″
• Refrigerant: R404
• Dimensions 19″ x 14″ x 29″
• Weight: 100 lbs

Specifications

Weight 120 lbs
