The USA Lab 5L RE-1005 Series rotary evaporator Turn-Key kit recovers solvents efficiently and fast. This unit provides consistent and repeatable results at an affordable price.

Model: RE-1005TK
MPN: RE-1005TK

Loading...

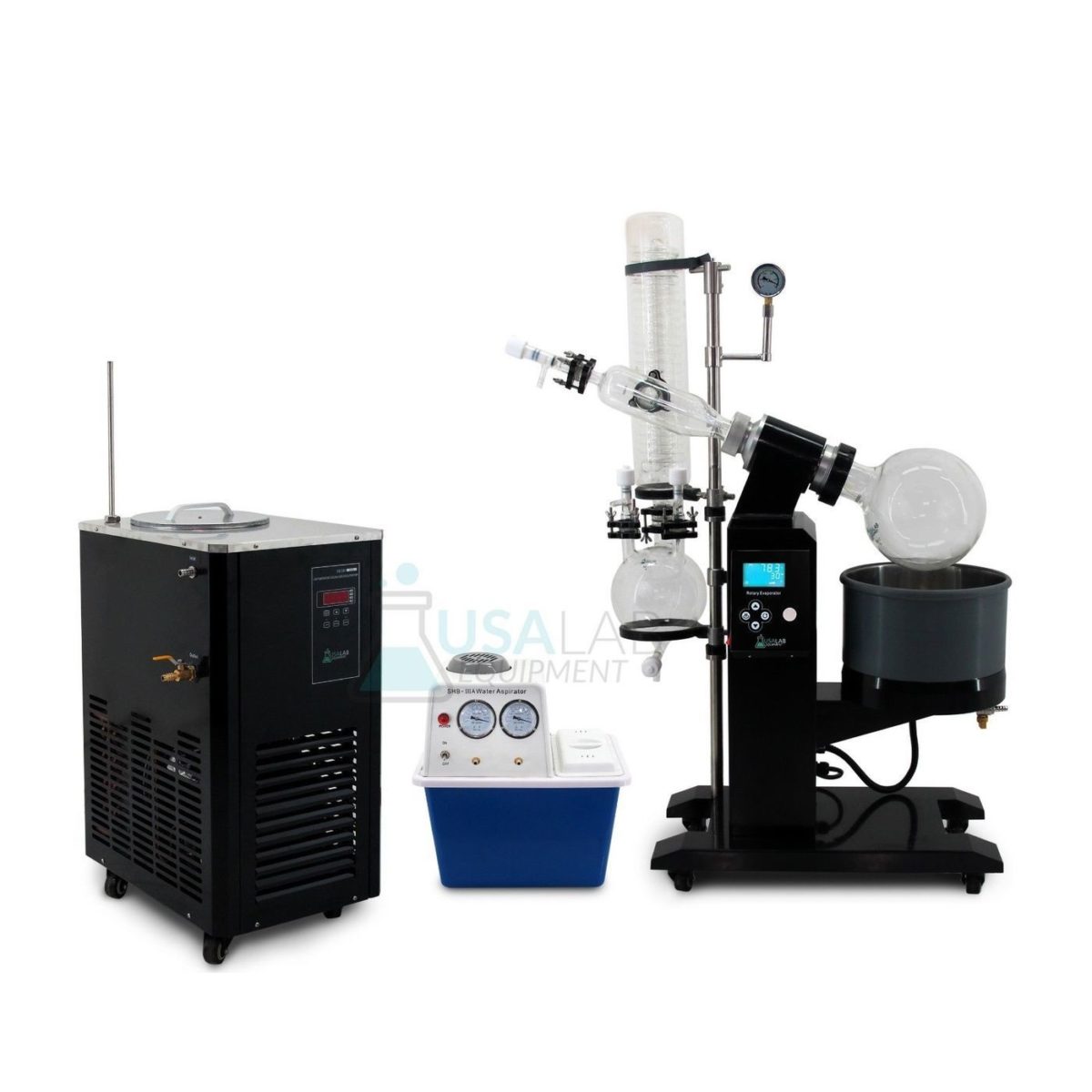

USA Lab 5L Rotovap RE-1005 System

The RE-1005 Evaporator is made with GG-17 High Borosilicate Glass, and has been designed for efficient use of surface area. This means faster recovery without compromising quality. USA Labs evaporators come standard with safety features such as over-temperature shut off and dry-run protection. All valves and ports are high efficiency allowing a continuous feed of material as well as draining the receiving flask without breaking vacuum.

ROTARY EVAPORATOR FLOW CHART

Flow Chart

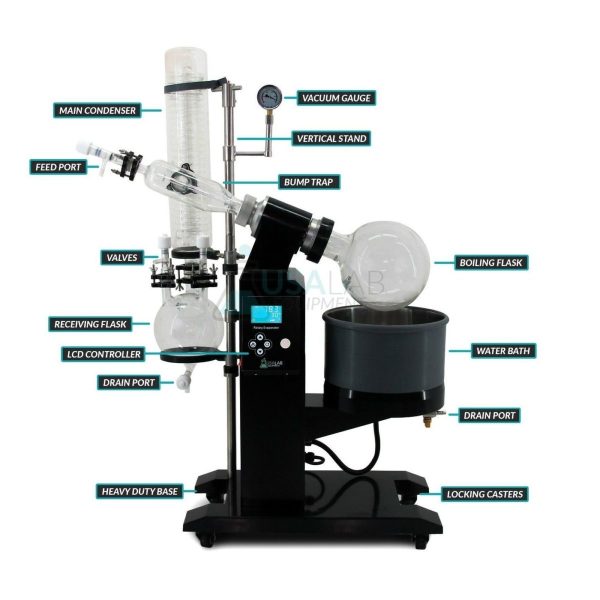

Rotovap Diagram

5L RE-1005 EVAPORATOR SPECIFICATIONS

• Glass Material: GG-17 Borosilicate Glass
• Evaporation Flask Capacity: 5L
• Collection Flask Capacity: 3L
• Rotary Speed: 10-120 RPM
• Bath Temperature Range: Room Temp 180°C / 356°F
• Lifting Mechanism: Electric
• Power Requirements: 110v 60Hz 20A Single Phase
• Temperature Control Accuracy: +/-1°C
• Motor Wattage: 40w
• Heater BTUs: 6800 BTU
• Achievable Vacuum: 399.9 Pa
• Evaporating Capability: Water ≥ 2L/H; Alcohol ≥ 4 L/H
• Water Bath Volume: 12L
• Dimensions: 35″L x 19″W x 53″H
• Condensing Glass Volume: Main: 0.27 m²
• Speed Regulation: Digital Step-Less
• Vacuum Barb: 13.3 mm
• Condenser Barb: 15.5 mm

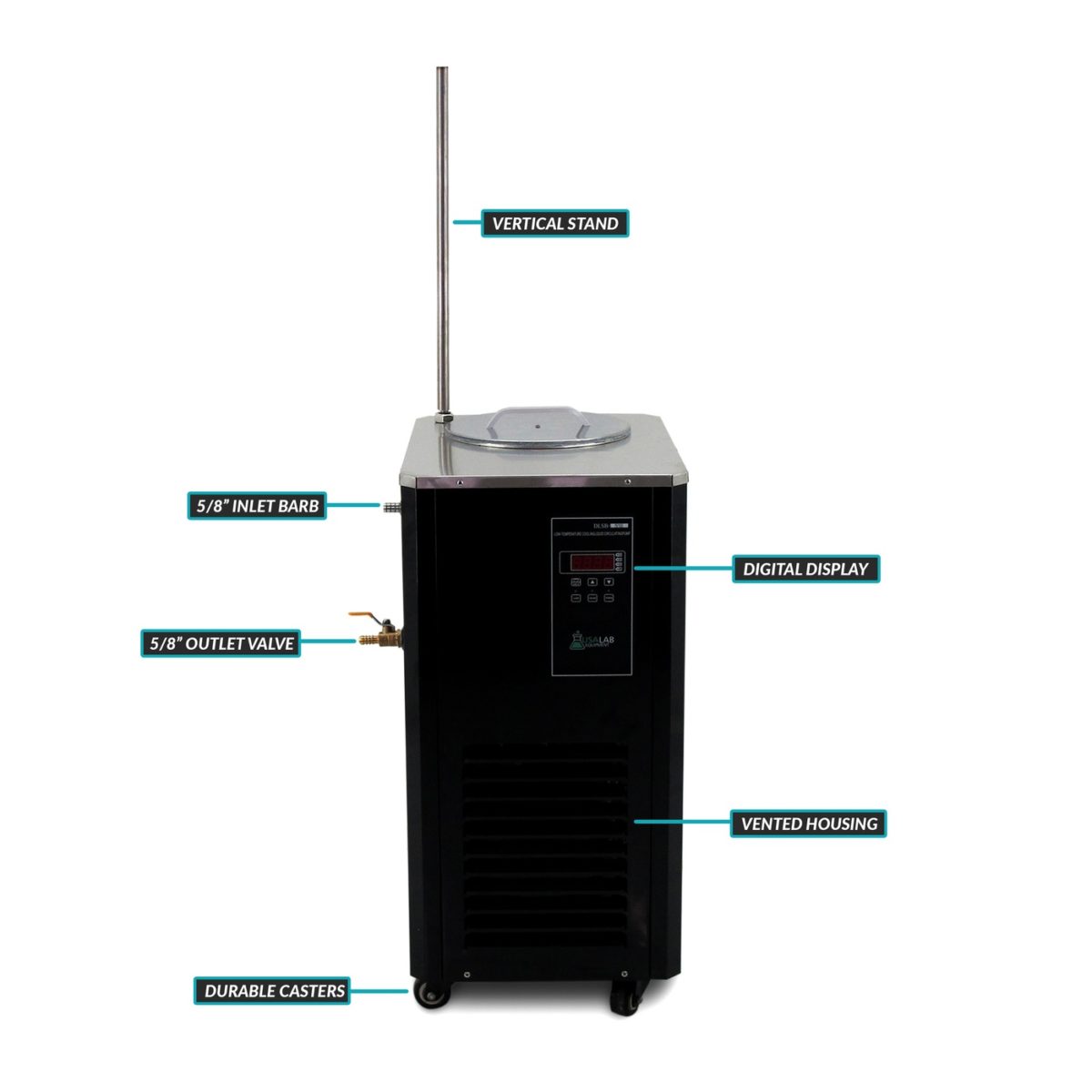

Chiller Diagram

DFY-5/10 HEATER / CHILLER SPECIFICATIONS

• Reservoir Capacity: 5L
• Reservoir Dimensions: 8″ x 8″
• Temperature Range: Room Temperature to -10°C / 14°F
• Power Requirements: 110v 60Hz 12A Single Phase
• Refrigerating BTUs: 1,000 BTU – 4,500 BTU
• Circulating Pump Wattage: 100w
• Temperature Accuracy: +/- 0.5°C
• Pump Flow: 30L/Min
• Pump Pressure: 0.4 bar
• Barb Size: 1/2″
• Refrigerant: R404
• Dimensions 19″ x 14″ x 29″
• Weight: 100 lbs

Weight 120 lbs
