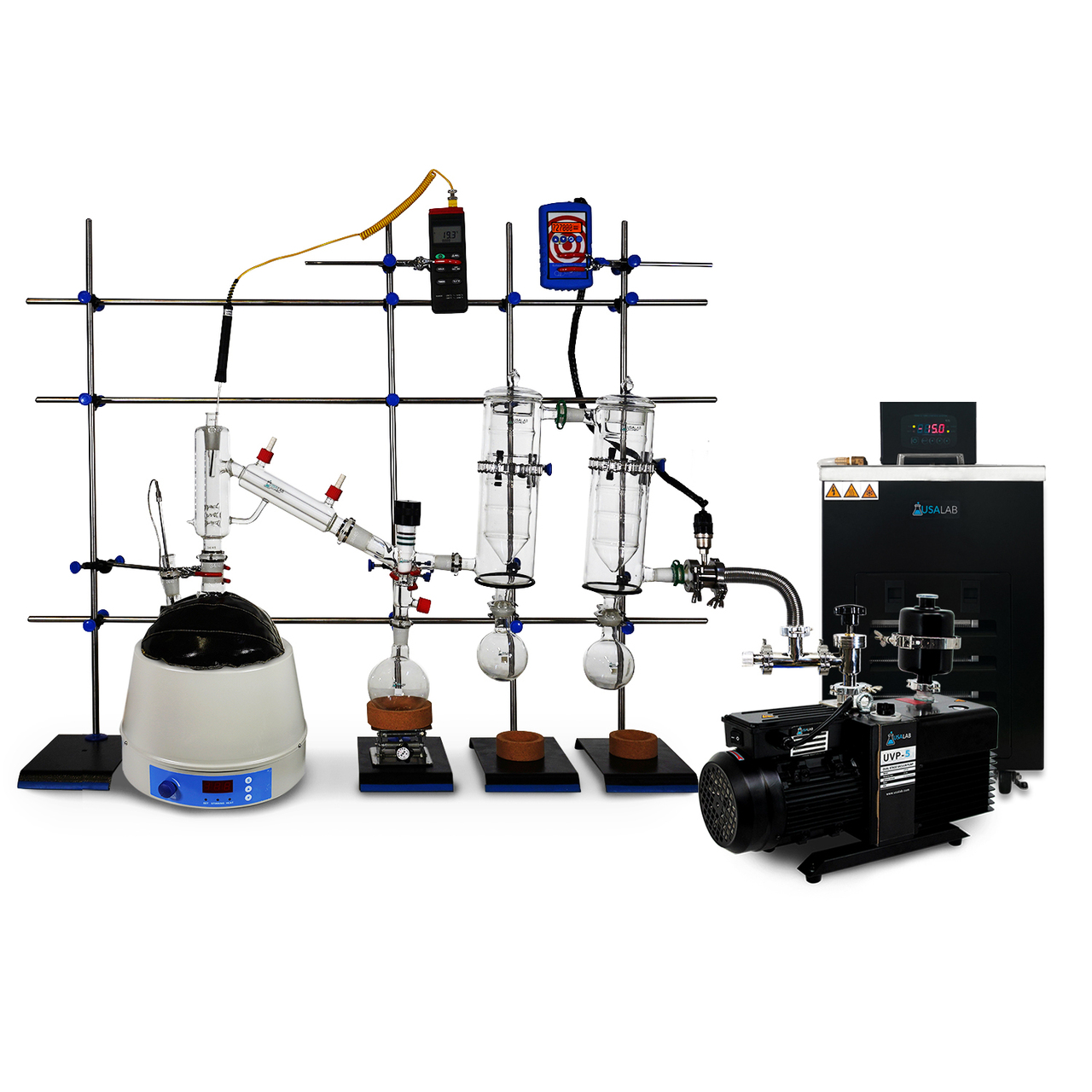

USA Lab H1-2 2L Full Bore Short Path Distillation Turnkey Kit

Loading...
From:

$7,399.00

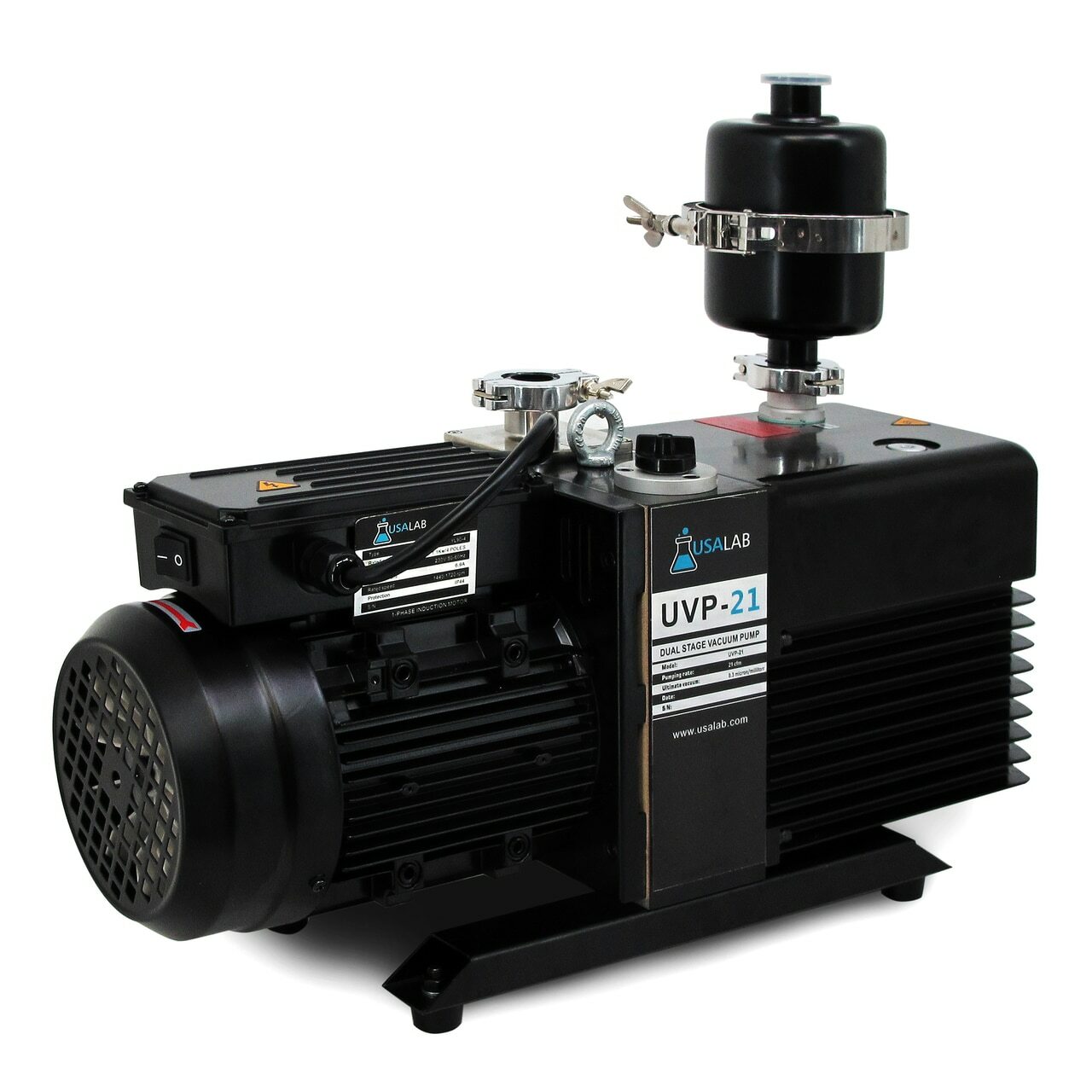

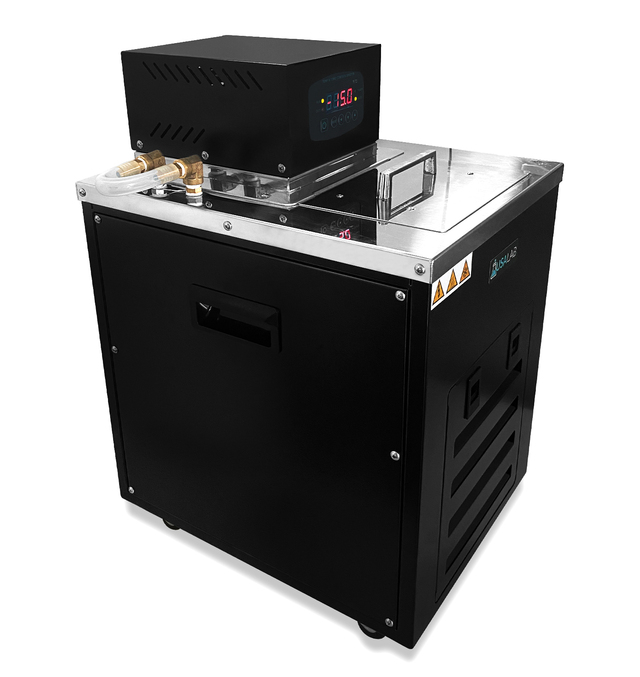

The USA Labs 2L Premium Turn Key Short Path Distillation Kit is made with high-quality Borosilicate glass and a specially designed head to allow for excellent distillation at a great value. Each glassware kit comes with a USA Lab -10°C to 99°C Heater Chiller and a USA Lab UVP-21 21 CFM Vacuum Pump. This kit is designed for high production and consistent results. Don’t spend all your money on overpriced distillation kits. Get started right away at a fraction of the cost!

  • Model Option:  H1-2 2L W/ Insulating Top – 300°C 1200RPM | 220-240V 60Hz 15A 450W (2LMANTLE)
  • SKU:  C-SD2L-H1TK-1



Loading...

USA Lab H1-2 2L W/ Insulating Top – 300°C 1200RPM | 220-240V 60Hz 15A 450W (2LMANTLE)

The USA Lab H1-2 2L Full Bore Short Path Distillation Kit is made with high quality borosilicate Glass and a wide 34/45 head to allow for excellent distillation, high production, and consistent results. This distillation kit comes with a large 34/45 distillation head, a 34/45 vacuum take-off adapter to allow for easy switching of receiving flasks, two 24/40 cold traps for large amounts of condensing, and full-bore attachments to allow for high pulling vacuum. Choose the best quality at the best value with this lattice supported high quality glass distillation kit.

  • SKU: C-SD2L-H1TK-1
  • Shipping: Calculated at Checkout
  • Flask Sizes: 2L / 34/45 Main | 24/40 Side
  • Head Joint Size: 34/45 Bottom | 24/40 Top | 34/45 Side
  • Isolation Adapter Joint Sizes: 34/45 Inlet | 24/40 Outlet | 24/40 Bottom Discharge
  • Left Cold Trap Joint Sizes: Male 24/40
  • Right Cold Trap Joint Sizes: Female 24/40
  • Optimal Capacity: 400-1000mL
  • Batch Time: 4-8 Hours
  • Main Body Flow Rate: 100-400 grams/hour
  • 2LMANTLE Mantle Power: 220-240V 50/60Hz 15A
  • USA-HM-5L Mantle Power: 110-120V 50/60Hz 15A
  • Heater Chiller Power: 110-120V 50/60Hz 15A
  • Vacuum Pump Power: 110-120V 50/60Hz 15A
  • Warranty: 1 Year



SPECIFICATIONS
Model C-SD2L-H1TK
Flask Size 2L / 2000ML
Flask Joint Sizes 34/45 Main | 24/40 Side
Distillation Head Joint Sizes 34/45 Bottom | 24/40 Top | 34/45 Side
Isolation Adapter Joint Sizes 34/45 Inlet | 24/40 Outlet | 24/40 Bottom Discharge
Left Cold Trap Joint Sizes 24/40
Right Cold Trap Joint Sizes 24/40
Optimal Capacity 400-1000mL
Batch Time 4-8 Hours
Main Body Flow Rate 100-400 grams/hour
Footprint 80x24x40(inch) Including Pump / Chiller
Heating Mantle Power 220-240V 450 2A 6-15P Plug Installed
Warranty 1 Year (Pump is a 2 year warranty)



PACKING LIST
Model  Quantity
2L Mantle (Options) 1
USA Lab UVP-5 5CFM Vacuum Pump 110V 1
USA Lab USA-RHC-7L -20 to 150C Heater Chiller 1
DigiVac Bullseye Vacuum Gauge 1
Digital K-type Thermometer w/ Probe 1
2L Thermal Shield USA Lab (Only for SKU:2LMANTLE) 1
Apiezon PFPE 501 Vacuum Grease 100g 1
2L RBF – 2 neck 24/40 and 34/45 Center 1
2L 34/45 H1-2 Distillation Head 1
250ML RBF – 1 Neck 24/40 2
500ML RBF – 1 Neck 24/40 1
34/45 Isolation Adapter 1
24/40 Male Cold Trap 1
24/40 female Cold Trap 1
Cold Trap Lid 2
S35/20 250ml RBF 2
2L Flask Thermowell 24/40 1
2L Head Thermowell 24/40 1
GL-18 Connection 4
34/45 Keck Clamp 2
24/40 Keck Clamp 4
Red Large Clamp Retort 3 Prong 4
Chain Clamp for Lab Stand 2
Stainless Steel S35 Pinch Clamp 2
4″ Diameter Extension Support Ring 2
Boss Head Clamp 18
Small Cork Stand 2
Medium Cork Stand 1
6″x8″ Lab Stand 4
4″x4″ Lab Jack 1
48″ SS Rod 3
KF25 to 24/40 PTFE Adapter 1
KF-25 to KF-25 x 1/8″ FNPT Adapter 1
KF25 Bellow Hose 24″ 1
KF25 Bellow Hose 48″ (for optional cold trap) 1
KF25 3-Way Tee 1
KF25 Pressure Release Valve 1
KF25 Right Angle Valve 1
KF25 Wing Nut Clamp 4
KF25 Vacuum Pump Centering Ring 4
Silicone Hosing 3/8″ 10ft
Mantle Manual 1
Pump Manual 1
Heater Chiller Manual 1
Weight 320 lbs
