Under Current UCDB16XL13 System

From: $3,587.52

The massive Under Current Double Barrel 16XL13 is capable of growing plants over 6′ tall! The Under Current is the worlds first re-circulating Deep Water Culture Hydroponic System featuring our Patent Pending Sub-Current Culture Method. This innovative application circulates literally hundreds of gallons of solution per hour beneath plant roots. The Under Current supercharges the solution with dissolved oxygen, creating a hyper aerobic condition. Constant, 24/7 nutrient circulation ensures that pH and EC are uniform throughout the entire system.

Features:

  • Easy and reliable, no timers, no guesswork. Reduces labor & maintenance.

  • Greenhouse grade heavy-duty construction, water level marks, recessed drain wells, raised body for thermal cooling, and a smooth interior for easy cleaning.

  • Designed and manufactured in California.

Description

Under Current UCDB16XL13 System – From the Manufacturer:

The Under Current system is the world’s only recirculating water culture hydroponic system to feature CCH2O’s patented Sub-Current Culture circulation method.

Sub-Current Culture technology utilizes negative water pressure to recirculate highly oxygenated nutrient solution through the plant’s root zone. This continuous fluid motion supercharges the nutrients with dissolved oxygen, creating hyper-aerobic conditions perfect for explosive plant growth. Constant 24/7 nutrient circulation ensures pH and EC levels are uniform throughout the entire system.

CCH2O unique water culture application is unprecedented in layout versatility and ease of use. The Under Current consistently delivers awe-inspiring yields for any sized application, from hobby to commercial greenhouse.

UCDB16XL13 System Includes:

  • 13 Gallon Blackout Series Growth Modules
  • New – CCH2O Multi Mod Epicenter Control Module
  • New – CCH2O 5.5″ Heavy Duty Lids with Port Hole
  • New – CCH2O 5.5″ Heavy Duty Net Pots
  • New – High Flow 2″ Manifold & Joints with 2″ UC Spin-Tight Bulkheads
  • Premium Danner Mag-Drive™ Return Pump
  • Premium Linear Air Pump(s)
  • 9″ Air Diffuser Disc
  • Aqua-Pore Air Diffusers
  • Air Distribution Manifold
  • Air Hose, In-Line Filter(s)
  • Adjustable Float Valve with Reservoir Adapter Kit.

*Boneless Spacing Option: All Under Current systems are available in a “Boneless” configuration. Boneless systems ship WITHOUT straight sections of piping allowing for custom plant spacing.

*Remote Epicenter Option: All Under Current systems are available with a “Remote Epicenter” option. This allows growers to place the Epicenter (control module) on the outside of their grow space or tent.

*Please note: Both of the above-noted options require the separate purchase and installation of PVC pipe. If you are interested in these options, please call us at 1-866-710-GROW(4769) Monday-Friday, 9:00-5:00 Eastern to place your order, and we will be glad to assist.

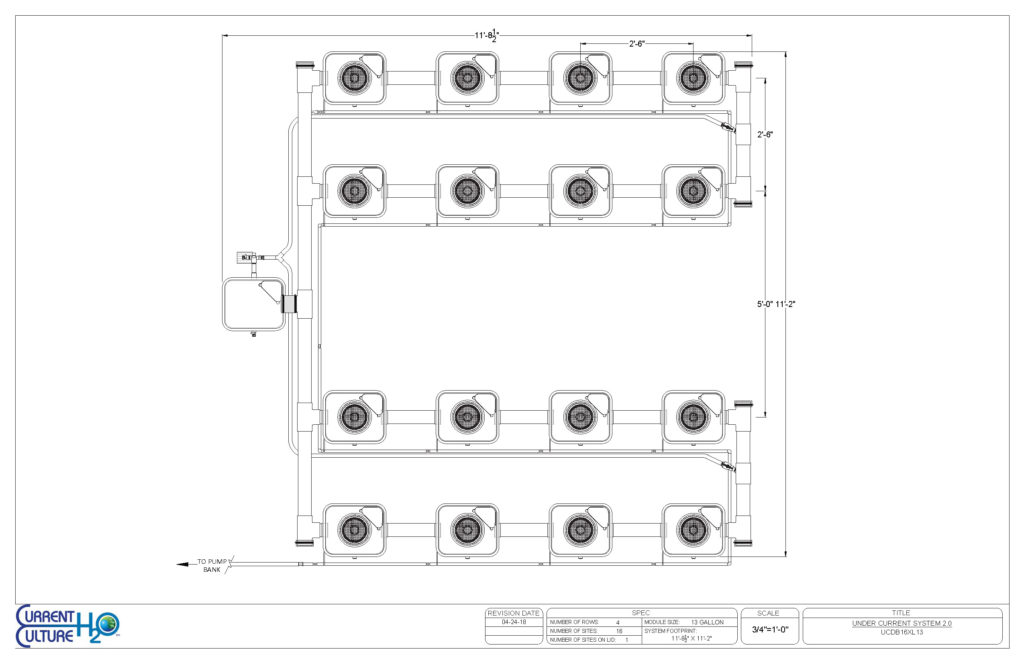

DB16XL13 Specifications:

NUMBER OF ROWS: 4
NUMBER OF SITES: 16
SYSTEM FOOTPRINT (FEET / METERS): 11’2″ x 11’8.5″ / 3.4m x 3.57m
TOTAL SYSTEM VOLUME (GALLONS / LITERS): 120 / 455
POWER USAGE (WATTS): 203
AIR PUMP SIZE(S) (LPM): (1)30, (1)80
AERATION RATE (LPM PER GALLON): 0.92
WATER PUMP SIZE (GPH / LPH): 950 / 3597
RECIRCULATION RATE (EXCHANGES PER HR.): 7.92

DB16XL13 Recommendations:

GROW AREA (FEET / METERS): 12′ x 12′ / 3.66m x 3.66m
LIGHTING (HORIZONTAL): 4 X 1000W
LIGHTING (VERTICAL): N/A
WATER CHILLER SIZE* (HP): 1/4 – 1/2 HP
RESERVOIR (GALLONS / LITERS): 125 / 500
VEG TIME (WEEKS/IN.): 2-3 weeks / 18″-24″
*General Recommendation – Check Manufacturers Specifications for proper chiller sizing.

Additional information

Weight 240 lbs
Brand

System Type

Planting Sites

Module Capacity
