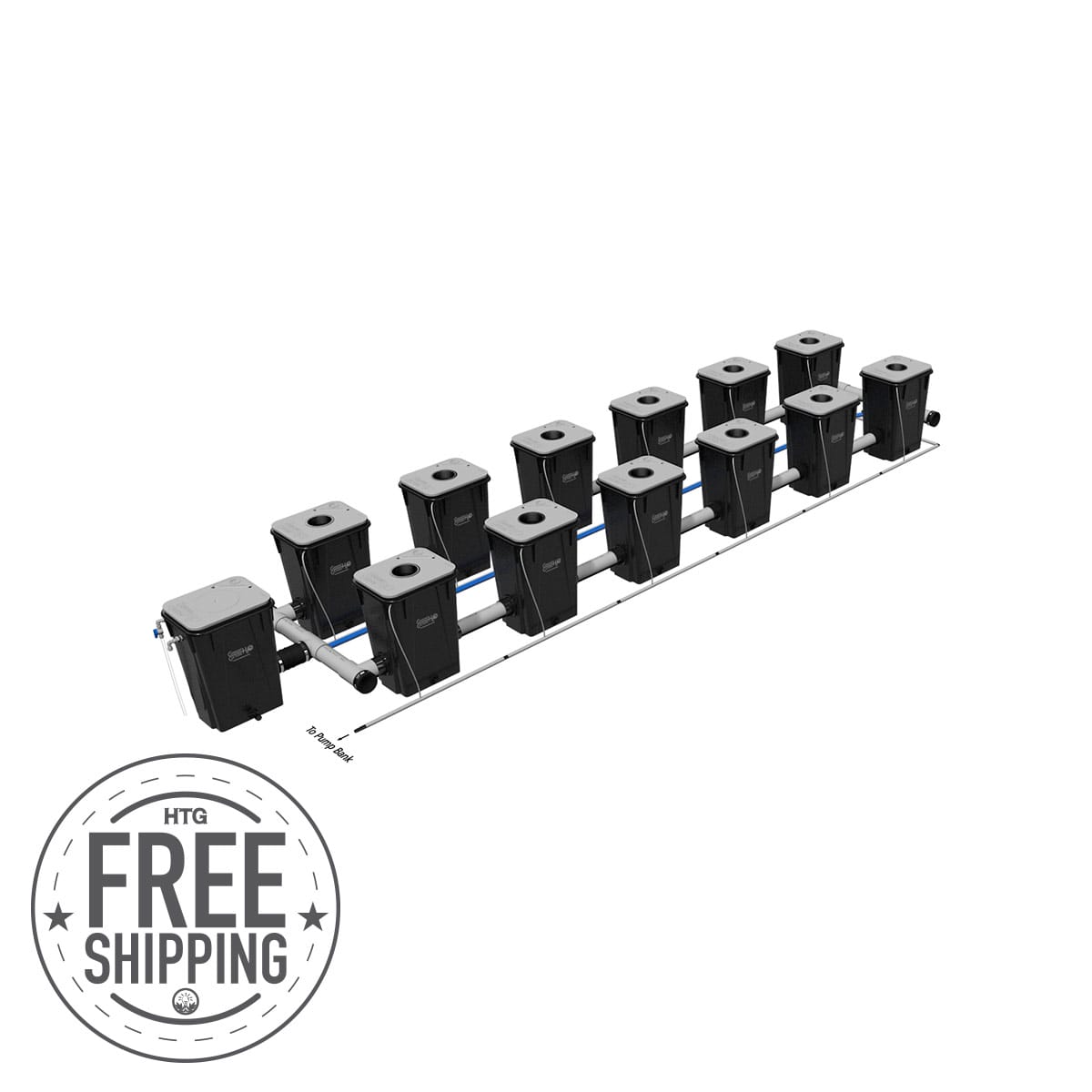

Under Current UC12XL13 System

Starting At: $3282.98

SKU: HYD-UC-12XL13-B

The Under Current UC12XL13 is the ideal 12-site hydroponics system for medium to larger plant sizes. A variation of the standard 12-site Under Current system, the UC12XL13 offers larger 13-gallon growth modules as well as expanded 30" plant spacing. On top of the features typically found in traditional DWC hydroponics systems, the UC12XL13 utilizes the patented CCH2O Sub-Current Culture system. This unique recirculating element provides constant circulation of hydroponic nutrients for outstanding growth and big harvests. Features:

  • Easy and reliable, no timers, no guesswork. Reduces labor & maintenance.
  • Greenhouse grade heavy-duty construction, water level marks, recessed drain wells, raised body for thermal cooling, and a smooth interior for easy cleaning.
  • Designed and manufactured in California.


More Info

-

Share:

Overview

Under Current UC12XL13 System – From the Manufacturer:

The Under Current system is the world’s only recirculating water culture hydroponic system to feature CCH2O’s patented Sub-Current Culture circulation method.

Sub-Current Culture technology utilizes negative water pressure to recirculate highly oxygenated nutrient solution through the plant’s root zone. This continuous fluid motion supercharges the nutrients with dissolved oxygen, creating hyper-aerobic conditions perfect for explosive plant growth. Constant 24/7 nutrient circulation ensures pH and EC levels are uniform throughout the entire system.

CCH2O unique water culture application is unprecedented in layout versatility and ease of use. The Under Current consistently delivers awe-inspiring yields for any sized application, from hobby to commercial greenhouse.

UC12XL13 System Includes:

  • 13 Gallon Blackout Series Growth Modules
  • New – CCH2O Multi Mod Epicenter Control Module
  • New – CCH2O 5.5″ Heavy Duty Lids with Port Hole
  • New – CCH2O 5.5″ Heavy Duty Net Pots
  • New – High Flow 2″ Manifold & Joints with 2″ UC Spin-Tight Bulkheads
  • Premium Danner Mag-Drive™ Return Pump
  • Premium Linear Air Pump(s)
  • 9″ Air Diffuser Disc
  • Aqua-Pore Air Diffusers
  • Air Distribution Manifold
  • Air Hose, In-Line Filter(s)
  • Adjustable Float Valve with Reservoir Adapter Kit.

*Boneless Spacing Option: All Under Current systems are available in a “Boneless” configuration. Boneless systems ship WITHOUT straight sections of piping allowing for custom plant spacing.

*Remote Epicenter Option: All Under Current systems are available with a “Remote Epicenter” option. This allows growers to place the Epicenter (control module) on the outside of their grow space or tent.

*Please note: Both of the above-noted options require the separate purchase and installation of PVC pipe. If you are interested in these options, please call us at 1-866-710-GROW(4769) Monday-Friday, 9:00-5:00 Eastern to place your order, and we will be glad to assist.

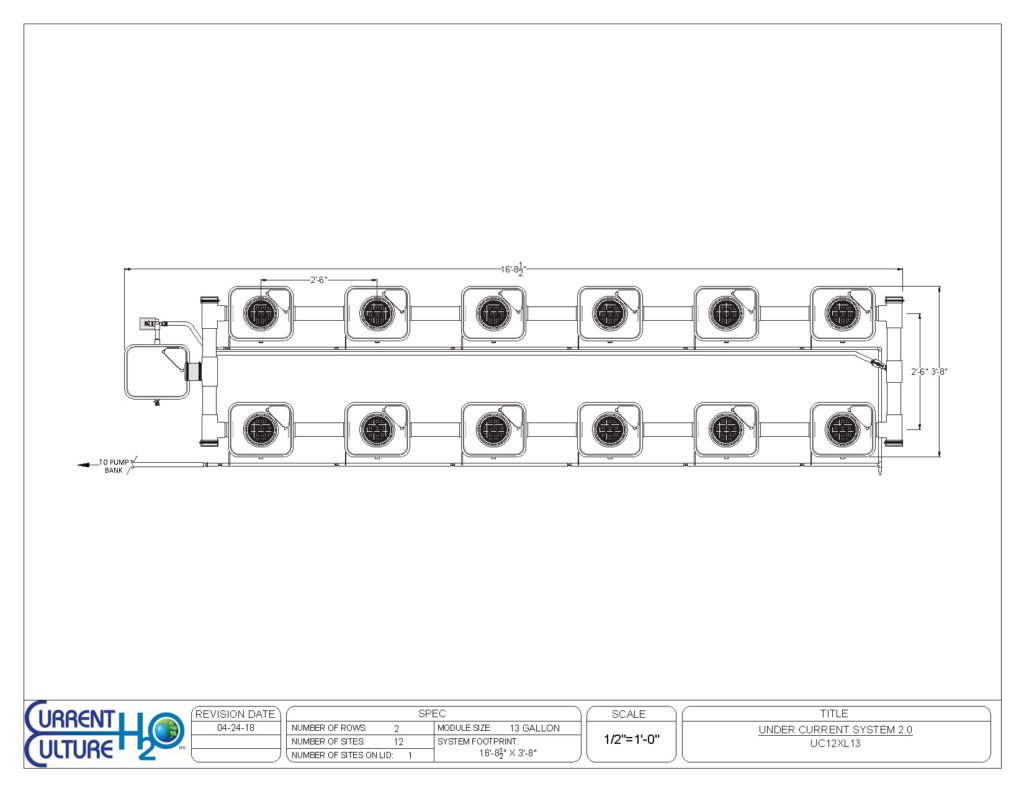

UC12XL13 Specifications:

NUMBER OF ROWS: 2
NUMBER OF SITES: 12
PLANT SPACING & MODULE SIZE: 30″ Centers / 13 Gallon
SYSTEM FOOTPRINT (FEET / METERS): 3’8″ x 16’8.5″ / 1.12m x 5.09m
TOTAL SYSTEM VOLUME (GALLONS / LITERS): 145 / 549
POWER USAGE (WATTS): 223
AIR PUMP SIZE(S) (LPM): (1)30, (1)100
AERATION RATE (LPM PER GALLON): 0.9
WATER PUMP SIZE (GPH / LPH): 950 / 3597
RECIRCULATION RATE (EXCHANGES PER HR.): 6.55

UC12XL13 Recommendations:

GROW AREA (FEET / METERS): 6′ x 22′ / 1.83m x 6.7m
LIGHTING (HORIZONTAL): 3 X 1000W
LIGHTING (VERTICAL): N/A
WATER CHILLER SIZE* (HP): 1/4 – 1/2 HP
RESERVOIR (GALLONS / LITERS): 150 / 600
VEG TIME (WEEKS/IN.): 3-5 weeks / 24″-36″

*General recommendation. Check manufacturers specifications for proper chiller sizing.

Specifications

Weight 70 lbs
System Type

Product Category

Hydroponics

Planting Sites

Module Capacity
