Aqua-X WD-1 Water Detector


SAVE $18.55 (25%)

The Trolmaster WD-1 Water Content is a versatile device that detects the presence of water. Growers can use the WD-1 to monitor the floor or space for leak detection or as a water verification monitor that sends "irrigation failure" alerts when water is not detected. Whatever your needs are the WD-1 Water Detector is a staple for any Aqua-X user. The WD-1 is part of the Aqua-X Irrigation Control System, a series of integrated hydroponic control systems Up to 25 WSC-1 connect to the Aqua-X.

  • PACKAGE CONTAINS: 1 x Water Content Sensor, 1 x RJ12 T-Splitter, 1 x 16ft RJ12 Cable
  • Working Environment: Temperature 32-122°F, Humidity=90%
  • LCD Display, Easy Operation

More Info

In stock

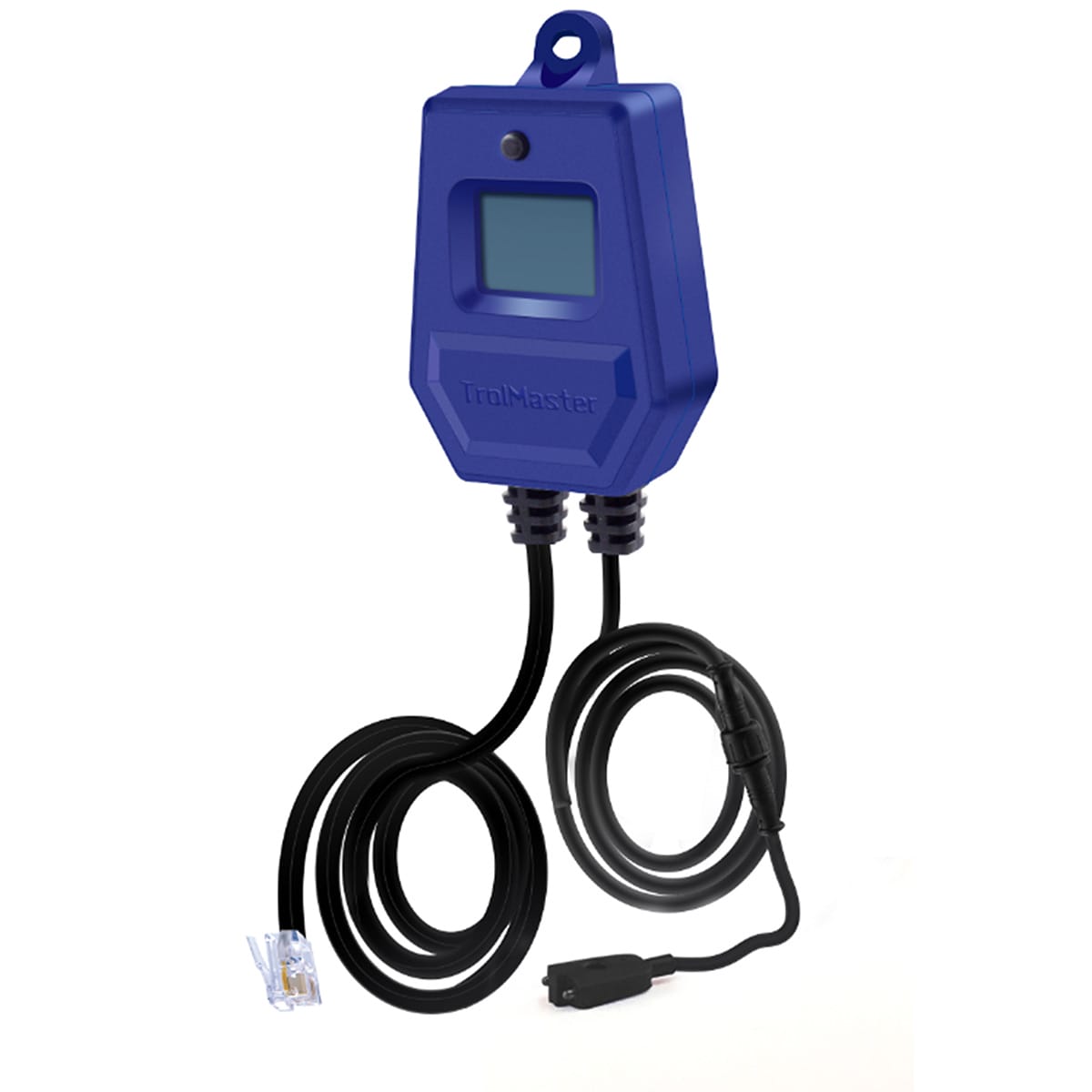

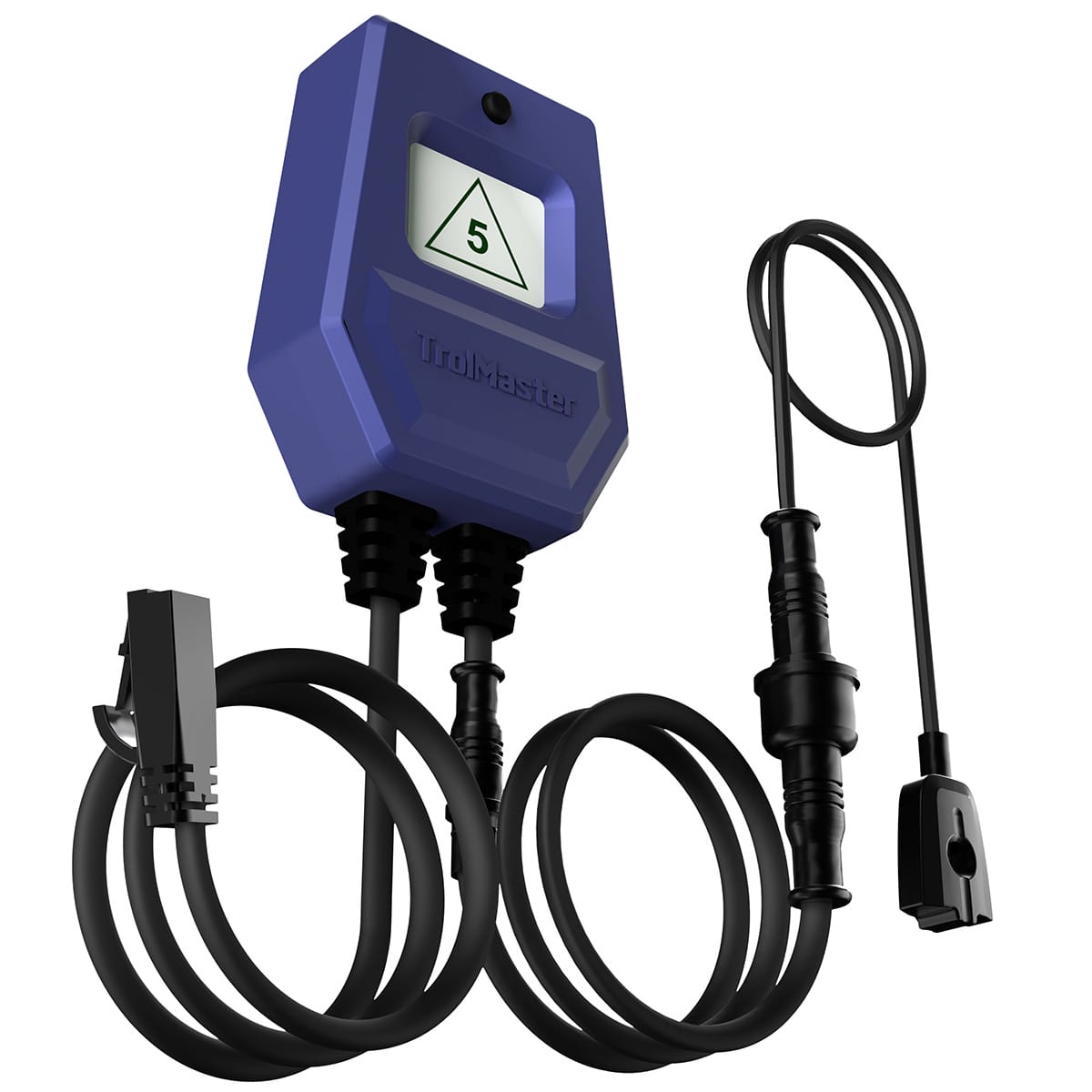

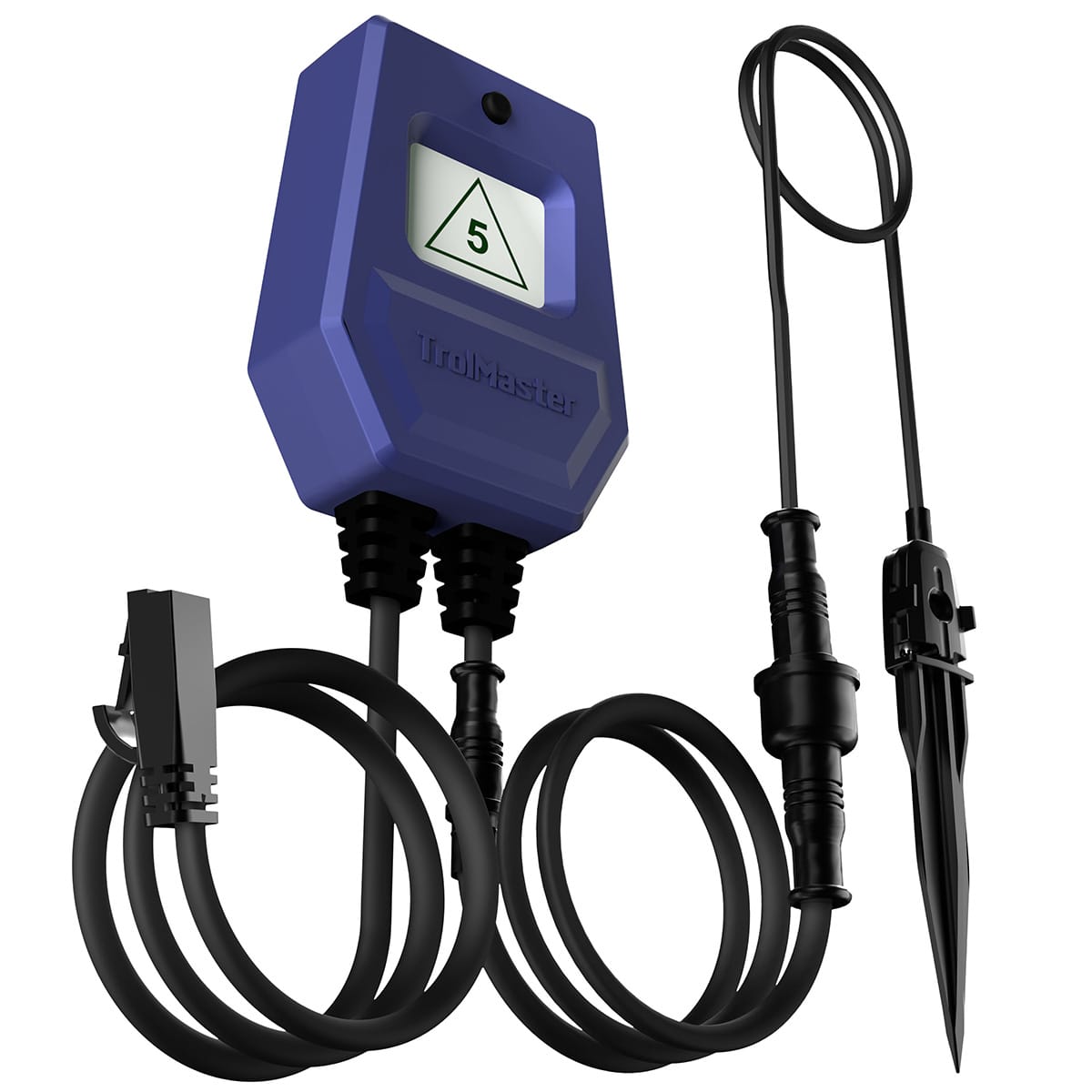

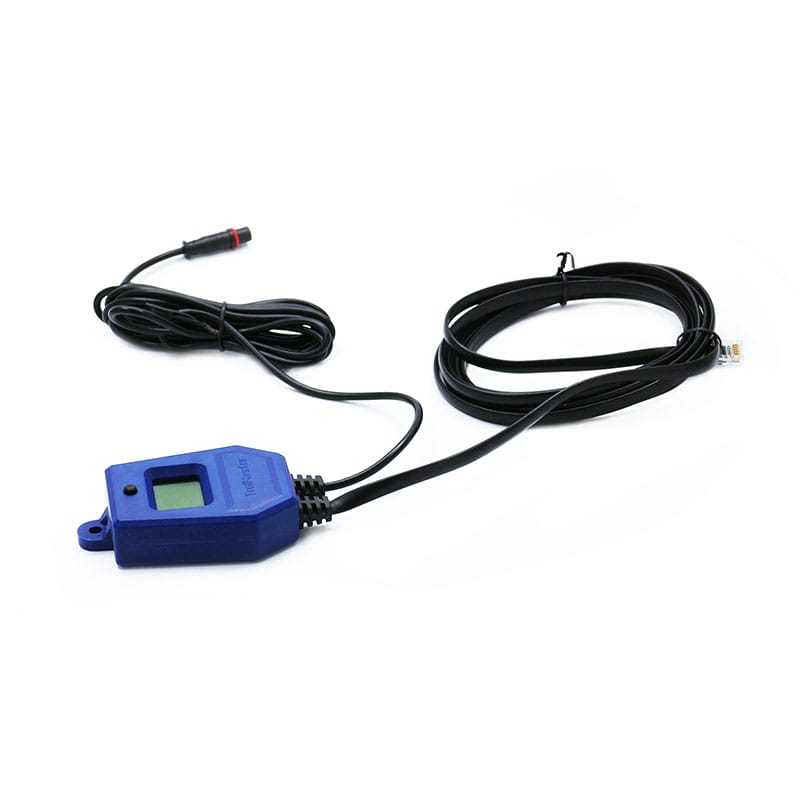

Aqua-X WD-1 Water Detector

The WD-1 water detector can be used in one of two ways. First, it can be used to simply monitor the floor or a space for water…as a leak-detector. The other way the WD-1 can be used is as a water-verification monitor. When used in this way, the water detector is placed where runoff will accumulate (or where water is being introduced to the growing medium). Each output (solenoid or pump) on the Aqua-x can be “assigned” to a specific WD-1. Every time the solenoid or pump assigned to the WD-1 is activated by the Aqua-X, the WD-1 must detect water within an adjustable delay time. If water is not detected (pump or solenoid failure) the Aqua-x will send out a user alert notifying of the “irrigation failure”. Up to 25 WD-1 can be connected to a single Aqua-X.

Use two water detectors (WD-1/2) to activate the new Auto-Fill function on the Aqua-X Pro. One water detector will be positioned at the bottom of the nutrient tank and one at the top of the tank. When the liquid level drops below the bottom sensor, the Aqua-X Pro will activate a solenoid, or pump and the tank will fill back up to the sensor at the top.

PACKAGE CONTAINS: 1 x Water Detector, 1 x Touch Spot, 1 x RJ12 T-Splitter, 1 x 16ft RJ12 Cable


  • LCD Display, Easy Operation
  • Addressing Button

Technical Specifications and Documents:

  • Working Environments: Temperature 32°-122°F, Humidity=90%
  • Package Dimensions: 160mm(L) x 86mm(W) x 86mm(H)

View WD-1 Water Detector Cut Sheet


Weight 0.75 lbs
Dimensions 6.3 × 3.39 × 3.39 in
