Hydro-X DST-1 Temperature Device Station

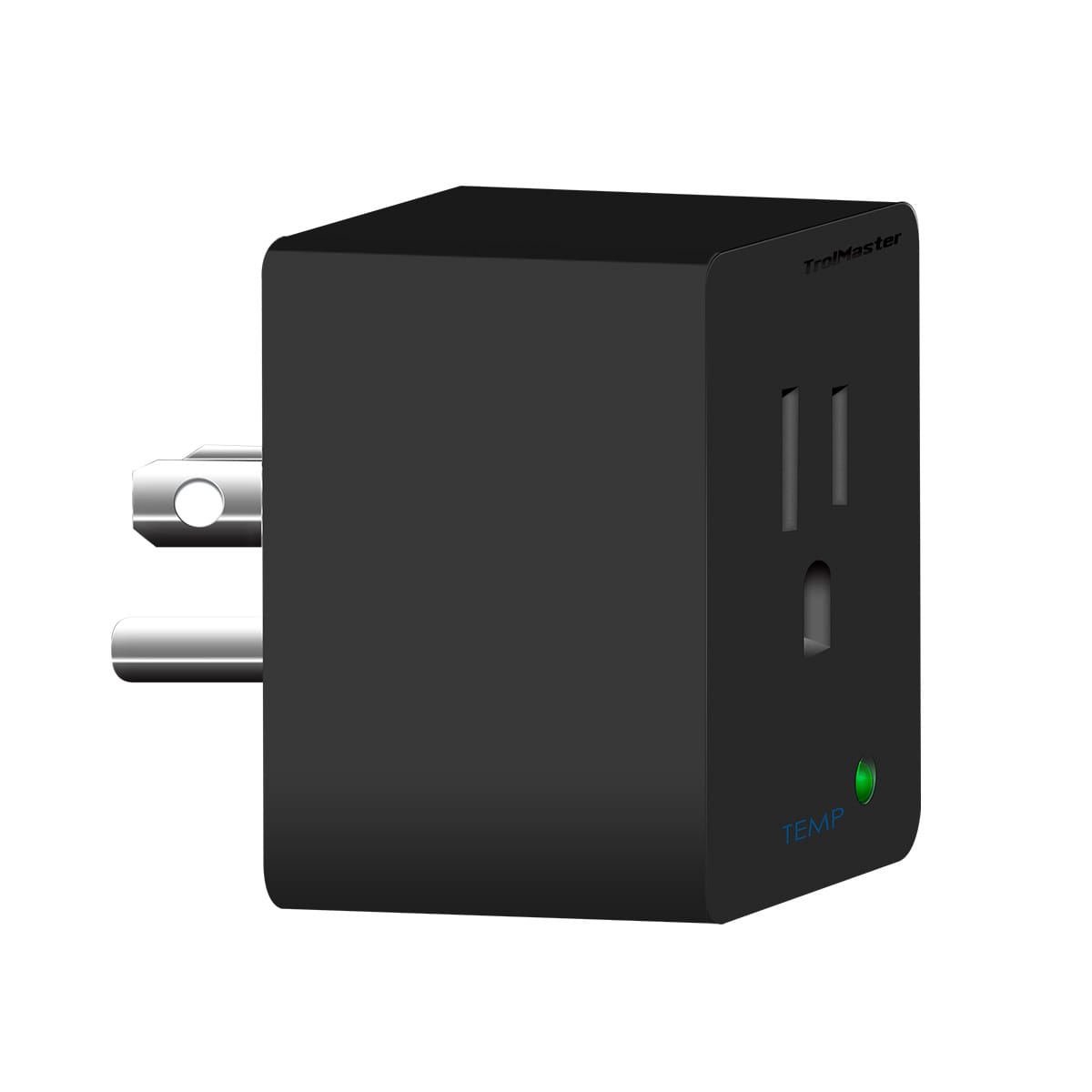

The Trolmaster DST-1 Temperature Device Station is a module wall plug that connects a standard heating or cooling system to the Hydro-X. Controls any heating or cooling device operating under the world voltage standard 100-240VAC, 50/60HZ, up to 10-amps. Built-in LED indicator shows connection status to Hydro-X system. This temperature device station is part of the Hydro-X Environmental Control System, a series of integrative environmental controllers.

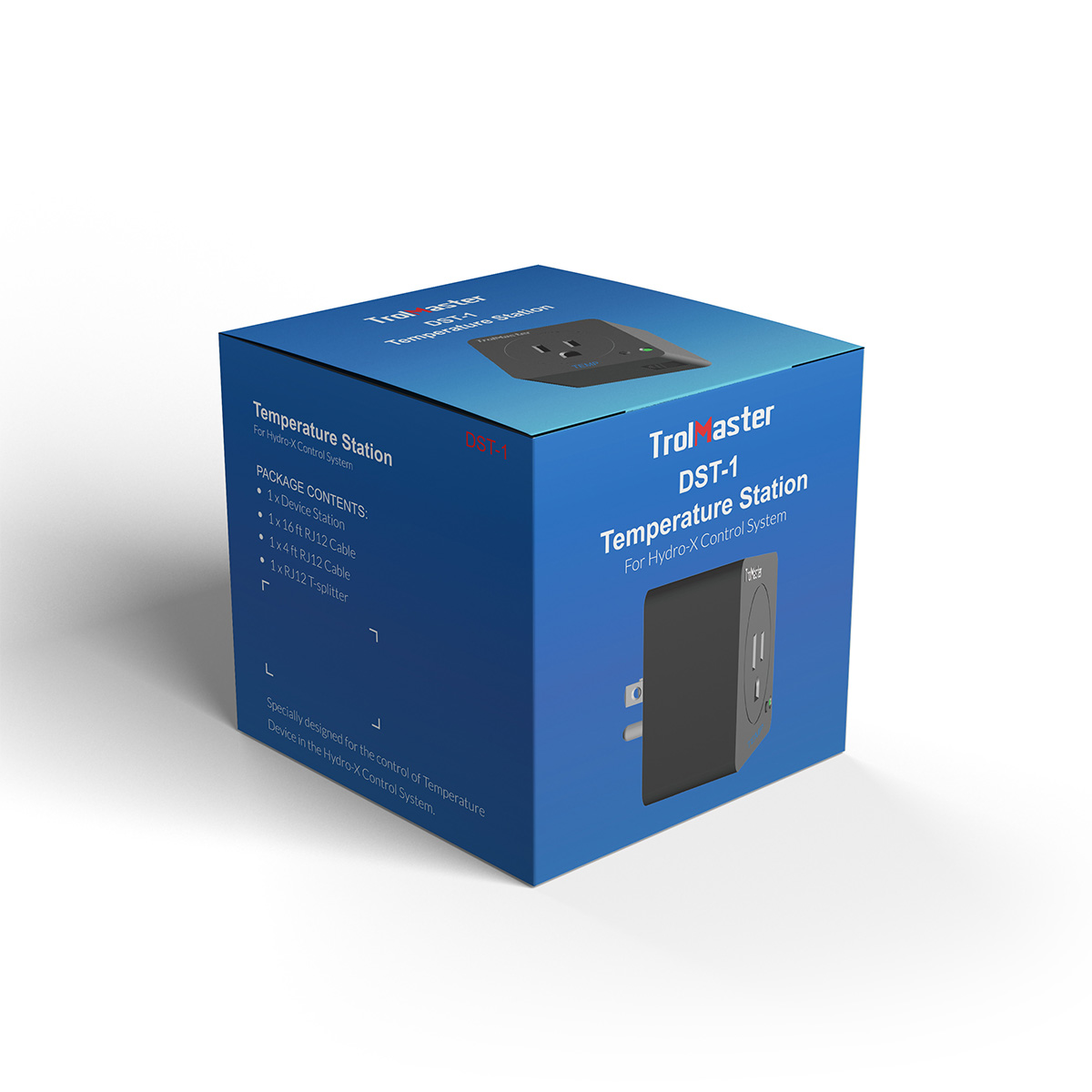

- PACKAGE CONTAINS: 1 x Device Station (DST-1), 1 x 16ft RJ12 Cable, 1 x 4ft RJ12 Cable, 1 x RJ12 T-Splitter
- Working Environment: Temperature 32-122°F, Humidity=90%
- Power: 100~240VAC, 50/60Hz | 10A
In stock
-
Overview
Hydro-X DST-1 Temperature Device Station
The TrolMaster DST-1 Temperature control modules allow the user to easily connect and control standard heating or cooling devices to the Hydro-x. This module allows control of any heating or cooling device under the world voltage standard (100-240 VAC, 50/60 Hz), up to 10-amps.
PACKAGE CONTAINS: 1 x Device Station, 1 x 16ft RJ12 Cable, 1 x 4ft RJ12 Cable, 1 x RJ12 T-Splitter
Features:

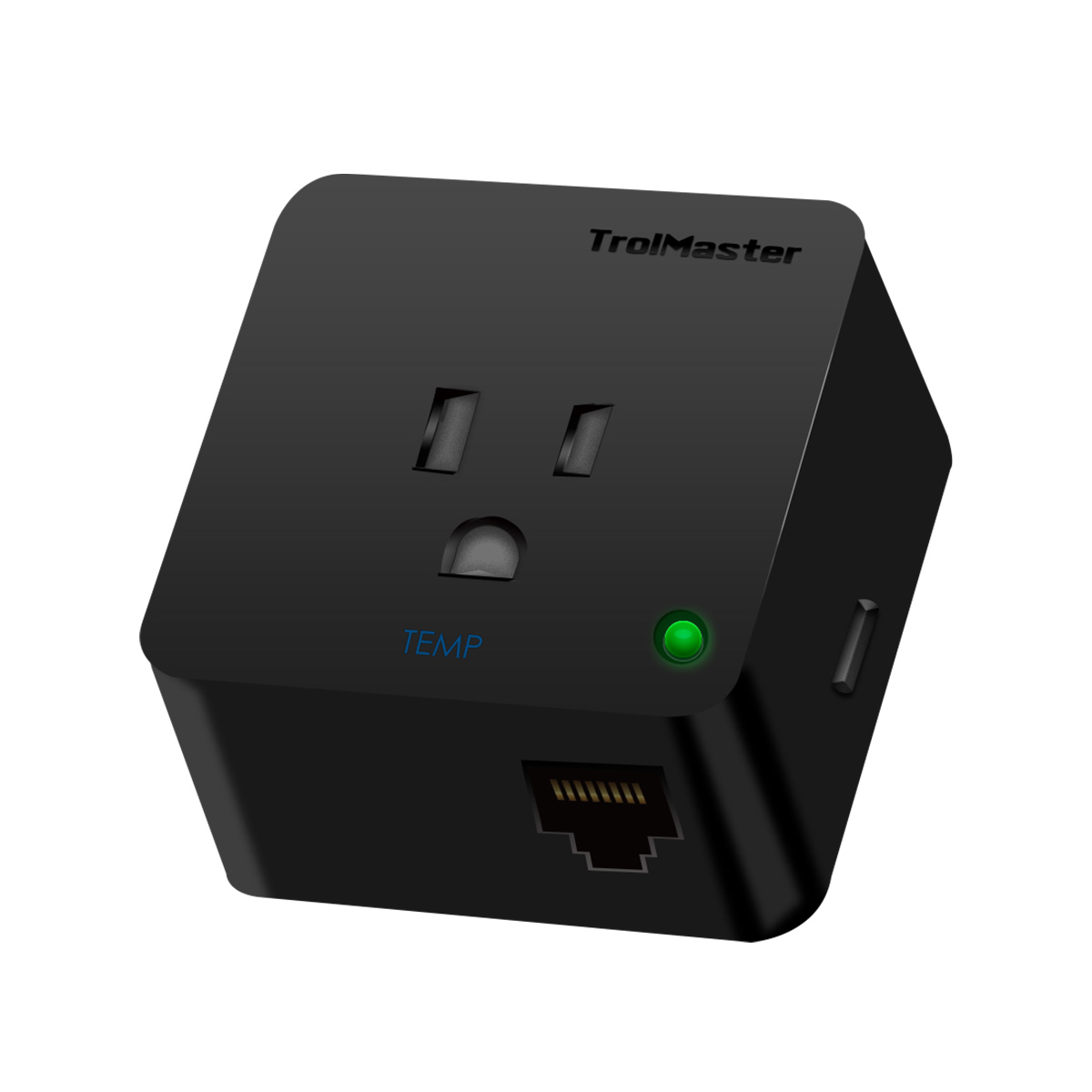

- LED Power Indicator
- RJ12 Cable Socket
- Addressing
- Plug & Play
Technical Specifications and Documents:
- Input Voltage: 100~240VAC, 50/60Hz
- Output Current: 10A
- Output Voltage: 100~240VAC, 50/60Hz
- Working Environments: Temperature 32-122°F, Humidity=90%
- Package Dimensions: 85mm(L) x 80mm(W) x 90mm(H)
Specifications
Air – Water – CO2
