Under Current UC6XXL13 System – From the Manufacturer:
The Under Current system is the world’s only recirculating water culture hydroponic system to feature CCH2O’s patented Sub-Current Culture circulation method.
Sub-Current Culture technology utilizes negative water pressure to recirculate highly oxygenated nutrient solution through the plant’s root zone. This continuous fluid motion supercharges the nutrients with dissolved oxygen, creating hyper-aerobic conditions perfect for explosive plant growth. Constant 24/7 nutrient circulation ensures pH and EC levels are uniform throughout the entire system.
CCH2O unique water culture application is unprecedented in layout versatility and ease of use. The Under Current consistently delivers awe-inspiring yields for any sized application, from hobby to commercial greenhouse.
UC6XXL13 System Includes:
- 13 Gallon Blackout Series Growth Modules
- New – CCH2O Multi Mod Epicenter Control Module
- New – CCH2O 5.5″ Heavy Duty Lids with Port Hole
- New – CCH2O 5.5″ Heavy Duty Net Pots
- New – High Flow 2″ Manifold & Joints with 2″ UC Spin-Tight Bulkheads
- Premium Danner Mag-Drive™ Return Pump
- Premium Linear Air Pump(s)
- 9″ Air Diffuser Disc
- Aqua-Pore Air Diffusers
- Air Distribution Manifold
- Air Hose, In-Line Filter(s)
- Adjustable Float Valve with Reservoir Adapter Kit.
*Boneless Spacing Option: All Under Current systems are available in a “Boneless” configuration. Boneless systems ship WITHOUT straight sections of piping allowing for custom plant spacing.
*Remote Epicenter Option: All Under Current systems are available with a “Remote Epicenter” option. This allows growers to place the Epicenter (control module) on the outside of their grow space or tent.
*Please note: Both of the above-noted options require the separate purchase and installation of PVC pipe.
NUMBER OF ROWS: 2
NUMBER OF SITES: 4
PLANT SPACING & MODULE SIZE: 40″ Centers / 13 Gallon

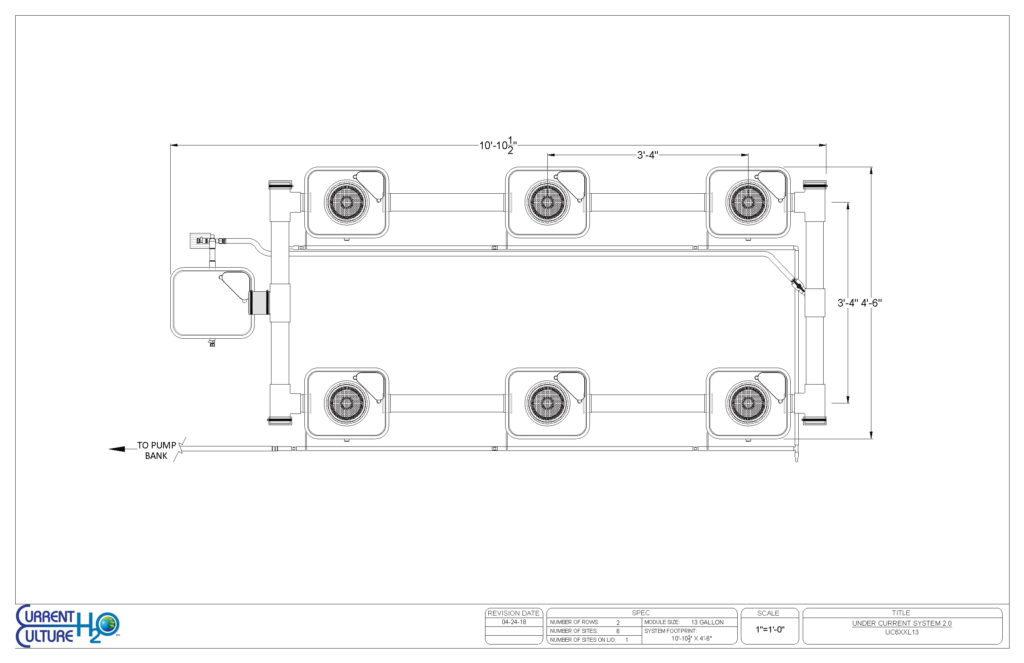

SYSTEM FOOTPRINT (FEET / METERS): 4’6″ x 10′10.5″ / 1.38m x 3.31m
TOTAL SYSTEM VOLUME (GALLONS / LITERS): 58 / 220
POWER USAGE (WATTS): 90
AIR PUMP SIZE(S) (LPM): 60
AERATION RATE (LPM PER GALLON): 1.03
WATER PUMP SIZE (GPH / LPH): 350 / 1325
RECIRCULATION RATE (EXCHANGES PER HR.): 6.04
GROW AREA (FEET / METERS): 10′ x 12′ / 3.05m x 3.66m
LIGHTING (HORIZONTAL): 4 X 600W
LIGHTING (VERTICAL): 5 X 600W
WATER CHILLER SIZE* (HP): 1/10 – 1/6 HP
RESERVOIR (GALLONS / LITERS): 60 / 250
VEG TIME (WEEKS/IN.): 4-6 weeks / 30″-36″
*General recommendation. Check manufacturers specifications for proper chiller sizing.
