USA Lab 50L Rotary Evaporator Turnkey Setup Rotovap RE-1050

Loading...
From:
From:

$15,899.00

The USA Lab 50L RE-1050 Series Rotary Evaporator Turnkey Kit recovers solvents efficiently and fast. This Kit provides consistent and repeatable results at an affordable price.

Model: RE-1050TK
MPN: RE-1050TK

Your Garden's Success is our #1 Priority

HTG Supply is committed to providing you with the very best products, pricing and service in the industry. We will ship your order fast and discreetly packaged to protect your privacy. Buy with confidence knowing your HTG Supply purchase includes simple returns as well as lifetime product support. Call our team of real growing experts with your purchasing or product use questions, and we will be here to help!

See it for less somewhere else? Give us a call and we’ll beat any online competitor’s price!

Customer Service:  1-866-710-GROW (4769) | sales@htgsupply.com | Hours: Mon-Fri 9:00 a.m. to 5:00 p.m.

Loading...

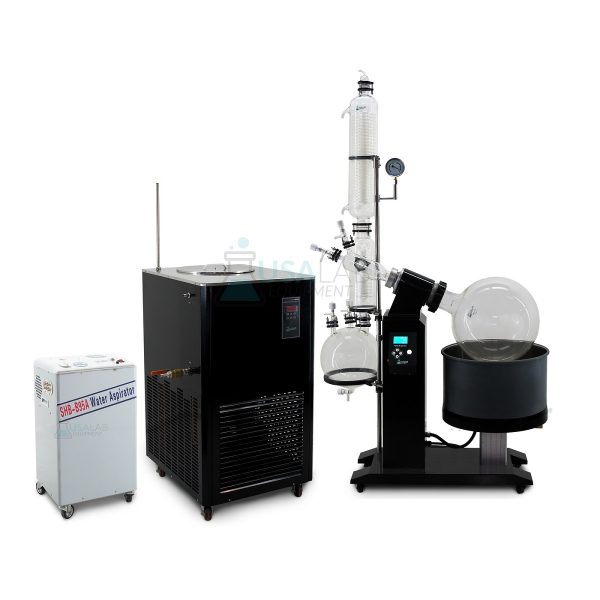

USA Lab 50L Rotovap RE-1050 System

The RE-1050 Evaporator is made with GG-17 High Borosilicate Glass, and has been designed for efficient use of surface area. This means faster recovery without compromising quality. Our evaporators come standard with safety features such as over-temperature shut off and dry-run protection. All valves and ports are high efficiency allowing a continuous feed of material as well as draining the receiving flask without breaking vacuum.

RE-1050 ROTARY EVAPORATOR FLOW DIAGRAM

Flow Chart

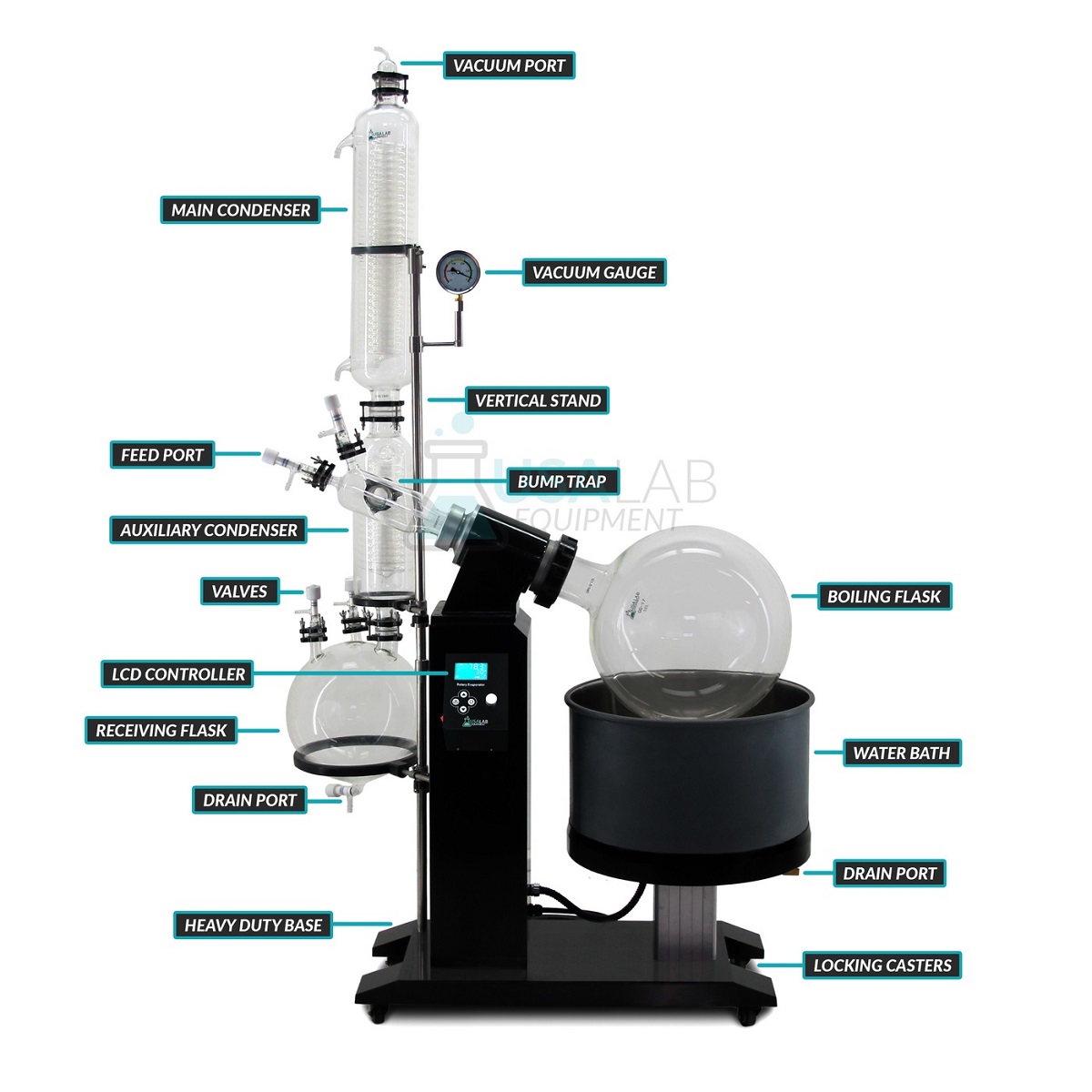

System Diagram

RE-1050 ROTARY EVAPORATOR SPECIFICATIONS

• Glass Material: GG-17 Borosilicate Glass
• Evaporation Flask Capacity: 50L
• Collection Flask Capacity: 20L
• Rotary Speed: 20-120RPM
• Bath Temperature Range: Room Temp to 180°C /356°F
• Lifting Mechanism: Electric
• Power Requirements: 220V 60Hz 30A L6-30P Plug Installed
• Temperature Control Accuracy: +/-1°C
• Motor Wattage: 250W
• Heater BTUs: 22,000BTU
• Achievable Vacuum: 399.9Pa
• Evaporating Capability: Water ≥ 7L/H; Alcohol ≥ 15L/H
• Water Bath Volume: 77L
• Dimensions: 52″L x 30″W x 84″H
• Condensing Glass Volume: Main: 0.91m² ; Auxiliary: 0.52m²
• Speed Regulation: Digital Step-Less
• Vacuum Barb: 13.3MM
• Condenser Barb: 15.5MM

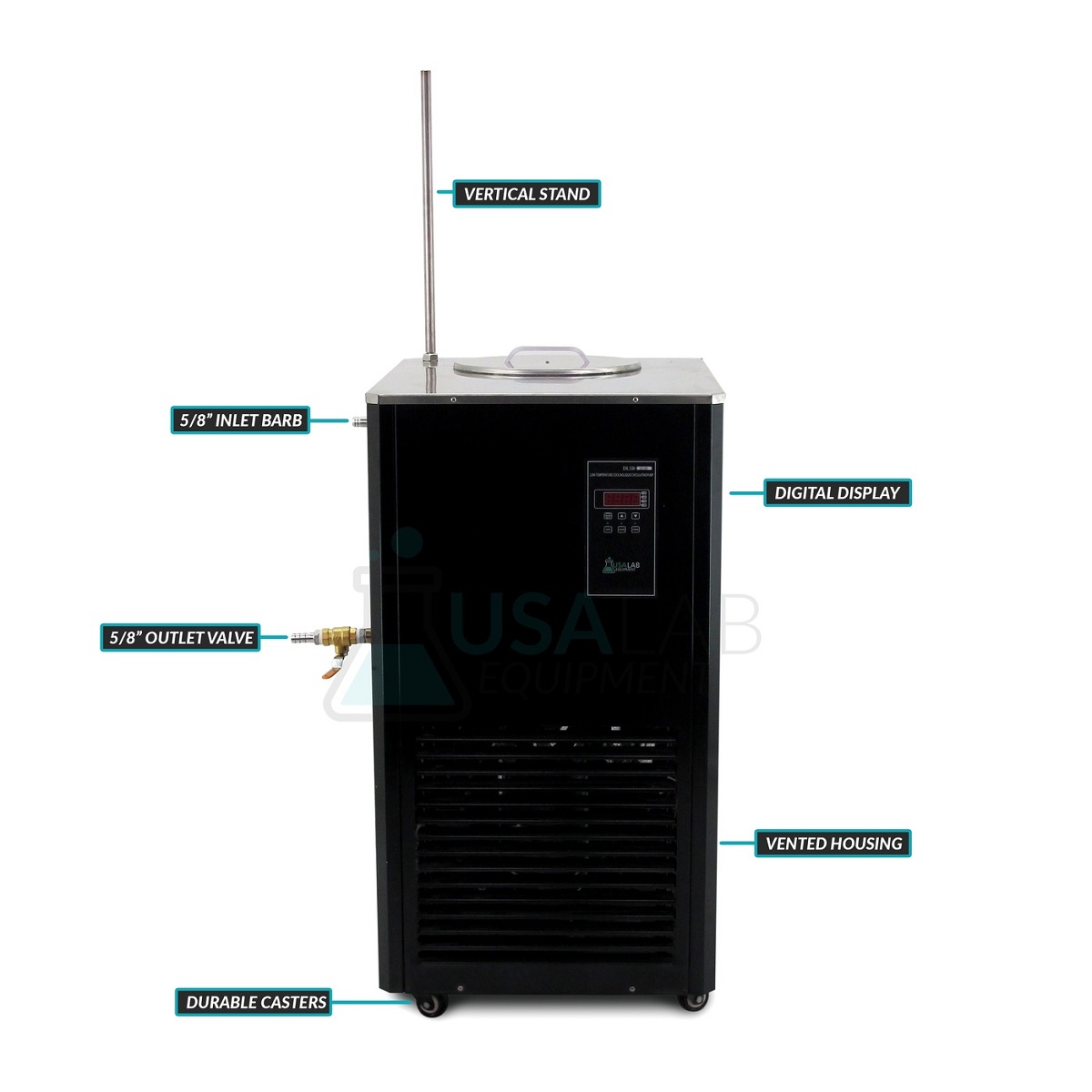

Chiller Diagram

DLSB-50/30 CHILLER SPECIFICATIONS

• Reservoir Capacity: 50L
• Reservoir Dimensions: 17.7″ x 13.7″
• Temperature Range: Room Temperature to -30°C / -22°F
• Power Requirements: 220v 60Hz 30A 2800W Single Phase
• Refrigerating BTUs: 12,000 BTU – 25,500 BTU
• Circulating Pump Wattage: 100w
• Temperature Accuracy: +/- 0.5°C
• Pump Flow: 30L/Min
• Pump Pressure: 2.2 bar
• Barb Size: 5/8″
• Refrigerant: R404
• Dimensions 31″ x 26″ x 46″
• Weight: 174 lbs

Weight 250 lbs
