AgrowDose™ MDX Nutrient, pH & ORP Dosing Systems

$0.00

SKU: ENV-AT-ADMPX-NPO

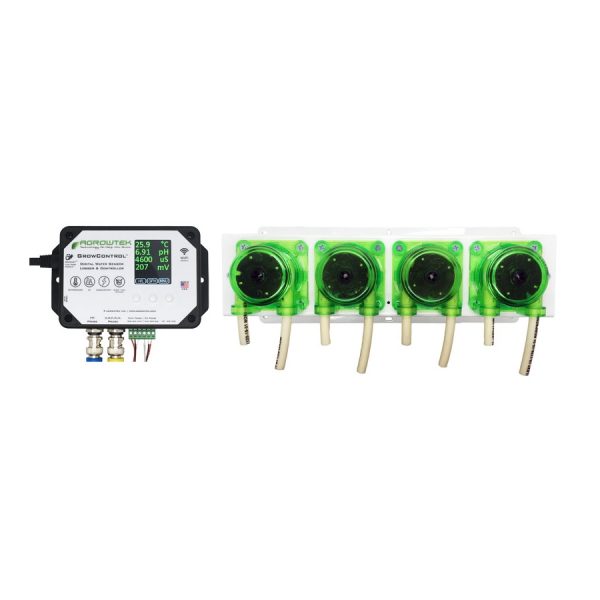

MDXP Modular Dosing Panels automate nutrient dosing, pH and ORP control in large or small re-circulating hydroponic systems or drain-to-waste fertigation systems fed from a pre-mix stock tank. These pre-assembled panels come ready to dose! Just connect the water manifold to your system and plug in power! Controller, dosing pumps and water manifold are all conveniently mounted on a stainless steel back panel simplifying installation and providing a clean appearance.

More Info

Share:

Overview

AgrowDose™ MDX Nutrient, pH & ORP Dosing Systems are designed for easy wall-mounting. Available in 1, 2, 4 or 5 pump configurations, each pump can be configured for pH up, pH down, ORP or EC nutrient dosing as required. Precision sensors and rugged pumps offer reliable and accurate control. Built with FDA compliant tubing, the pumps inject chemicals quickly into water lines up to 25psi. Long-life pump heads are easily replaced in seconds without tools. The controller’s built-in color display provides an easy to use interface for monitoring the sensor readings and configuring the dosing settings. Display includes features such as:

  • High/low history
  • Graphical history
  • Alarm set points with Buzzer
  • Guided sensor calibration screens
  • Manual pump priming
  • Back-light shut-off timer

Built on a decade of proven technology and components with new, enhanced capabilities to meet the growing demand for highly reliable autonomous dosing applications.

Ready to Dose | Easy to Use | 1, 2, 4 or 5 Pumps

  • Precision Digital Sensors
  • Data Logging & On-Board Graphing
  • Tough, Reliable Pumps
  • Easy Setup & Operation

Sensors

  • Water Temperature: -20 – 60°C
  • pH: 0-14 pH
  • Conductivity: 0-5000 uS (0-2500ppm)
  • O.R.P. or D.O.: +/-1000mV / 0-20mg/ml

Documents

download Data Sheet
download Installation Manual

Videos

download MDX System Setup & Installation
download SXH Sensor Setup & Calibration

Applications

  • Recirculating Hydroponics Systems (NFT, DWC, etc.)
  • Agricultural & Aquaponics
  • Analytical, Research & Academic
  • OEM & custom applications
  • Typical Configuration

AgroDose System Diagrams

Specifications

Weight 10 lbs
Model

MDX1 Single Pump, MDX2 Dual Pump, MDX4 Quad Pump, MDX5 Penta Pump

Sensor Probes

pH, EC & Temperature, pH, EC & Temperature + DO, pH, EC & Temperature + ORP
