AgrowDose™ MPX pH & ORP Dosing Systems

Loading...

$899.00$1,838.00

SKU: ENV-AT-ADMPX

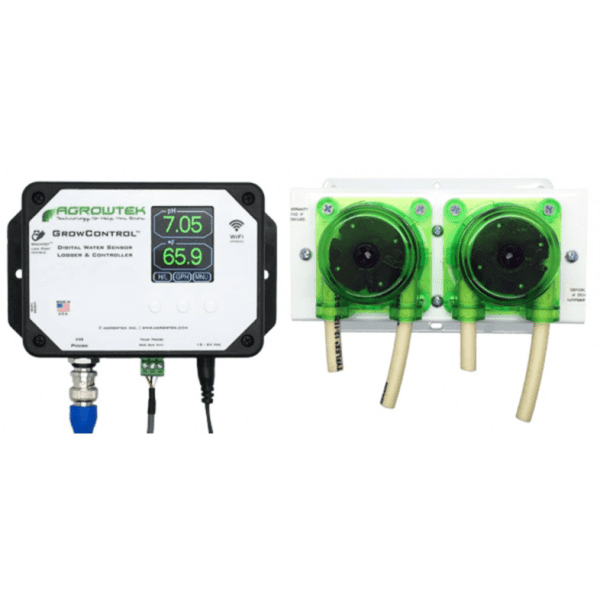

AgrowDose™ MPX dosing systems are autonomous pH set-point control systems consisting of a digital PHX hydroponics controller and ADi intelligent peristaltic pump. Available with 1, 2 or 4 independent pump heads. Configure each pump as a pH up, pH down or ORP part. Precision sensors and rugged pumps offer reliable and accurate control of reservoirs large and small. Built with FDA compliant tubing, the 50ml/min pumps inject chemicals quickly into water lines up to 25psi. The controller’s built-in color display provides an easy to use interface for monitoring the sensor readings and configuring the dosing settings.

Clear
Loading...

AgrowDose™ MPX dosing systems are autonomous pH set-point control systems consisting of a digital PHX hydroponics controller and ADi intelligent peristaltic pump. Available with 1, 2 or 4 independent pump heads. Configure each pump as a pH up, pH down or ORP part. Precision sensors and rugged pumps offer reliable and accurate control of reservoirs large and small. Built with FDA compliant tubing, the 50ml/min pumps inject chemicals quickly into water lines up to 25psi. The controller’s built-in color display provides an easy to use interface for monitoring the sensor readings and configuring the dosing settings. Display includes features such as:

  • High/low history
  • Graphical history
  • Alarm set points with Buzzer
  • Guided sensor calibration screens
  • Manual pump priming
  • Back-light shut-off timer

Built on a decade of proven technology and components with new, enhanced capabilities to meet the growing demand for highly reliable autonomous dosing applications.

Autonomous | Easy to Use | Accurate & Reliable | 1, 2 or 4 Pumps

  • Precision Digital Sensors
  • Data Logging & On-Board Graphing
  • Tough, Reliable Pumps
  • Easy Setup & Operation

Sensors

  • Water Temperature: -20 – 60°C
  • pH: 0-14 pH
  • O.R.P. or D.O.: +/-1000mV / 0-20mg/ml

Documents

download Data Sheet
download Installation Manual

Videos

download MDX System Setup & Installation
download SXH Sensor Setup & Calibration

Applications

  •  Greenhouses & Growing Facilities Hydroponics pH Control
  • Agricultural & Aquaponics
  • Aquarium
  • Pool & Spa
  • Analytical, Research & Academic
  • Industrial Process Water
  • OEM & Custom Applications
Weight 10 lbs
Model

MPX1 Single Pump, MPX2 Dual Pump, MPX4 Quad Pump

Sensor Probes

pH & Temperature, pH & Temperature + ORP, pH & Temperature + DO
