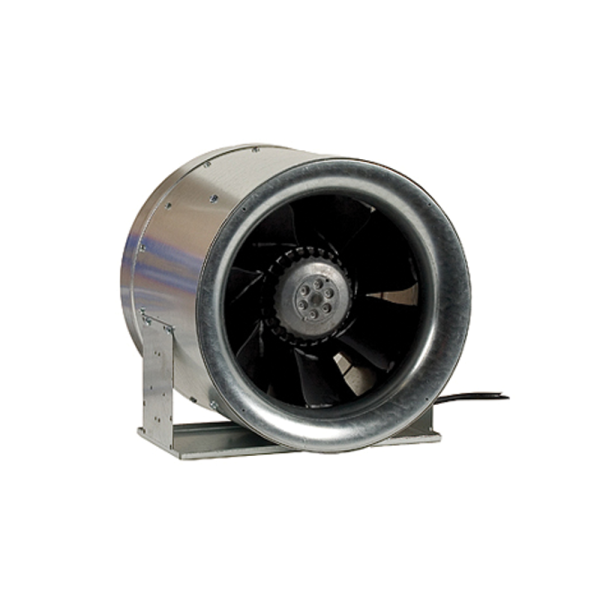

10 Max Fan 1023 CFM
Max-Fans are inline, mixed-flow fans capable of jaw-dropping performance at a high static pressure through innovative design. Manufactured in Germany, Can-Filters Max-Fans pack a serious punch for their size and operating cost. Aerodynamically optimized laminar airflow and extremely high efficiency set the Max-Fan in a class of its own.
Only 2 left in stock
-
Overview
Features
- Manufactured in Germany
- Extremely energy-efficient
- Optimized mixed flow is quieter than comparable fans
- Very high aerodynamic efficiency
- Lower operational cost than traditional centrifugal fans
- Easy installation
- 5-year warranty
- Available in sizes from 8″ – 12″
- Built-in 3-speed controller*
8″ Max-Fan | 10″ Max-Fan | 12″ Max-Fan | 6″ Max-Fan PRO | |
---|---|---|---|---|
Man. SKU | 340420 | 340430 | 340440 | 340710 |
CFM | 667 | 1019 | 1708 | 420 |
RPM | 3250 | 2990 | 3374 | 3322 |
Max Watts | 179 | 228 | 489 | 69 |
Max Amps | 1.5 | 1.9 | 4.1 | .62 |
Duct Diameter | 8 inches | 10 inches | 12 inches | 6 inches |
Length | 8.875″ | 8.5″ | 12.125″ | 12.125″ |
Blade Type | mixed flow | mixed flow | mixed flow | mixed flow |
Housing | plastic | galvanized | galvanized | fiberglass composite |
Inlet/Outlet | 8″ | 10″ | 12″ | 6″ |
*not available on all models
Specifications
Weight
19 lbs
Dimensions
11 × 9 × 11.5 in
Brand
Flange Size
Product Category
Air – Water – CO2
CFM
Speed Control Compatible
Application Type
