GrowControl™ RX4i Digital Intelligent 4-Outlet Relay

Loading...

$349.00

Out of stock

SKU: ENV-AT-RX4I

GrowControlTM RX4i relay independently operates four receptacles for control of equipment such as: irrigation pumps, CO2 equipment, fans, lighting trigger cords, etc.

Connects instantly to Agrowtek’s SXE sensor via a GrowNET port for advanced automated control functions. Use stand-alone with the optional WiFi module or USB AgrowLINK. GrowNET port accepts MODBUS RTU communication for PLC control. Internal digital controller operates relays with MODBUS commands and logs the total number or relay contact closures for each relay in memory. Easily recall manufacturing info such as unit serial number, date of manufacture, contact count, status, etc.

Out of stock

SKU: ENV-AT-RX4I Category: Tags: ,
Loading...

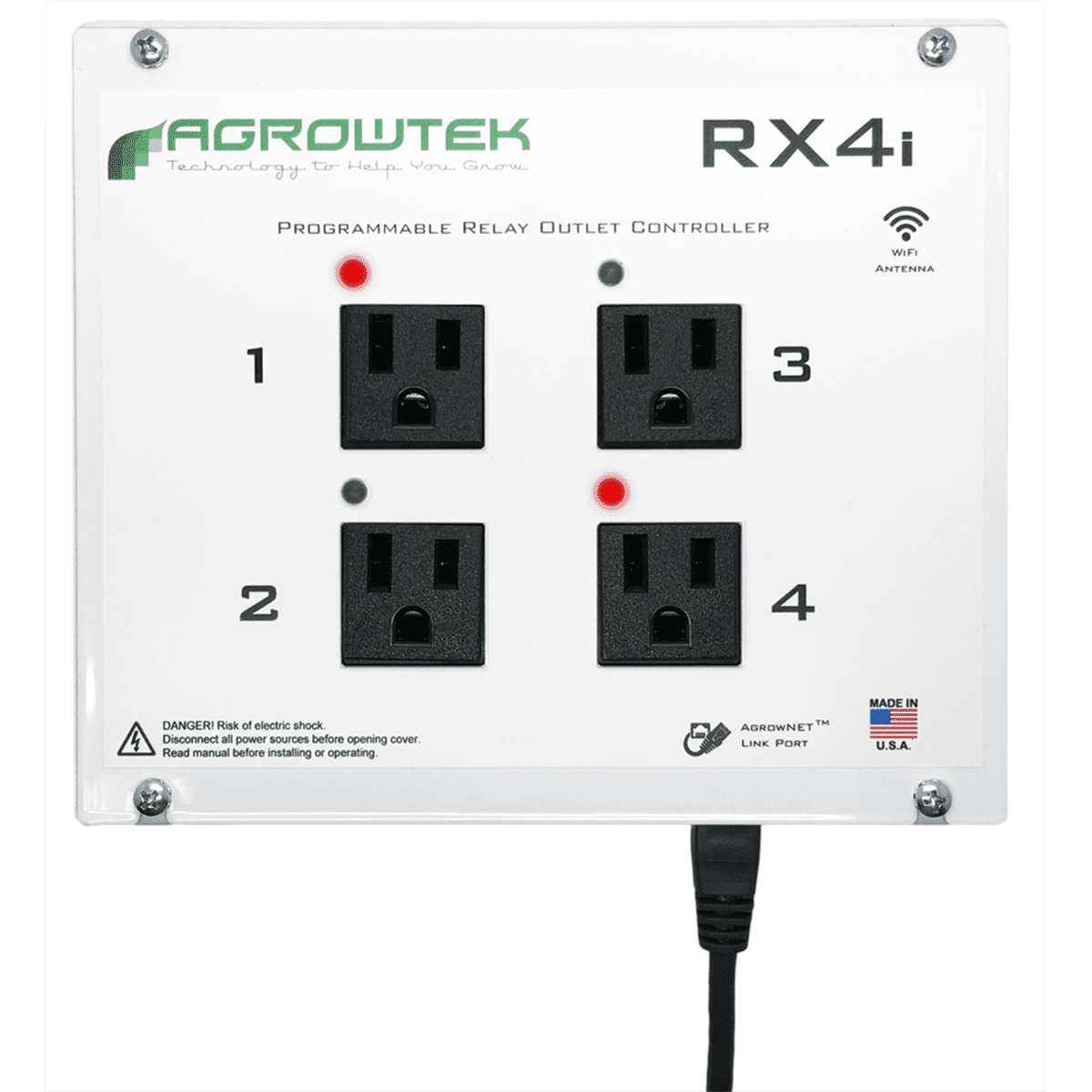

Digital Four-Outlet Relay Interface for MCX Systems and MODBUS

GrowControlTM RX4i relay independently operates four receptacles for control of equipment such as: irrigation pumps, CO2 equipment, fans, lighting trigger cords, etc.

Connects instantly to Agrowtek’s SXE sensor via a GrowNET port for advanced automated control functions. Use stand-alone with the optional WiFi module or USB AgrowLINK. GrowNET port accepts MODBUS RTU communication for PLC control. Internal digital controller operates relays with MODBUS commands and logs the total number or relay contact closures for each relay in memory. Easily recall manufacturing info such as unit serial number, date of manufacture, contact count, status, etc.

LED indicators on the front panel provide status of each outlet. Rugged metal enclosure for wall mounting. Durable 20A relays and 15A receptacles. Conduit knock-outs and screw terminals for easy electrical installation.

Flexible and reliable outlet controller suitable for many applications. Built on a decade of proven technology and components with new, enhanced capabilities to meet the growing demand for highly reliable environmental control applications.

120V Outlets | Independent Control | Robust Relays | LED Indicators

Four Independent 120V Outlets, Tough, Reliable Relays
LED Status Indicators

Digital Control, Addressable

GrowNET port, MODBUS

Made in USA

Options

Power Cord Kit
The RX4i has knock-outs on the bottom for connecting the RX4i to conduit, or choose the power cord kit to plug the RX4i directly into a 120V wall outlet. The cord kit includes a 15A rated 6ft power cord and cord grip to install the cord into the conduit knock out.

Documents

download Data Sheet

download Installation Manual

download MODBUS Manual

Applications

icon Greenhouses & Growing Facilities

Home & Hobby Automation

icon Analytical, Research & Academic

icon Building Automation

icon Industrial Automation

icon OEM & Custom Applications

Weight 10 lbs
