MCX8 Climate Control System

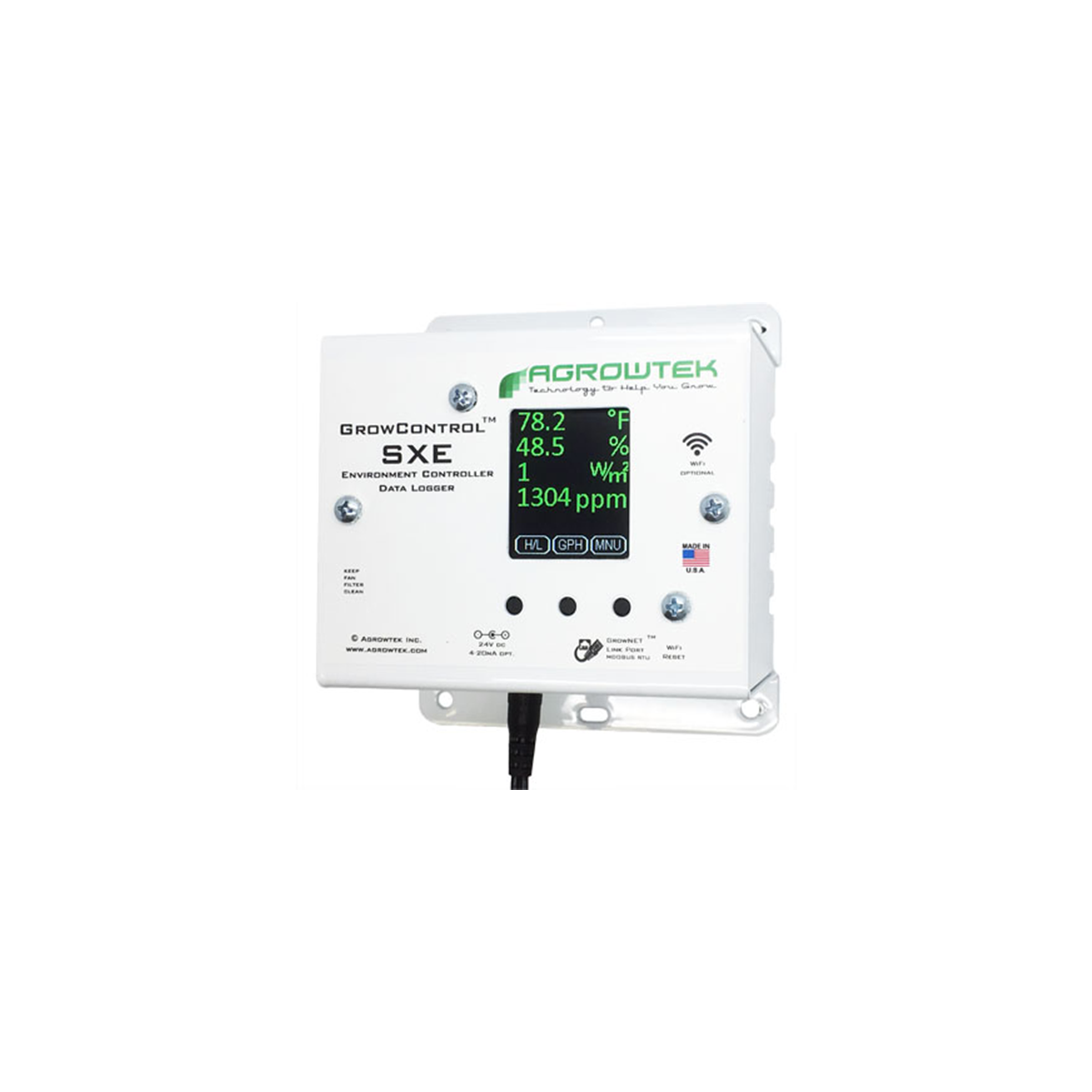

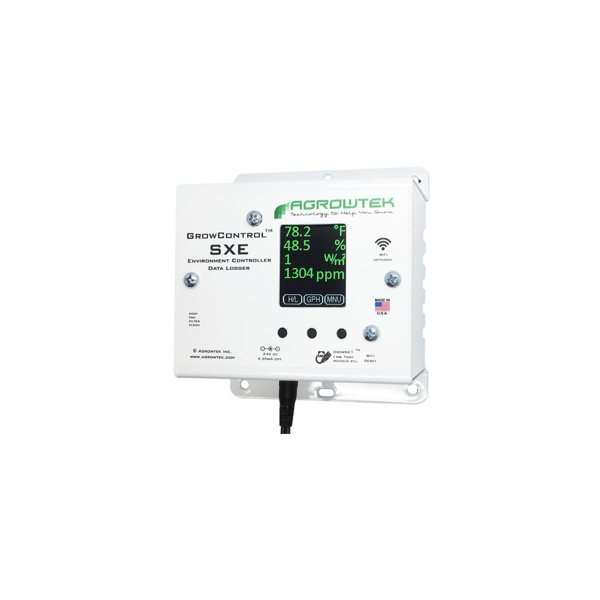

GrowControl^TM MCX8 climate controller combines Agrowktek’s SXE environment sensor/controller with an RD8i intelligent eight-contact relay to form a powerful, autonomous environmental controller for a single basic zone. Sense and control temperature, humidity and CO2 with day and night set points. Each of the relays can be programmed independently for a specific sensor-based control, 24-hour timer and cycle timer functions. A light sensor on the top of the SXE controller detects day or night from ambient light levels. Precision sensors and rugged relays offer reliable and accurate control of environments large and small in an economical, easy to use package. Built on a decade of proven technology and components with new, enhanced capabilities to meet the growing demand for highly reliable environmental control applications.

The controller’s built-in color display provides an interface for monitoring the sensor readings and configuring the control settings. Also includes features such as:

• High/low history
• Graphical history
• Alarm set points with Buzzer
• Sensor calibration

Dry Contacts | Autonomous | Accurate | Reliable

Precision Digital Sensors

Data Logging & On-Board Graphing

Tough, Reliable Relays

Sensors

Air Temperature: -20 – 60°C

Relative Humidity: 0-99% RH (80% operating)

Light (Irradiance): 0-1000 Watts/m2

Carbon Dioxide (optional): 0-10,000 ppm

Functions

Heating & Cooling

Humidification & Dehumidification

CO2 Inject & Exhaust/Alarm

24-Hour Timers & Repeat Cycle Timers

Day & Night Set-Points w/Light Sensor

Visual & Audible Alarms

High-Temperature Lights Shutdown

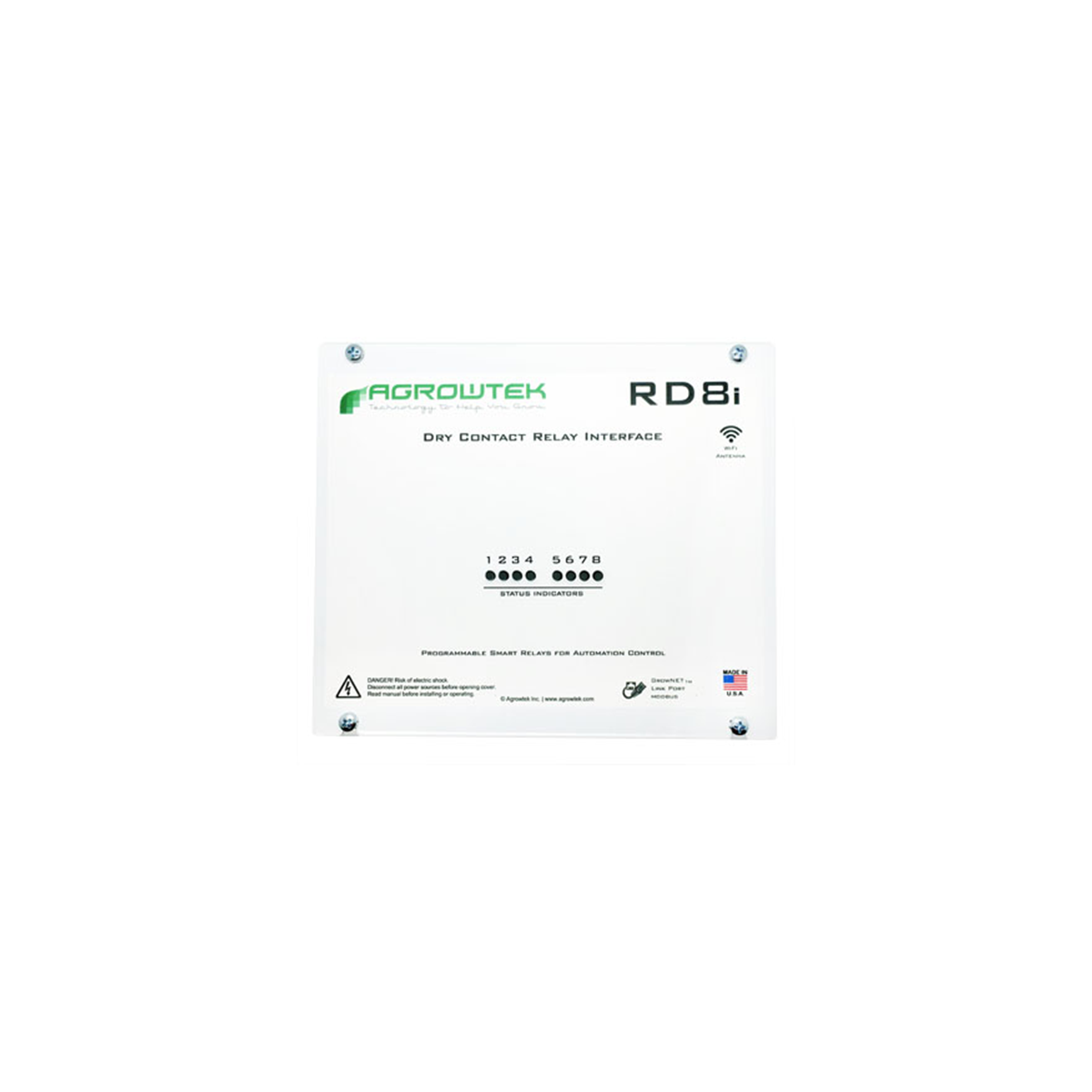

RD8i relay includes eight independent, programmable 240V/10A (max) dry contact terminals.

Options

CO2 ppm Sensor

WiFi Module
