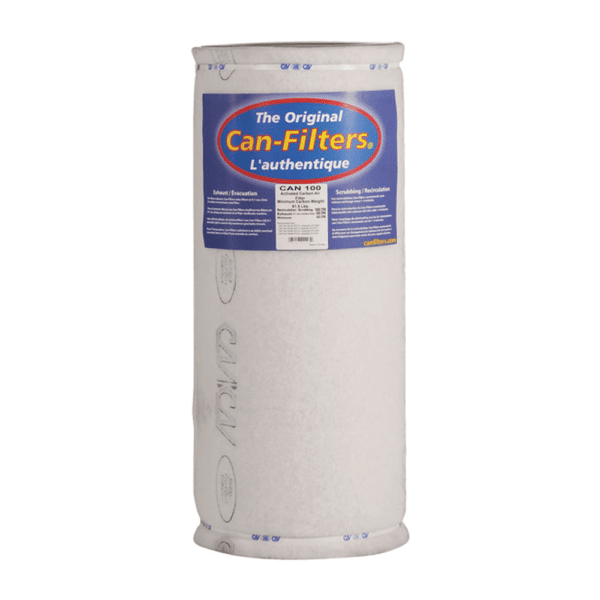

Original Can Filters are designed for the control of VOCs (paint fumes, hydrocarbons, ect…), odors, and other gaseous contaminants. Built with the same proven packed-bed design and pelletized virgin activated carbon that Can Filters have used for 30 years, this line of time-tested carbon air filters sets the standard for long life, consistent performance, and low pressure drop. Rated conservatively at a 0.1 sec contact time, the Original Can Filter provides excellent value and confidence.
Features
- Made in North America
- Low pressure drop, even on smaller sizes
- Pelletized carbon delivers the cleanest filter available
- 2.5” carbon bed, thickest in the industry
- Flange comes seperate to fit a wide range of fans and applications
Can 33 | Can 50 | Can 66 | Can 75 | Can 100 | Can-Lite 2600 | Can-Lite 9000 | |
---|---|---|---|---|---|---|---|
Max Exhaust CFM | 200cfm / 350 m³h | 420 cfm / 713 m³h | 412 cfm / 700 m³h | 600cfm / 1000 m³h | 840 CFM / 1400m3h | 300 m³h / 177 cfm | 425 m³h / 250 cfm |
Max Recirculating CFM | 400cfm / 700 m³h | 840 cfm / 1426 m³h | 824 cfm / 1400 m³h | 1200 cfm / 2000 m³h | 1660cfm / 2800m³h | 600 m³h / 353 cfm | 850 m³h / 500 cfm |
Recommended Min Airflow | 100 cfm / 175 m³h | 210 cfm / 357 m³h | 206 cfm / 350 m³h | 300 cfm / 500 m³h | 420 cfm / 700m³h | (no data) | (no data) |
Carbon Bed Depth | 2″ | 2.5″ | 2″ | 2.5″ | 2.5″ | 1.25″ | 1.25″ |
Prefilter | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Flange | 4″-6″ | 6″-10″ | 6″-10″ | 6″-12″ | 8″-12″ | n/a | n/a |
Diameter | 12″ | 16.5″ | 12″ | 16.5″ | 16.5″ | 5.5″ | 5.5″ |
Height | 13″ | 19.7″ | 26″ | 29.5″ | 39.4” | 18″ | 25″ |
Weight | 25.3 lbs | 55 lbs | 44 lbs | 79lbs | 103 lbs | 8.1 lbs | 10.4 lbs |
Max Operating Temp | 176˚F | 176˚F | 176˚F | 176˚F | 176˚F | 176˚F | 176˚F |
Pressure Drop @ Max CFM | 180pa / .75″wg | 180pa / .75″wg | 180pa / .75″wg | 180pa / .75″wg | 180pa / .75″wg | (no data) | (no data) |
