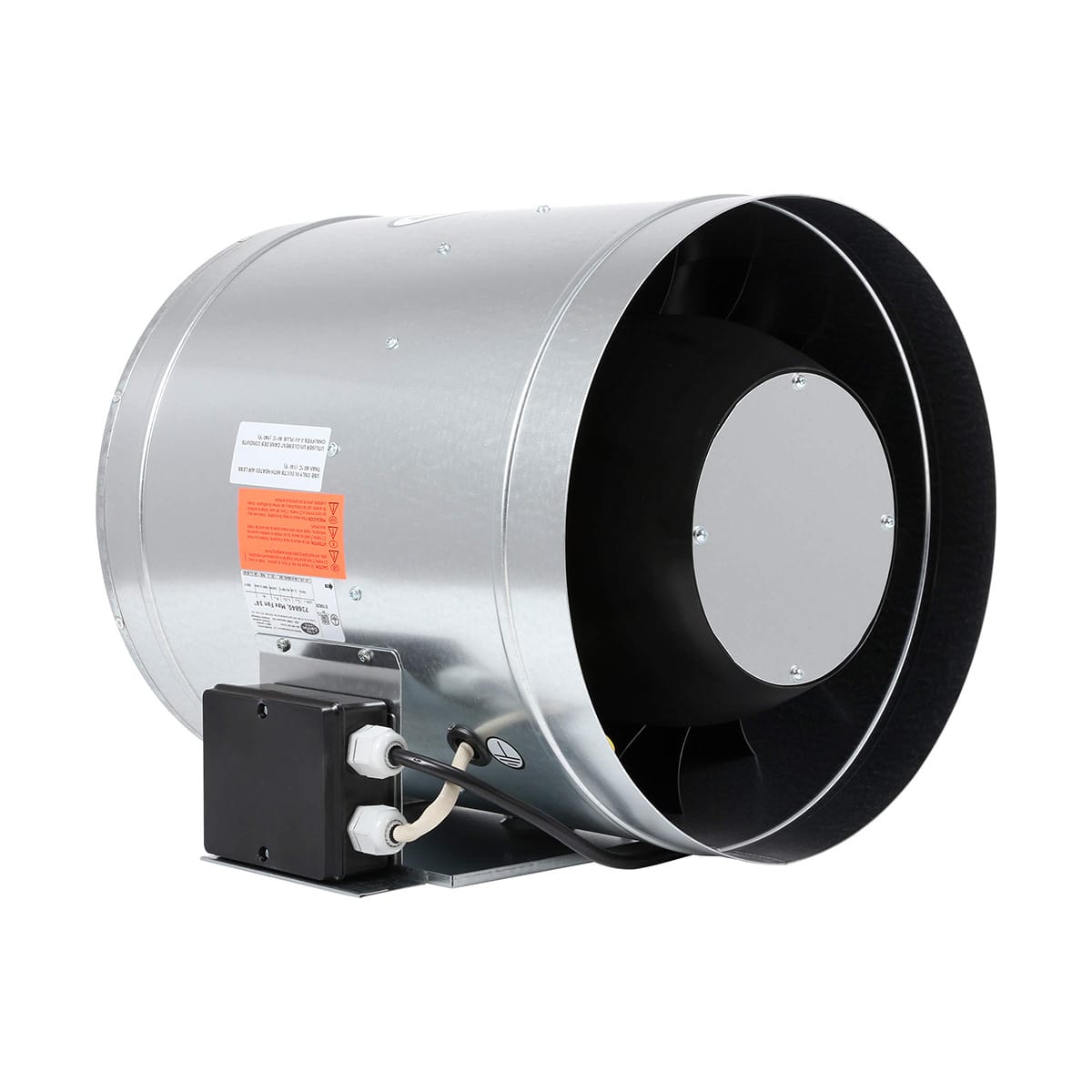

Can-Fan 14 Max-Fan 1700 CFM
Max-Fans are inline, mixed-flow fans capable of jaw-dropping performance at a high static pressure through innovative design. Manufactured in Germany, Can-Filters Max-Fans pack a serious punch for their size and operating cost. Aerodynamically optimized laminar airflow and extremely high efficiency set the Max-Fan in a class of its own.
Only 1 left in stock
-
Overview
Can-Fan 14 Max-Fan 1700 CFM
The Max-Fan is the first fan that has been developed with a Computational Fluid Dynamics (CFD) program. CFDs are used for engineering aircraft propulsion engines. The perfectly designed 3D blades of the impeller and stator make this fan extremely powerful and energy efficient. Compared with other inline fans, the efficiency is 50%—100% higher. 6 in—14 in come pre-wired with an 8 ft 120 V power cord. Can-Fan brings its innovation to market and sets a new standard for performance. The Max-Fan is a more powerful and efficient fan that takes less energy to run.
Features
- Manufactured in Germany
- Extremely energy-efficient
- Optimized mixed flow is quieter than comparable fans
- Very high aerodynamic efficiency
- Lower operational cost than traditional centrifugal fans
- Easy installation
- 5-year warranty
- Available in sizes from 8″ – 14″
- Built-in 3-speed controller*
| 8″ Max-Fan | 10″ Max-Fan | 12″ Max-Fan | 14″ Max-Fan | |
|---|---|---|---|---|
| Man. SKU | 340420 | 340430 | 340440 | 736840 |
| CFM | 667 | 1019 | 1708 | 1700 |
| RPM | 3250 | 2990 | 3374 | 1700 |
| Max Watts | 179 | 228 | 489 | 253 |
| Max Amps | 1.5 | 1.9 | 4.1 | 2.1 |
| Duct Diameter | 8 inches | 10 inches | 12 inches | 14 inches |
| Length | 8.875″ | 8.5″ | 12.125″ | 15.75″ |
| Blade Type | mixed flow | mixed flow | mixed flow | mixed flow |
| Housing | plastic | galvanized | galvanized | galvanized |
| Inlet/Outlet | 8″ | 10″ | 12″ | 14″ |
*not available on all models
Specifications
Weight
32.81 lbs
Dimensions
16.7 × 15.2 × 16.1 in
Brand
Flange Size
Product Category
Air – Water – CO2
CFM
Speed Control Compatible
Application Type
