USA Lab H1-10 10L Full Bore Short Path Distillation Turnkey Kit
$10,049.00
The USA Labs H1-10 10L Full Bore Short Path Distillation Kit is specially designed head to allow for excellent distillation at a great value. Each glassware kit comes with a USA Lab -30°C to 150°C Heater Chiller and a USA Lab UVP-11 2-stage 11 CFM Vacuum Pump. This kit is designed for high production and consistent results. Don’t spend all your money on overpriced distillation kits. Get started right away at a fraction of the cost!
- Model Option: W/ Insulating Top – 300°C 1200RPM | 220-240V 60Hz 20A 1000W (10LMANTLE)
- SKU: C-SD10L-H1TK-1
HTG Supply is committed to providing you with the very best products, pricing and service in the industry. We will ship your order fast and discreetly packaged to protect your privacy. Buy with confidence knowing your HTG Supply purchase includes simple returns as well as lifetime product support. Call our team of real growing experts with your purchasing or product use questions, and we will be here to help!
See it for less somewhere else? Give us a call and we’ll beat any online competitor’s price!
Customer Service: 1-866-710-GROW (4769) | [email protected] | Hours: Mon-Fri 9:00 a.m. to 5:00 p.m.
USA Lab H1-10 W/ Insulating Top – 300°C 1200RPM | 220-240V 60Hz 20A 1000W (10LMANTLE)
The USA Lab H1-10 Full Bore Short Path Distillation Kit is made with high quality borosilicate Glass and a wide 45/50 head to allow for excellent distillation, high production, and consistent results. This distillation kit comes with a large 45/50 distillation head, a 34/45 vacuum take-off adapter to allow for easy switching of receiving flasks, two 24/40 cold traps for large amounts of condensing, and full-bore attachments to allow for high pulling vacuum. Choose the best quality at the best value with this lattice supported high quality glass distillation kit.
- SKU: C-SD10L-H1TK-1
- Shipping: Calculated at Checkout
- Flask Sizes: 10L / 45/50 Main | 24/40 Side
- Head Joint Size: 45/50 Main | 24/40 Top | 24/40 Side
- Isolation Adapter Joint Sizes: 34/45 Inlet | 24/40 Outlet | 24/40 Bottom Discharge
- Left Cold Trap Joint Sizes: Male 24/40
- Right Cold Trap Joint Sizes: Female 24/40
- Optimal Capacity: 3000-8000mL
- Batch Time: 4-10 Hours
- Main Body Flow Rate: 700-1700 grams/hour
- 10LMANTLE Mantle Power: 220-240V 50/60Hz 15A
- USA-HM-12L Mantle Power: 220-240V 50/60Hz 15A
- Heater Chiller Power: 110-120V 50/60Hz 15A
- Vacuum Pump Power: 110-120V 50/60Hz 15A
- Warranty: 1 Year (Pump is a 2 year warranty)
| SPECIFICATIONS | ||
|---|---|---|
| Model | C-SD10L-H1TK | |
| Flask Size | 10L / 10000ML | |
| Flask Joint Sizes | 45/50 Main | 24/40 Side | |
| Distillation Head Joint Sizes | 45/50 Bottom | 24/40 Top | 34/45 Side | |
| Isolation Adapter Joint Sizes | 34/45 Inlet | 24/40 Outlet | 24/40 Bottom Discharge | |
| Left Cold Trap Joint Sizes | 24/40 | |
| Right Cold Trap Joint Sizes | 24/40 | |
| Optimal Capacity | 3000-8000mL | |
| Batch Time | 4-10 Hours | |
| Main Body Flow Rate | 700-1700 grams/hour | |
| Footprint | 80x24x40(inch) Including Pump / Chiller | |
| Heating Mantle Power 10LMANTLE | 220-240V 50/60Hz 15A | |
| Heating Mantle Power USA-HM-12L | 220-240V 50/60Hz 15A | |
| Heater Chiller Requirements | 110-120V 50/60Hz 15A | |
| Vacuum Pump Requirements | 110-120V 50/60Hz 15A | |
| Warranty | 1 Year (Pump is a 2 year warranty) | |
| PACKING LIST | ||
|---|---|---|
| Model | Quantity | |
| 10/12L Mantle (Options) | 1 | |

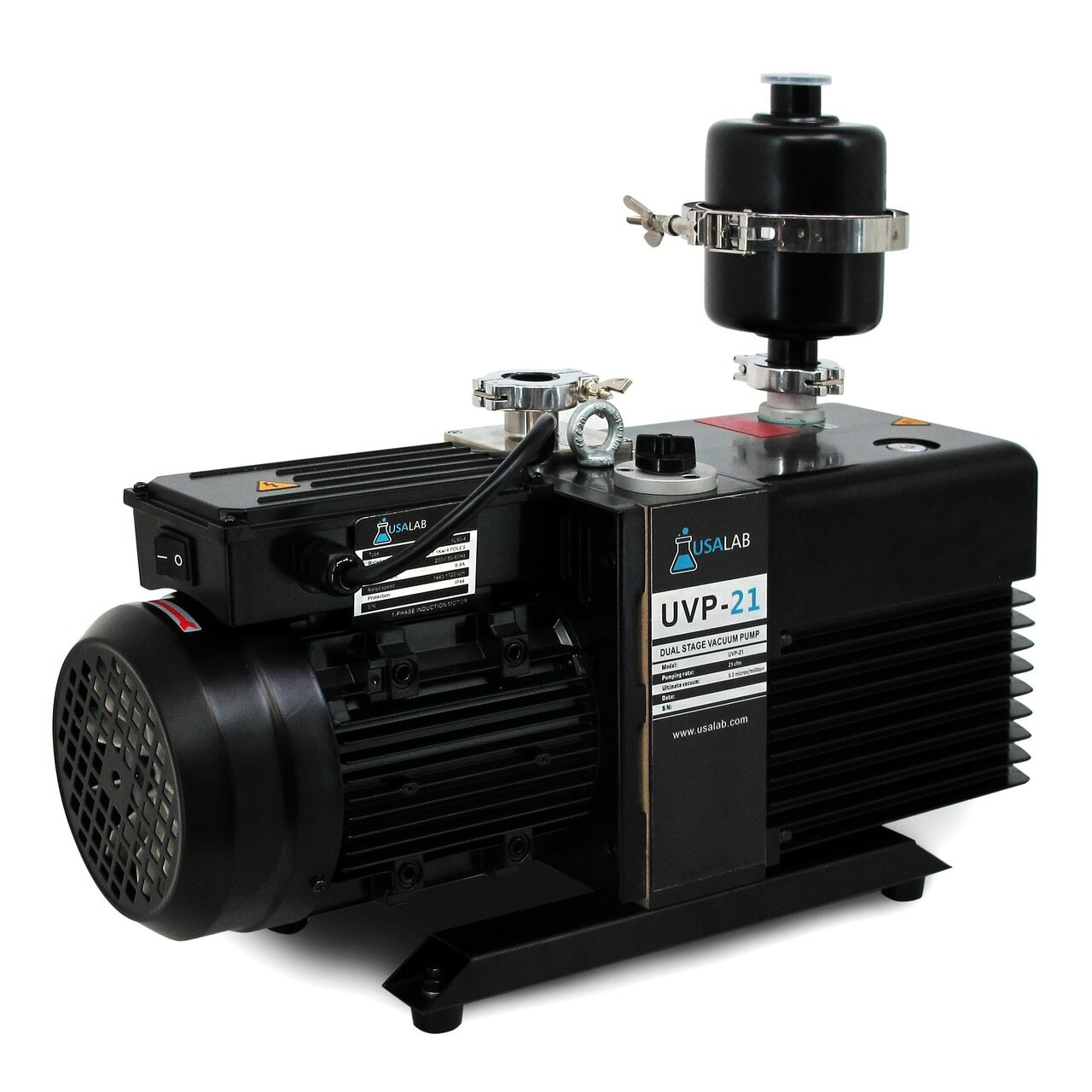

| USA Lab 21CFM UVP-21 | 1 | |

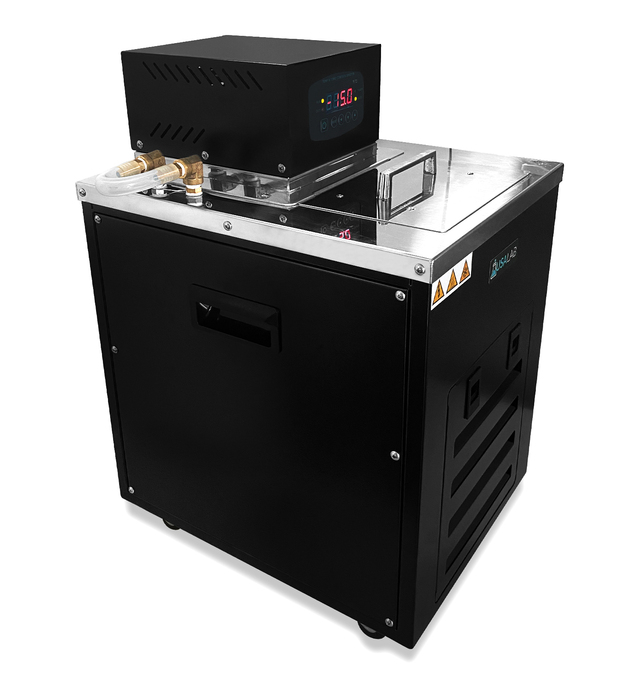

| USA Lab USA-RHC-7L -20 to 150C Heater Chiller | 1 | |
| DigiVac Bullseye Vacuum Gauge | 1 | |
| Digital K-type Thermometer w/ Probe | 1 | |
| 10L Thermal Shield USA Lab (Only for SKU:10LMANTLE) | 1 | |
| Apiezon PFPE 501 Vacuum Grease 100g | 1 | |
| 10L RBF – 2 neck 24/40 and 45/50 Center | 1 | |
| 5L 45/50 H1-5 Distillation Head | 1 | |
| 1000ML RBF – 1 Neck 24/40 | 2 | |
| 2000ML RBF – 1 Neck 24/40 | 1 | |
| 34/45 Isolation Adapter | 1 | |
| 24/40 Male Cold Trap | 1 | |
| 24/40 female Cold Trap | 1 | |
| Cold Trap Lid | 2 | |
| S35/20 500ml RBF | 2 | |
| 10L Flask Thermowell 24/40 | 1 | |
| 10L Head Thermowell 24/40 | 1 | |
| GL-18 Connection | 4 | |
| 45/50 Keck Clamp | 1 | |
| 34/45 Keck Clamp | 1 | |
| 24/40 Keck Clamp | 4 | |
| Red Large Clamp Retort 3 Prong | 4 | |
| Chain Clamp for Lab Stand | 2 | |
| Stainless Steel S35 Pinch Clamp | 2 | |
| 4″ Diameter Extension Support Ring | 2 | |
| Boss Head Clamp | 18 | |
| Small Cork Stand | 2 | |
| Medium Cork Stand | 1 | |
| 6″x8″ Lab Stand | 4 | |
| 8″x8″ Lab Jack | 1 | |
| 48″ SS Rod | 3 | |
| KF25 to 24/40 PTFE Adapter | 1 | |
| KF-25 to KF-25 x 1/8″ FNPT Adapter | 1 | |
| KF25 Bellow Hose 24″ | 1 | |
| KF25 3-Way Tee | 1 | |
| KF25 Pressure Release Valve | 1 | |
| KF25 Right Angle Valve | 1 | |
| KF25 Wing Nut Clamp | 4 | |
| KF25 Vacuum Pump Centering Ring | 4 | |
| Silicone Hosing 3/8″ | 10ft | |
| Mantle Manual | 1 | |
| Pump Manual | 1 | |
| Heater Chiller Manual | 1 | |
| Weight | 350 lbs |
|---|
