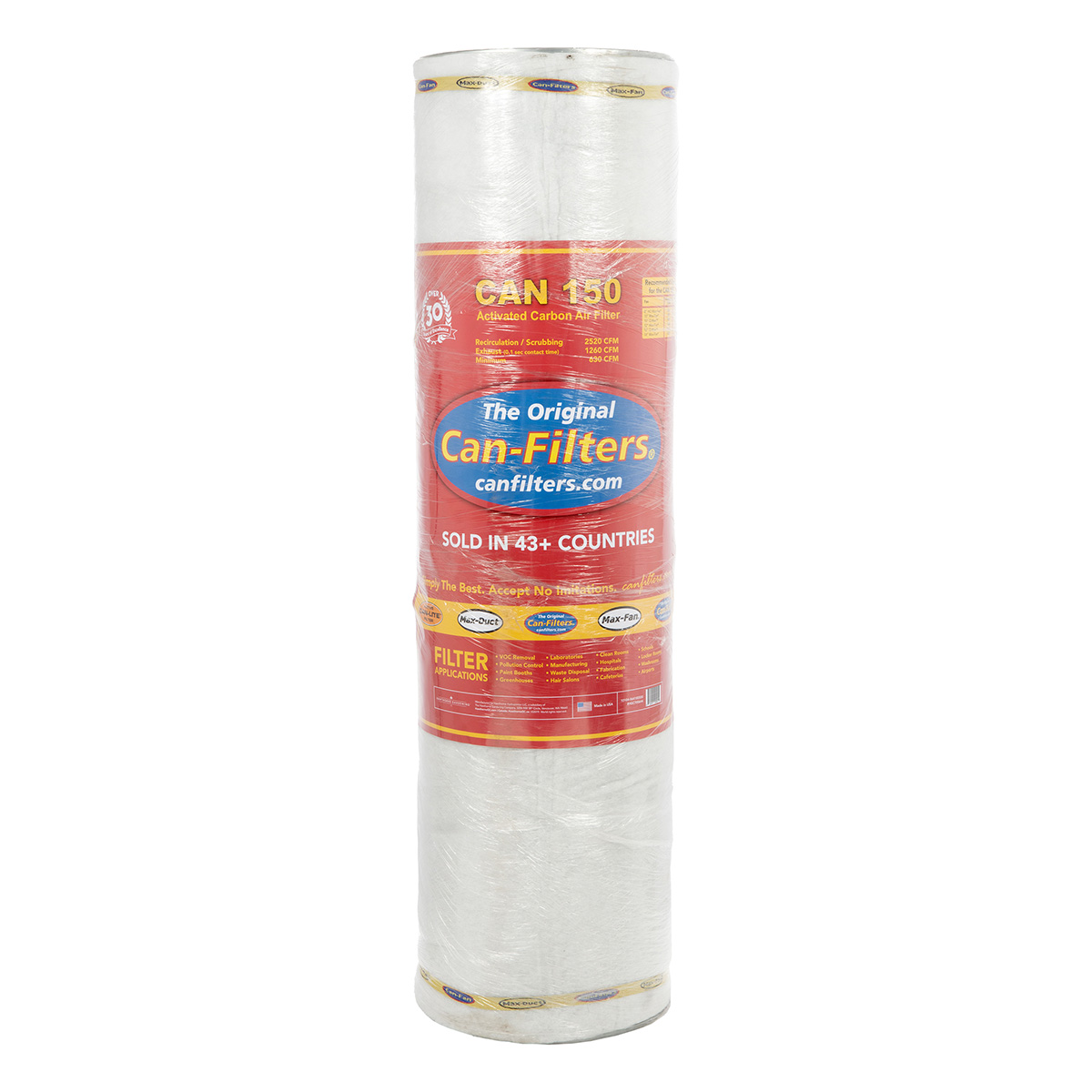

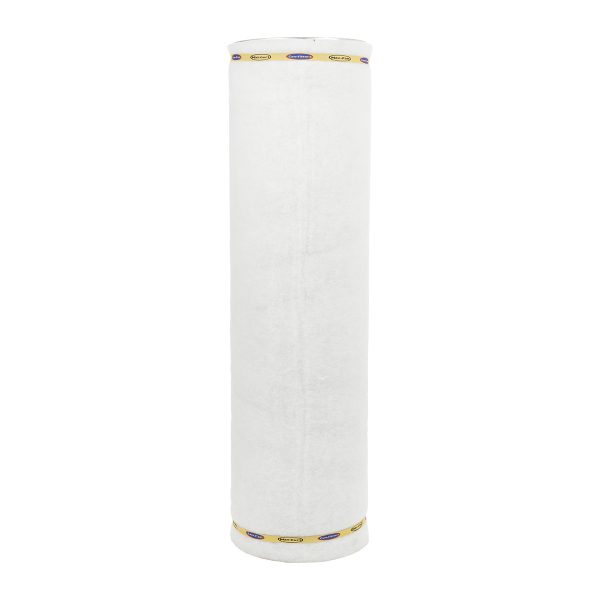

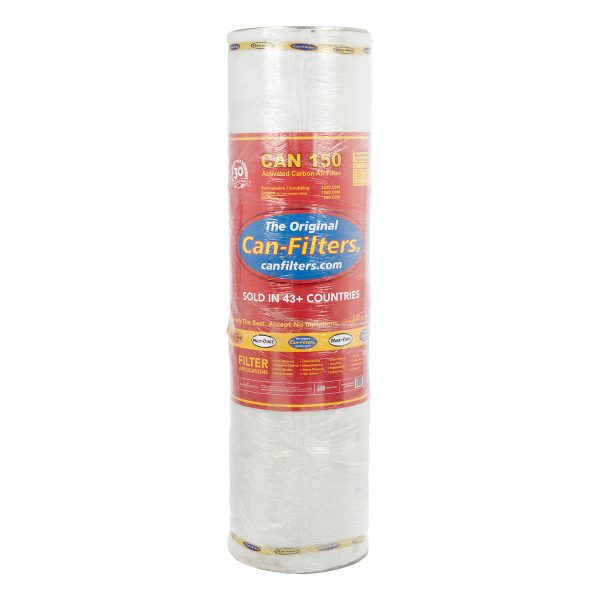

Can-Filter 150 – 1260 CFM
Each Original Can-Filter uses a thick granular-carbon packed-bed design to deliver the best-performing Can-Filter on the market. Even with the industry’s thickest 2.5 in carbon bed, the Can Original maintains minimal pressure drops. This hefty granular carbon bed effectively makes the Can Original a massive sponge, soaking up VOCs and capable of holding massive amounts of contaminant. The Original Can-Filter® is designed for the control of VOCs (paint fumes, hydrocarbons, etc.), odors, and other gaseous contaminants. Rated at a conservative 0.1 sec contact time, the Original Can-Filter® provides excellent value and confidence.
Technical Details
- Max Exhaust CFM: 1260 CFM / 2100 m³h @ 0.1 sec contact time
- Max Recirculating (Scrubbing) CFM: 2520 CFM / 4200 m³h
- Recommended Min Airflow: 630 CFM / 1056 m³/h
- Prefilter: Yes
- Flange: 10″, 12″, 14″
- Dimensions: (with pre-filter)
- Outside Diameter: 42cm / 16.5″
- Height: 150cm / 60″
- Carbon Bed Depth: 6.5cm / 2.56″
- Max Operating Temp: 80ºC
- Pressure drop at max CFM: 180pa/ .75″wg
